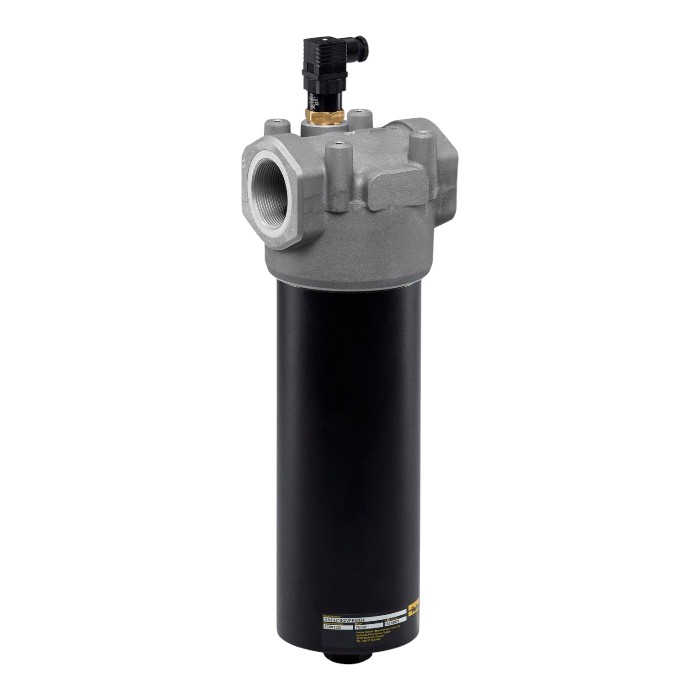

Parker medium pressure hydraulic oil line filter GMF3220QIVPKG244
Medium pressure filter GMF (iProtect) | 270 l/min | G1½ | 20 µm absolute
As a global leader, Parker offers a comprehensive technology portfolio for filtration, separation, cooling and adsorption in compressed air and gas treatment
Parker Medium-pressure hydraulic oil line filter GMF3220QIVPKG244, GMF series (iProtect) (0 to 270 l/min, G1½, 20 µm)
Inline filter from the Parker GMF series for the medium pressure circuit up to 70 bar.
Data for this variant: 0 to 270 l/min; connection G1½; 20 µm. Further key data: Filter medium 20QI (Quantumfiber™); bypass 3.5 bar; indicator closed with steel plug; fluoroelastomer seal; standard drain option on the bell.
Full-flow or bypass installation in hydraulic power units and machine tools.
| Flow rate (l/min) | 0 to 270 |
| Filter element | 20QI (Quantumfiber™) |
| Connection type | G1½ |
| Options | Standard drain on the bell |
| Bypass valve Pressure range (bar) | 3,5 |
| Filter fineness (micrometres) | 20 |
| Indicator type | Plugged with steel plug |
| Seal material | Fluoroelastomer |
