KAESER Filter Basic model F9KB G 3/8", Float drain
Volume flow: 0.90 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Product no. :
MDM500273683Category :
Compressed Air FiltersWeight :
3.30 kgDelivery area :
DeutschlandThe KAESER coalescence filter Basic offers reliable filtration of solid and liquid aerosols as well as solid particles in compressed air systems. Its effective technology protects downstream equipment from harmful contaminants and ensures high air quality.
| Volume flow (m³/min) | 0,90 |
| Compressed air inlet connection | G 3/8" |
| Differential pressure in new condition | < 0,03 |
| Differential pressure at saturation | < 0,14 |
| Residual aerosol content | < 0,1 |
| Min. overpressure | 2 bar |
| Max. Overpressure | 16 bar |
| Weight (kg) | 3,6 |
| Width (mm) | 121 |
| Height (mm) | 274 |
| Depth (mm) | 91 |
| Condensate drain | Float |
| Degree of filtration | KB - Coalescence filter Basic |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[MDM500010930] KAESER Filter Basic model F9KB G 3/8", ECO-DRAIN 30](/web/image/product.template/262356/image_128/%5BMDM500010930%5D%20KAESER%20Filter%20Basic%20model%20F9KB%20G%203-8%22%2C%20ECO-DRAIN%2030?unique=3070bb8)
|
Volume flow: 0.90 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³ |
616.72 € | |

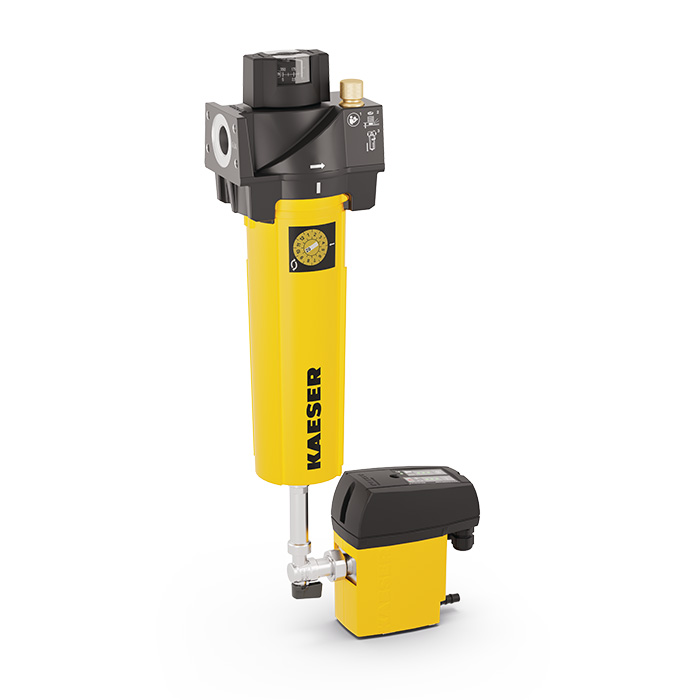

![[MDM500010934] KAESER Filter Basic model F9KB G 3/8", ECO-DRAIN 31F](/web/image/product.template/262357/image_128/%5BMDM500010934%5D%20KAESER%20Filter%20Basic%20model%20F9KB%20G%203-8%22%2C%20ECO-DRAIN%2031F?unique=289b3ea)
|
Volume flow: 0.90 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³ |
680.98 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[405341.0] KAESER mounting KIT connecting flange KF1.2](/web/image/product.template/226068/image_128/%5B405341.0%5D%20KAESER%20mounting%20KIT%20connecting%20flange%20KF1.2?unique=f2ef80c)
|
Assembly kit / connection kit for 2 KAESER compressed air filters |
38.20 € | |
![[4E0519.0] KAESER KIT wall holder filter KF1.2](/web/image/product.template/226190/image_128/%5B4E0519.0%5D%20KAESER%20KIT%20wall%20holder%20filter%20KF1.2?unique=f2ef80c)
|
KIT Wall bracket for KAESER compressed air filters |
85.68 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[901501.0] KAESER Filter element E9KB](/web/image/product.template/16494/image_128/%5B901501.0%5D%20KAESER%20Filter%20element%20E9KB%20%20?unique=01a6b32)
|
Filter element for KAESER Filter Basic model F9KB |
208.25 € | |
