FILTREC hydraulic filter element (pressure filter) XD400G03A
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable

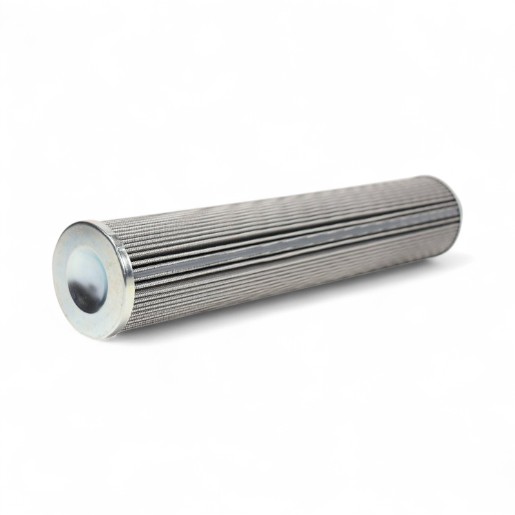

FILTREC pressure filter XD400G03A - glass fiber, 5µm
The FILTREC filter element for pressure filter XD400G03A with glass fiber filter medium, 5µm filter fineness, NBR seal and max. 21 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| max. differential pressure (bar) | 21 |
| Outer diameter (mm) | 78 |
| Height (mm) | 397 |
| Inner diameter (mm) | 40.5 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß<4=200 / ß5=1000 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -30°C to +100°C |
| A | 78 mm |
| B | 40.5 |
| C | 397 |
