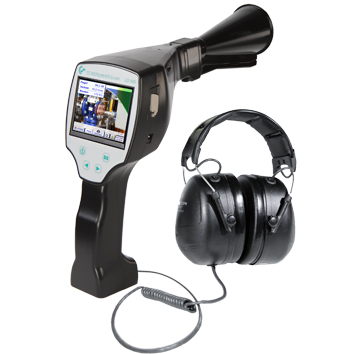

CS INSTRUMENTS Leak detector LD 500 in case
As a leading manufacturer of compressed air measurement technology, CS INSTRUMENTS stands for highest quality and innovation. "Made in Germany" is our practice - development, production, and calibration take place exclusively in Germany
Ultrasonic leakage camera - 30 MEMS microphones, 3.5" touchscreen
The CS Instruments UltraCam LD 500 makes compressed air leaks visible: 30 MEMS microphones visualize every leak directly in the live camera image on the 3.5" touchscreen. The distance and leakage rate are automatically determined by laser and displayed in €/year. Data logger with 16 GB (100 million measured values), paperless report in accordance with ISO 50001.
Application areas
The LD 500 is suitable for regular leak detection in compressed air systems - from small workshops to large production halls. Ready for immediate use in the case set with all accessories. We also recommend the Consumption measurement to monitor success. Accessories can be found at FILCOM.
| Power supply | Internally rechargeable Li-Ion batteries approx. 9 h continuous operation, 4 h charging time |
| EMC | DIN EN 61326 |
| Operating temperature (°C) | -5...+50 °C |
| Connection | 3.5 mm jack plug for headphones, power supply socket for connecting an external charger |
| Operating frequency | 40 kHz ± 2 kHz |
| Laser | Wavelength: 630...660 nm, output power: < 1 mW (laser class 2) |
| Display | 3.5″ touchscreen |
| Interface | USB interface |
| Data logger | 16 GB SD memory card (100 million values) |
| Auto level | Automatically adjusts the sensitivity to the environment and reliably blocks out ambient noise |
| Sensitivity | min: 0.1 l/min at 6 bar, 5 m distance, approx. 1 €/year Compressed air costs |
