Leak detection compressed air - leak detectors & leak cameras

Find compressed air leaks with ultrasonic leak detection - LeakCam 600, LD 500/510 & LD 450

Compressed air leaks are the biggest energy guzzler in many companies - and often you don't even hear them. The leak detectors from CS Instruments put an end to the invisible burning of money: The brand new LeakCam 600 with 64 MEMS microphones and patented Power Beam Forming algorithm detects compressed air leaks at a distance of up to 20 meters - even several at the same time. The proven UltraCam LD 500/510 visualizes every compressed air leak directly in the camera image with automatic cost calculation in €/year. To get you started with leak detection, the LD 450 leak detector for compressed air offers everything you need in a case set. All leak detectors enable paperless documentation in accordance with ISO 50001 - from ultrasonic leak detection to the finished report.

Finding and eliminating compressed air leaks - the fastest way to lower energy costs

How much do compressed air leaks really cost?

The figures are sobering: 20 to 30 percent of the compressed air produced in most companies escapes unused due to leaks - at connections, hoses, couplings and valves. With a 50 kW compressor, this quickly adds up to 10,000 to 15,000 euros in unnecessary electricity costs per year. Professional leak detection in the compressed air system therefore often pays for itself after just a few weeks. The leak detectors from CS Instruments not only show you where the compressed air leak is located, but also what it costs - in liters per minute and euros per year. This means that maintenance finally has clear figures for prioritization. With a Flow meter you can then directly measure the success of your leakage elimination.

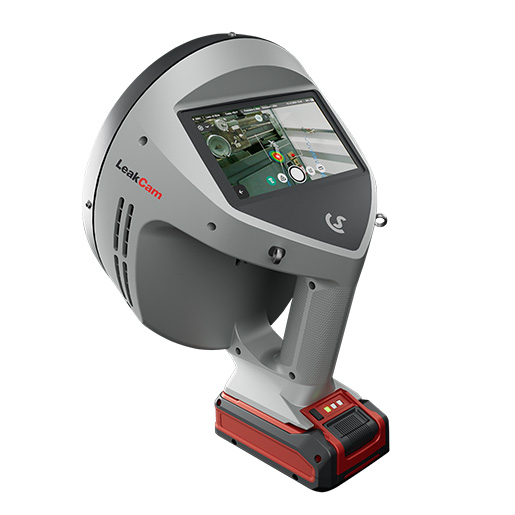

LeakCam 600 - the innovation from the Black Forest for compressed air leak detection

The LeakCam 600 is the latest leak detector from CS Instruments and sets new standards worldwide. With 64 MEMS microphones (frequency range 2-80 kHz) and the patented Power Beam Forming algorithm, this leak detector for compressed air detects even the smallest leaks from up to 20 meters away - and displays several compressed air leaks simultaneously. The 5" touchscreen display with 13 MP camera makes ultrasonic leak detection as easy as taking a photo. The integrated laser distance measurement automatically calculates the leakage rate and annual costs. 8 hours battery life, one-handed operation, reports in accordance with ISO 50001 - developed and manufactured in VS-Tannheim.

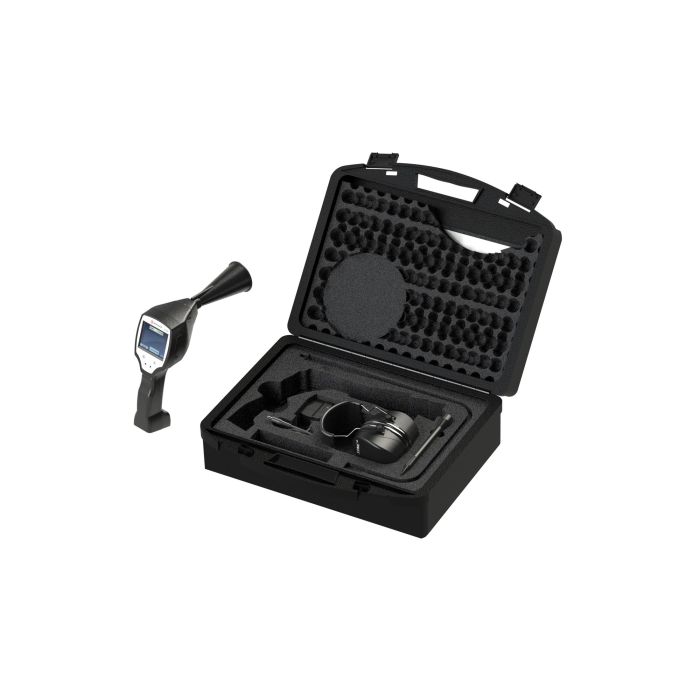

UltraCam LD 500/510 & LD 450 - proven leak detectors for every budget

The UltraCam LD 500/510 uses 30 MEMS microphones to visualize compressed air leaks directly in the live image - even in noisy production halls. The distance and leakage rate are automatically determined by laser. The LD 450 is the proven entry-level model for ultrasonic leak detection in a practical case set. All CS Instruments leak detectors support paperless documentation: photo, location, action and spare part requirements are entered directly on the device. The result is a complete leakage report in accordance with ISO 50001 - without additional software or paperwork. We also recommend monitoring with a Screen recorder DS 500 and Pressure sensors at critical points.
