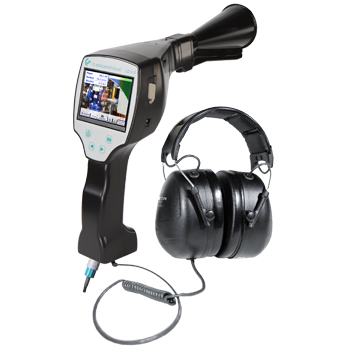

CS INSTRUMENTS Leak detector LD 510 in case set consisting of:

Price:

4,650.52 €

English (US)
  2. Shop
  3. Leak Detection
  4. CS INSTRUMENTS Leak detector LD 510 in case set consisting of:
CS INSTRUMENTS Leak detector LD 500 in case
CS INSTRUMENTS Leak detector LD 500 in case
3,829.71 € 3,829.71 €
CS INSTRUMENTS LeakCam 600 leak detector for compressed air systems
CS INSTRUMENTS LeakCam 600 leak detector for compressed air systems
13,919.43 € 13,919.43 €

CS INSTRUMENTS Leak detector LD 510 in case set consisting of:

https://www.filcom-technik.de/web/image/product.template/194754/image_1920?unique=7d9ecac

4,650.52 € 4650.52 EUR 4,650.52 € VAT Included

3,908.00 € VAT Included


Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
CS Instruments

CS Instruments

As a leading manufacturer of compressed air measurement technology, CS INSTRUMENTS stands for highest quality and innovation. "Made in Germany" is our practice - development, production, and calibration take place exclusively in Germany

Product no. :

0601 0106

Category :

Leak Detection

Weight :

3.50 kg

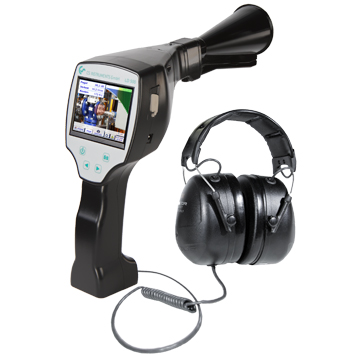

Ultrasonic leakage camera - 30 MEMS microphones, ext. probes

The CS Instruments UltraCam LD 510 offers all the functions of the LD 500 plus the option of connecting external ultrasonic probes - ideal for hard-to-reach areas. 30 MEMS microphones, 3.5" touchscreen, laser pointer, automatic cost calculation in €/year. Data logger with 16 GB (100 million measured values).

Application areas

The LD 510 is suitable for regular leak detection in compressed air systems - from small workshops to large production halls. Ready for immediate use in the case set with all accessories. We also recommend the Consumption measurement to monitor success. Accessories can be found at FILCOM.

Power supply Internally rechargeable Li-Ion batteries approx. 9 h continuous operation, 4 h charging time
EMC DIN EN 61326
Operating temperature (°C) -5...+50 °C
Connection 3.5 mm jack plug for headphones, power supply socket for connecting an external charger
Operating frequency 40 kHz ± 2 kHz
Laser Wavelength: 630...660 nm, output power: < 1 mW (laser class 2)
Display 3.5″ touchscreen
Interface USB interface
Data logger 16 GB SD memory card (100 million values)
Auto level Automatically adjusts the sensitivity to the environment and reliably blocks out ambient noise
Sensitivity min: 0.1 l/min at 6 bar, 5 m distance, approx. 1 €/year Compressed air costs
CS INSTRUMENTS Bedienungsanleitung LD500/L510
Download
CS INSTRUMENTS Datenblatt LD 500/510
Download

Accessoires and suitable extensions

Product Price

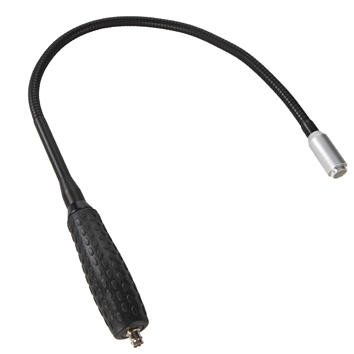

[0530 0105] CS INSTRUMENTS Gooseneck: For leak detection in hard-to-reach places 548.59 €

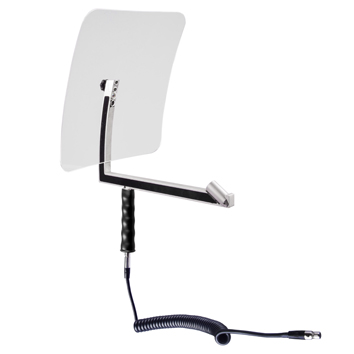

[0530 0106] CS INSTRUMENTS Parabolic mirrors 1,856.40 €
[0530 0107] CS INSTRUMENTS 500 Leak tags 129.71 €
