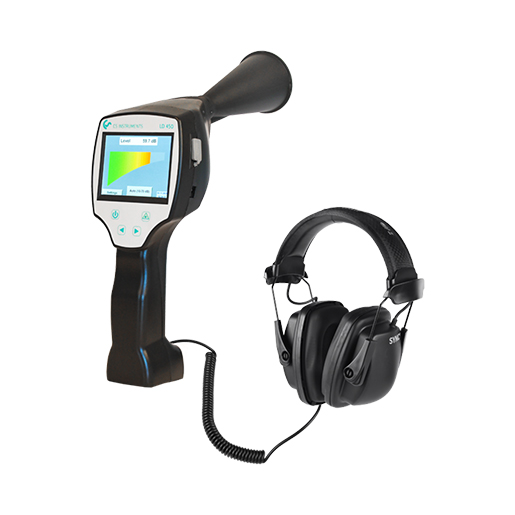

CS INSTRUMENTS LD 450 leak detector in case set
As a leading manufacturer of compressed air measurement technology, CS INSTRUMENTS stands for highest quality and innovation. "Made in Germany" is our practice - development, production, and calibration take place exclusively in Germany
Ultrasonic leak detector - 40 kHz, laser pointer, 10 h battery
The LD 450 is the proven entry-level model for ultrasonic leak detection in compressed air systems. In a practical case set with headphones, charger and accessories, it is ready for immediate use. Operating frequency 40 kHz, laser pointer for localization, over 10 hours battery life.
Application areas
The LD 450 is suitable for regular leak detection in compressed air systems - from small workshops to large production halls. Ready for immediate use in the case set with all accessories. We also recommend the Consumption measurement to monitor success. Accessories can be found at FILCOM.
| Operating frequency | 40 kHz ± 2 kHz |
| Connections | 3.5 mm jack plug for headphones. Power supply socket for connecting an external charger |
| Laser | Wavelength: 630...660 nm, output power: < 1 mW (laser class 2) |
| Operating time | > 10 hours |
| Charging time | max. 4 hours hours |
| Operating temperature (°C) | -5...+50 °C |
| Storage temperature (°C) | -20 to +60 |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

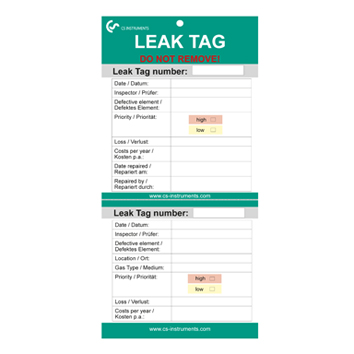

![[0530 0107] CS INSTRUMENTS 500 Leak tags](/web/image/product.template/194719/image_128/%5B0530%200107%5D%20CS%20INSTRUMENTS%20500%20Leak%20tags?unique=60ab46e)
|
129.71 € | ||
