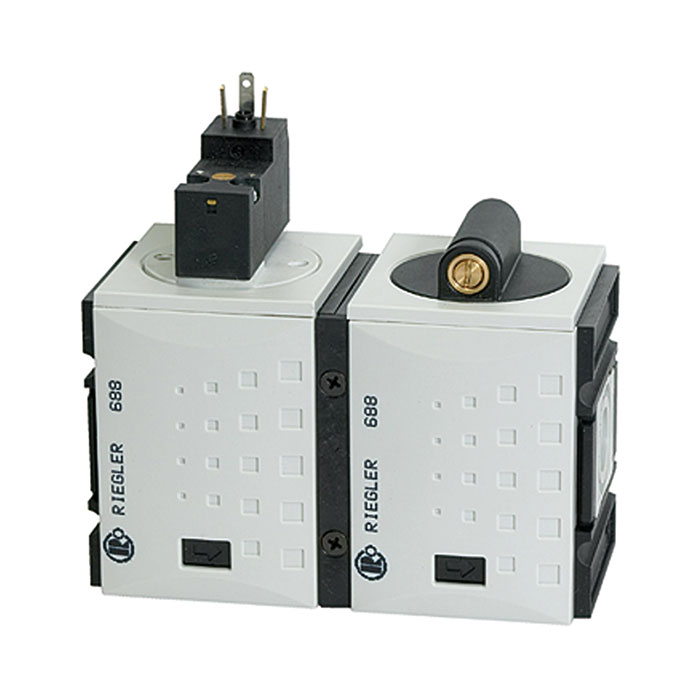

RIEGLER Filling unit »FUTURA«, electr. actuated, 230 V AC, Size 1, G 3/8
Type number: FU 918
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filling unit "FUTURA" electr. actuated with coil 230 V AC, 50 Hz, BG 1, G 3/8, exhaust air G 1/4, PE 2.5 - 10 bar, temp. -10°C to 50°C
| Inlet pressure min. | 2.5 bar |
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Duty cycle | 1 |
| Pick-up power with AC voltage 5 | 2.2 VA |
| Holding power with alternating voltage 50 | 1.6 VA |
| Power consumption | 2.5 watts with DC voltage |
| Protection class | IP 65 |
| Electrical connection | Cable plug EN 175301-803, form C, number of poles 2+PE |
| Thread | G 3/8 |
| Flow rate | 1400 l/min |
| BG | 1 |
| A | 104 mm |
| B | 117.8 mm |
| C | 84.8 mm |
| D | 33 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| Exhaust air | G 1/4 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Class name | MAX |
