RIEGLER Mist oiler »multifix-mini« Metal container, metal drip cap, G 1/8
Type number: L 05 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Mist lubricator "multifix-mini" with metal container and metal drip cap, BG 0, G 1/8, PE max. 20 bar, max. ambient temperature 60 °C
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix-mini |
| Container | Metal container |
| Dropper attachment | Zinc-glass-NBR |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/8 |
| Flow rate | 1150 l/min |
| DN | 5 |
| BG | 0 |
| A | 40 mm |
| B | 147.6 mm |
| C | 62.6 mm |
| D | 85 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

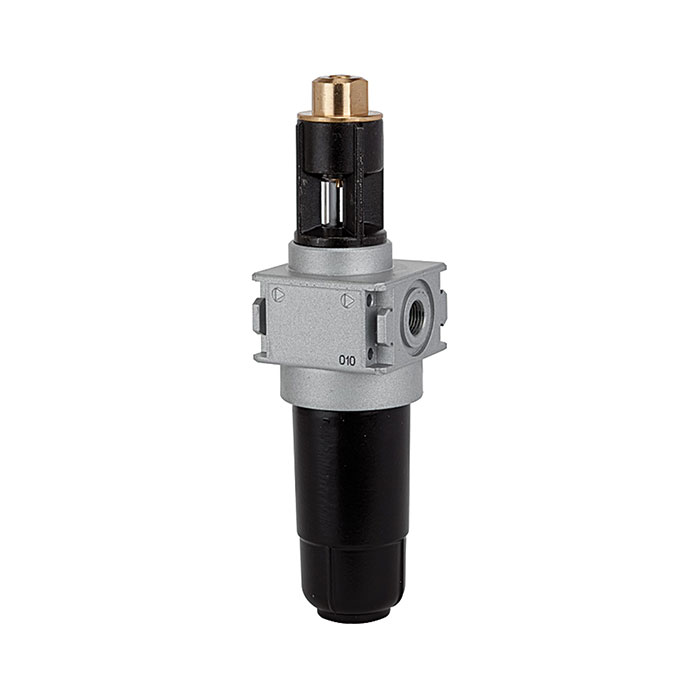

![[100390] RIEGLER Mist oiler »multifix-mini« Metal container, metal drip cap, G 1/4](/web/image/product.template/139824/image_128/%5B100390%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix-mini%C2%AB%20Metal%20container%2C%20metal%20drip%20cap%2C%20G%201-4?unique=e72575e)
|
Type number: L 06 M |
38.18 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=f58d385)
|
Type number: 32 |
34.09 € | |

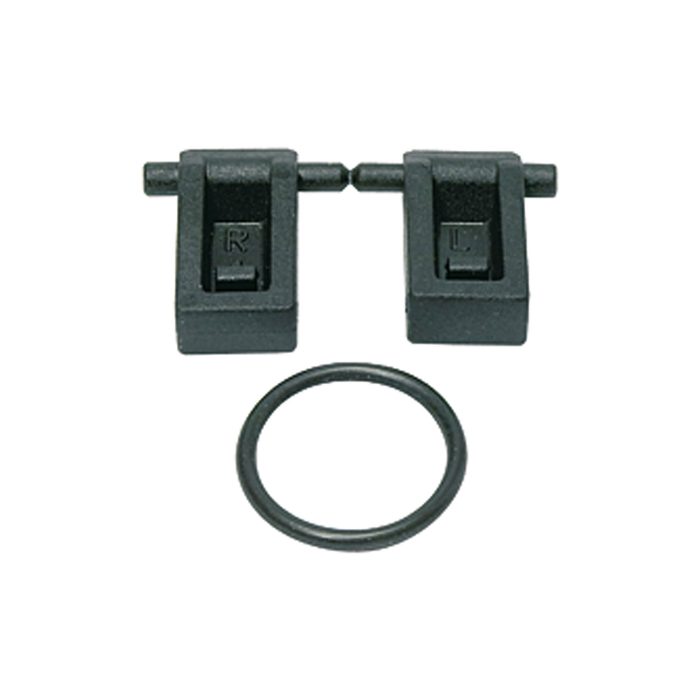

![[100346] RIEGLER Coupling package for blocking several components](/web/image/product.template/139780/image_128/%5B100346%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components?unique=bdbbbb5)
|
Type number: KP 05 |
0.92 € | |

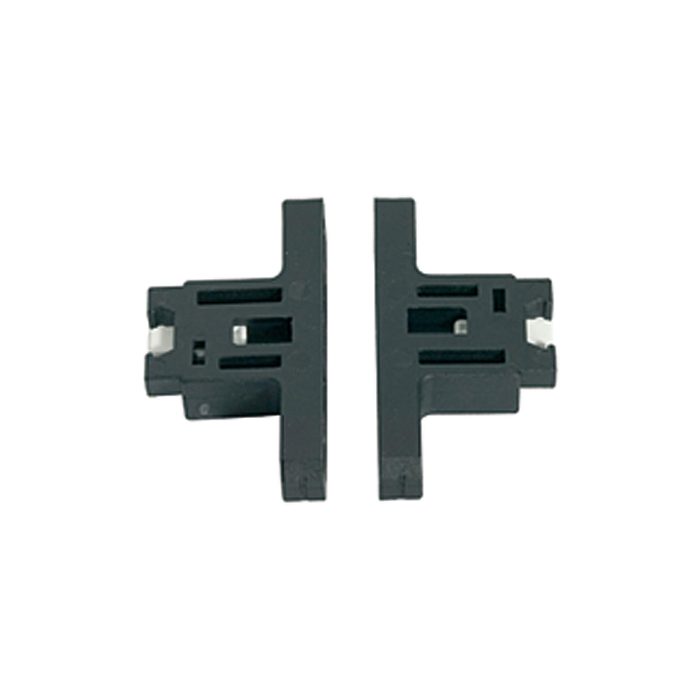

![[100367] RIEGLER Mounting set for »multifix-mini«](/web/image/product.template/139801/image_128/%5B100367%5D%20RIEGLER%20Mounting%20set%20for%20%C2%BBmultifix-mini%C2%AB?unique=3bd79e1)
|
Type number: ZW 05 |
4.03 € | |

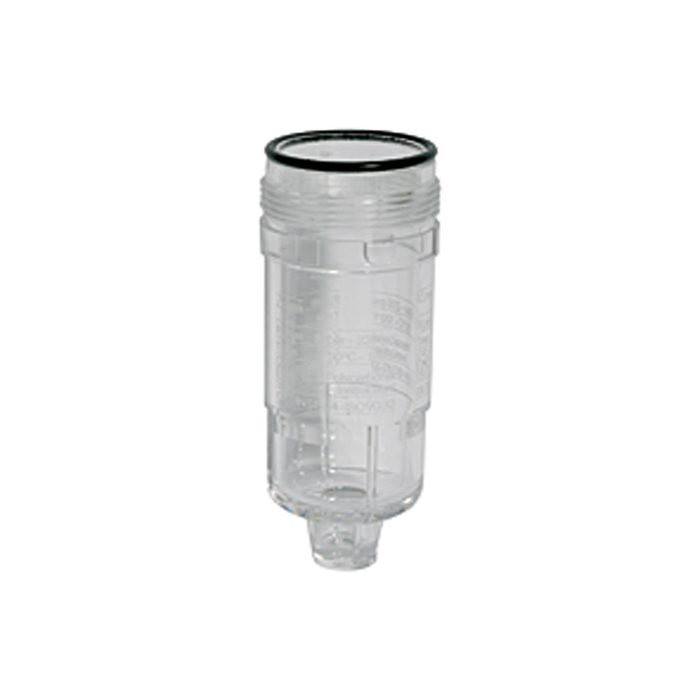

![[100383] RIEGLER Polycarbonate container incl. O-ring](/web/image/product.template/139817/image_128/%5B100383%5D%20RIEGLER%20Polycarbonate%20container%20incl.%20O-ring?unique=05af4c8)
|
Type number: 740/01 |
6.94 € | |
![[100393] RIEGLER Drip cap metal](/web/image/product.template/139827/image_128/%5B100393%5D%20RIEGLER%20Drip%20cap%20metal?unique=6ed47aa)
|
Type number: 1233.7.909 |
18.71 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

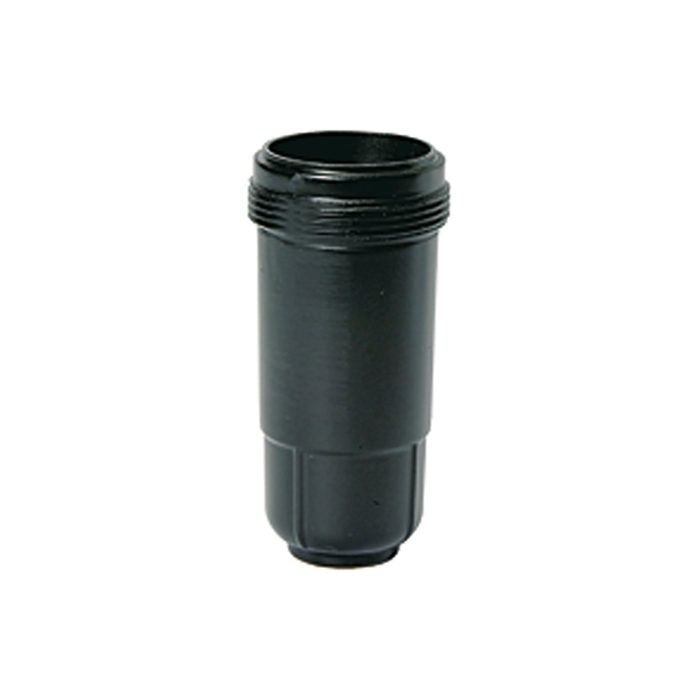

![[100391] RIEGLER Metal container incl. O-ring](/web/image/product.template/139825/image_128/%5B100391%5D%20RIEGLER%20Metal%20container%20incl.%20O-ring?unique=0c4152a)
|
Type number: 740/11 |
14.29 € | |
