RIEGLER Filter regulator »multifix«, 5 µm, Size 3, G 3/4, 0.5 - 10 bar
Type number: C 34 M-SR
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Filter regulator "multifix" made of die-cast zinc, for compressed air treatment, 0.5 bar - Type C 34 M-SR
The RIEGLER filter regulator "multifix", metal bowl and sight tube, BG 3, G 3/4 combines compressed air filtration and pressure regulation in one compact device. The housing is made of die-cast zinc with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 20 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 3/4 - suitable for common industry standards. The flow rate is 6700 l/min (at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm, container made of metal container with sight tube. Saves installation space and simplifies compressed air treatment.
Field of application
Typical areas of application: Compressed air supply in production, trade and automation.
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Metal container with sight tube |
| Filter fineness | 5 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 3/4 |
| Flow rate | 6700 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 20 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 3 |
| A | 68.8 mm |
| B | 248.2 mm |
| C | 99 mm |
| D | 149.2 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

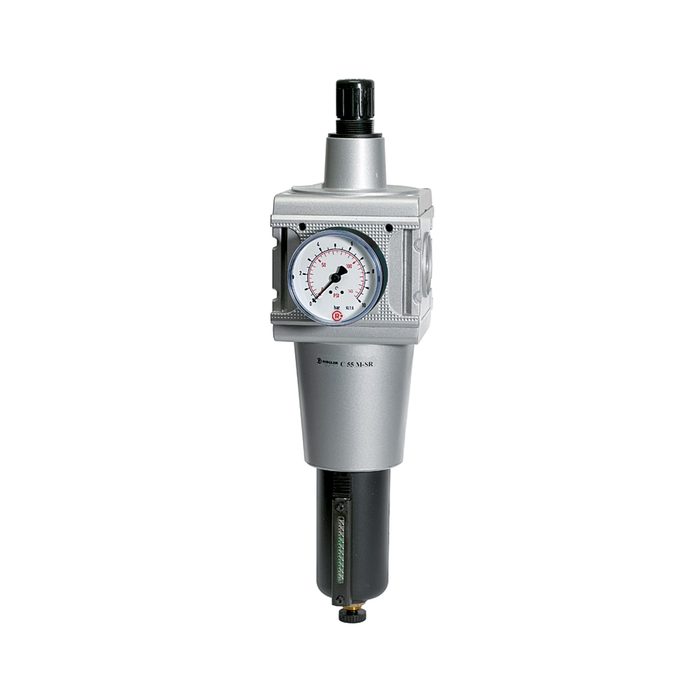

![[100497] RIEGLER Filter regulator »multifix«, 40 µm, Size 5, G 1, 0.5 - 10 bar](/web/image/product.template/139932/image_128/%5B100497%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%2040%20%C2%B5m%2C%20Size%205%2C%20G%201%2C%200.5%20-%2010%20bar?unique=2870e91)
|
Type number: C 55 M-SR |
253.62 € | |
![[100493] RIEGLER Filter regulator »multifix«, 5 µm, Size 1, G 1/4, 0.5 - 10 bar](/web/image/product.template/139928/image_128/%5B100493%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%2010%20bar?unique=a926a66)
|
Type number: C 11 M-SR |
69.89 € | |
![[100494] RIEGLER Filter regulator »multifix«, 5 µm, Size 1, G 3/8, 0.5 - 10 bar](/web/image/product.template/139929/image_128/%5B100494%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%2010%20bar?unique=48108f6)
|
Type number: C 12 M-SR |
69.89 € | |

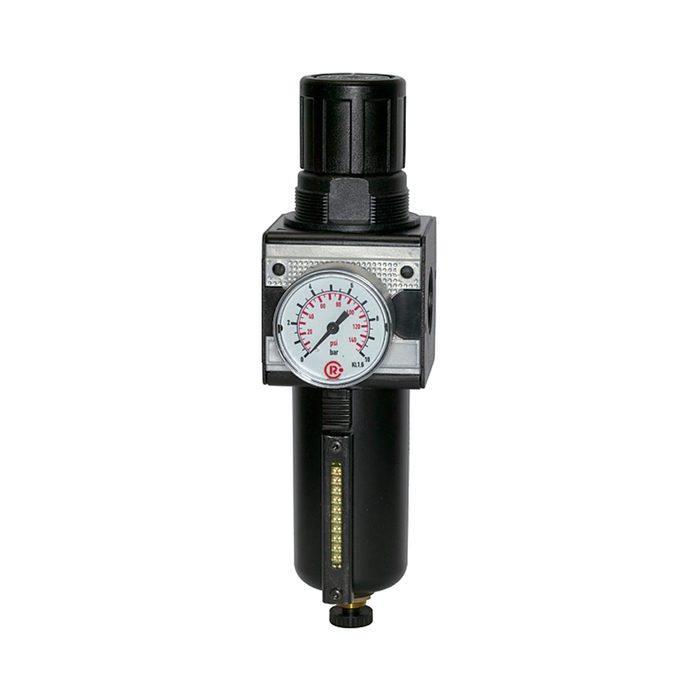

![[100495] RIEGLER Filter regulator »multifix«, 5 µm, Size 3, G 1/2, 0.5 - 10 bar](/web/image/product.template/139930/image_128/%5B100495%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%201-2%2C%200.5%20-%2010%20bar?unique=5284c42)
|
Type number: C 33 M-SR |
92.93 € | |

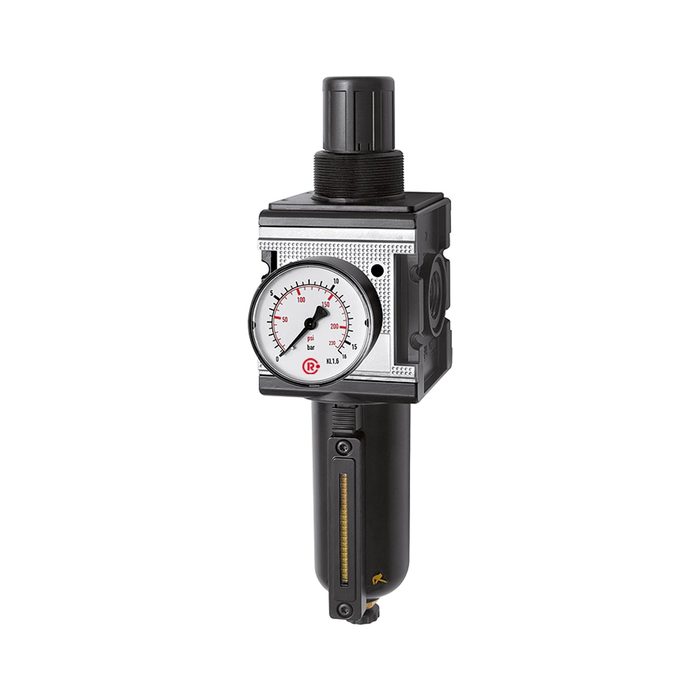

![[133110] RIEGLER Filter regulator »multifix«, 5 µm, Size 4, G 1, 0.5 - 10 bar](/web/image/product.template/202760/image_128/%5B133110%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%204%2C%20G%201%2C%200.5%20-%2010%20bar?unique=b03cdb5)
|
Type number: C 45 M-SR-10 |
216.85 € | |
![[133109] RIEGLER Filter regulator »multifix«, 5 µm, Size 4, G 3/4, 0.5 - 10 bar](/web/image/product.template/202759/image_128/%5B133109%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%204%2C%20G%203-4%2C%200.5%20-%2010%20bar?unique=c3eb01a)
|
Type number: C 44 M-SR-10 |
216.85 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

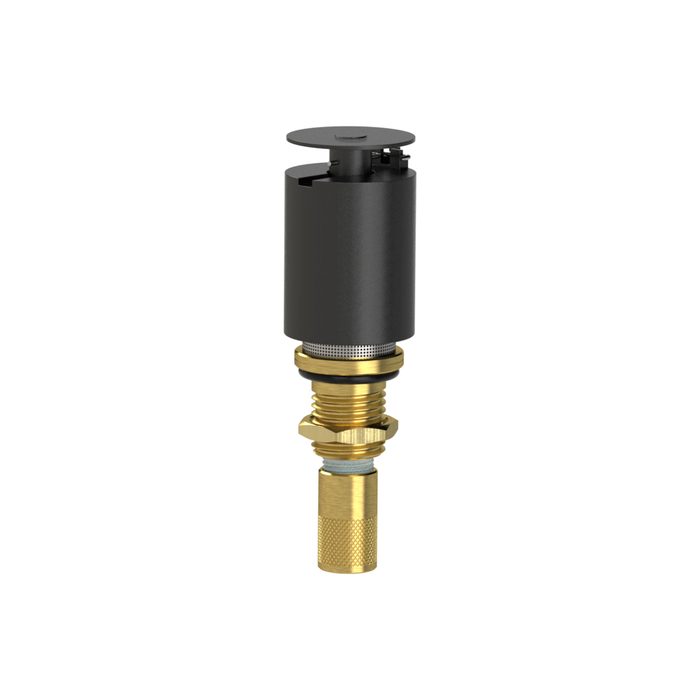

![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=1c1de20)
|
Type number: 655.6.900 |
36.35 € | |

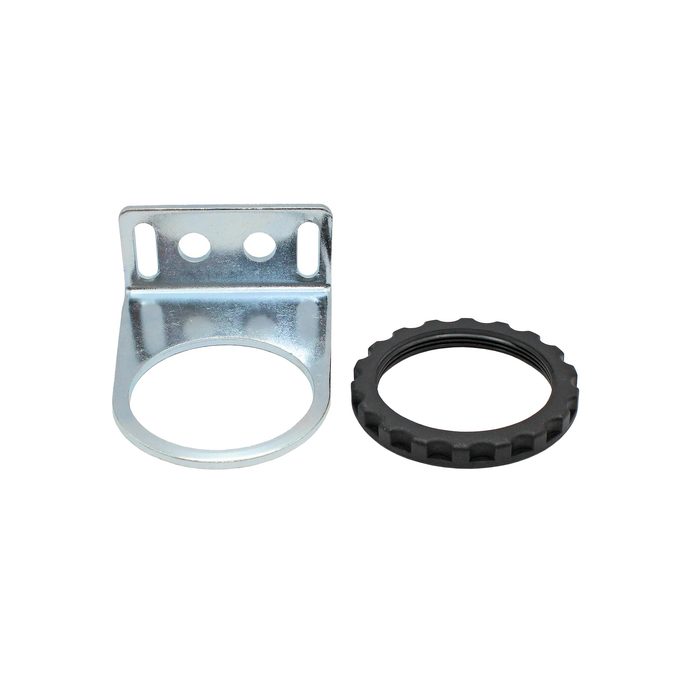

![[100439] RIEGLER Mounting bracket with nut M50x1.5, for »multifix«, Size 3](/web/image/product.template/139873/image_128/%5B100439%5D%20RIEGLER%20Mounting%20bracket%20with%20nut%20M50x1.5%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203?unique=38859f9)
|
Type number: MV 50 |
5.20 € | |

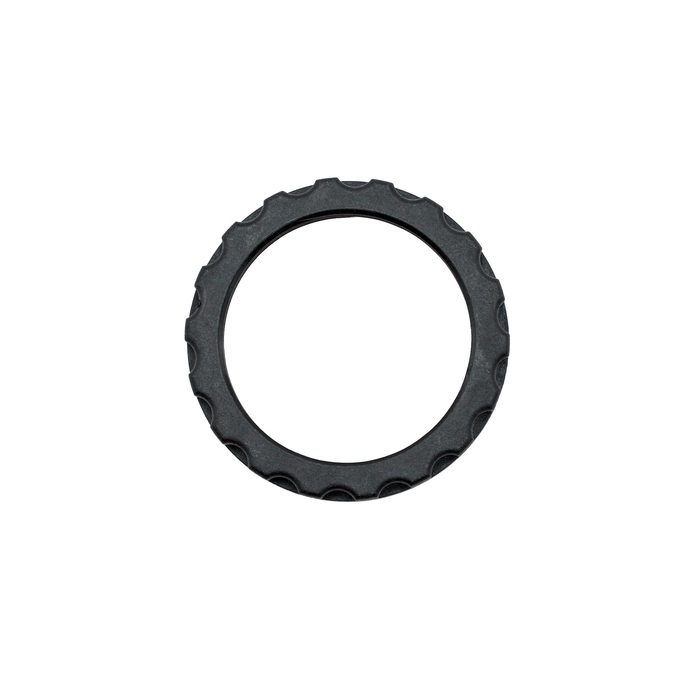

![[100440] RIEGLER Control panel nut M50x1.5, for »multifix«, Size 3, G 1/2, G 3/4](/web/image/product.template/139874/image_128/%5B100440%5D%20RIEGLER%20Control%20panel%20nut%20M50x1.5%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2%2C%20G%203-4?unique=da606a0)
|
Type number: R 33-55 |
1.80 € | |

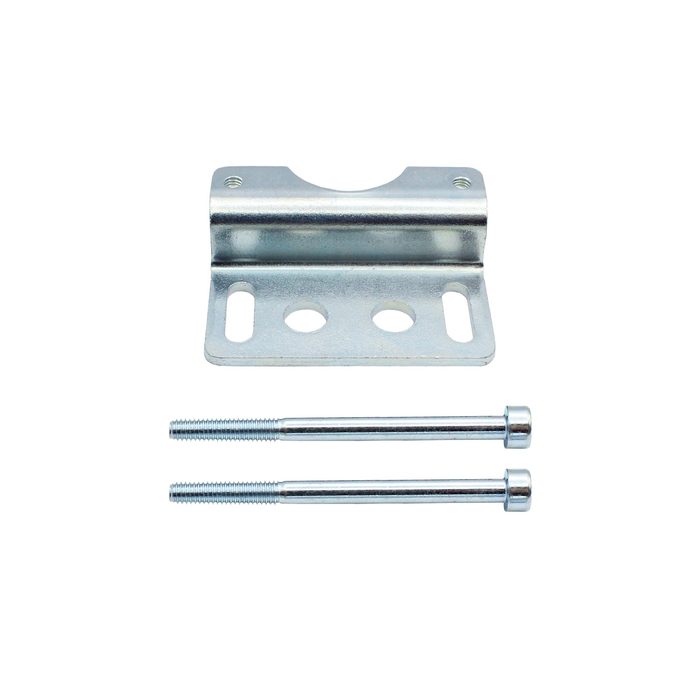

![[100441] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 3, G 1/2, G 3/4](/web/image/product.template/139875/image_128/%5B100441%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2%2C%20G%203-4?unique=5da46f4)
|
Type number: ZW 33 |
5.00 € | |

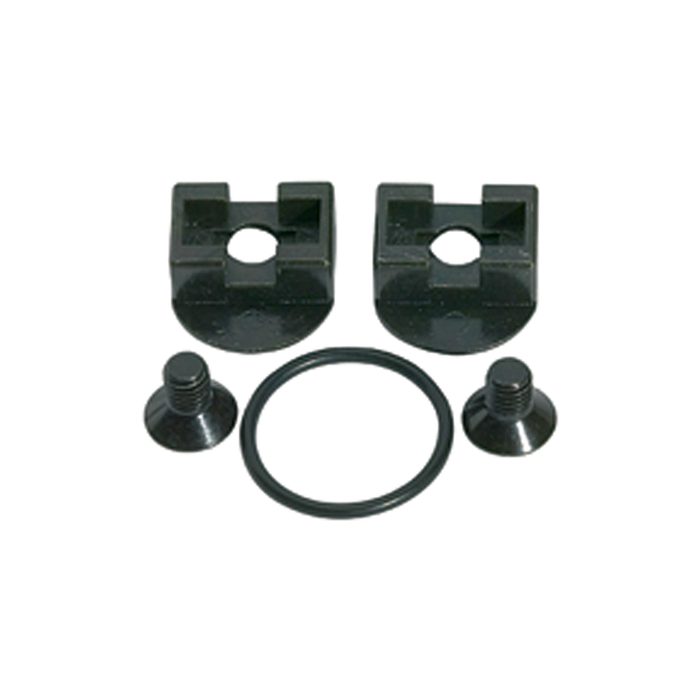

![[100442] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139876/image_128/%5B100442%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=59ba8a0)
|
Type number: KP 33 |
2.01 € | |

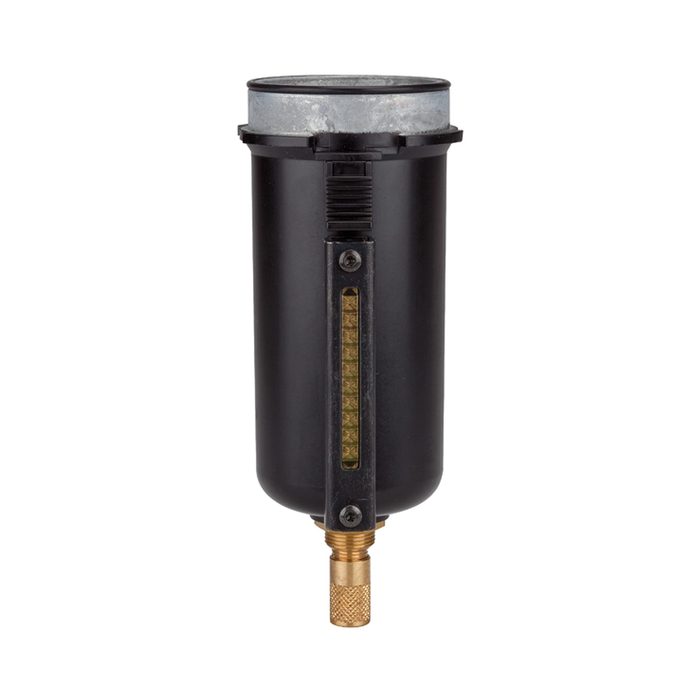

![[100503] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139938/image_128/%5B100503%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=739dd35)
|
Type number: MS 33 FS-A |
74.97 € | |

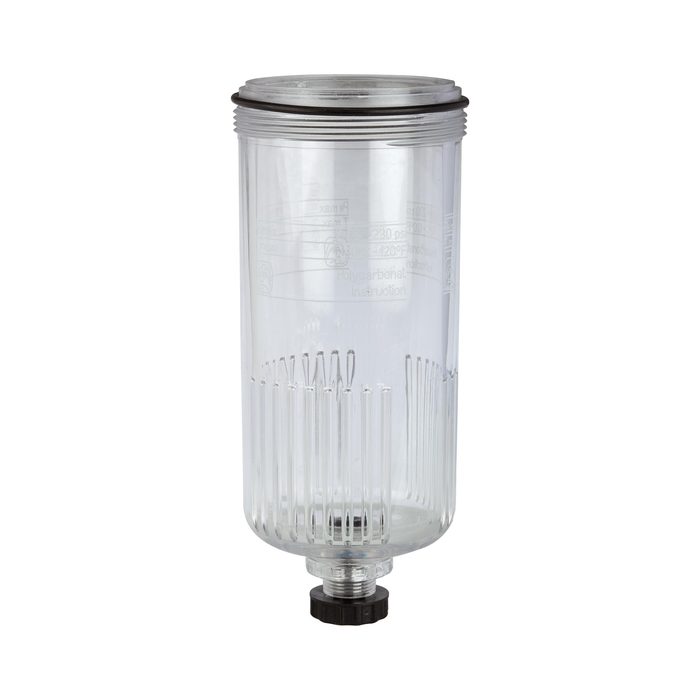

![[100504] RIEGLER Polycarbonate container, incl. O-ring](/web/image/product.template/139939/image_128/%5B100504%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring?unique=28c9098)
|
Type number: KS 33 F-HA |
14.14 € | |

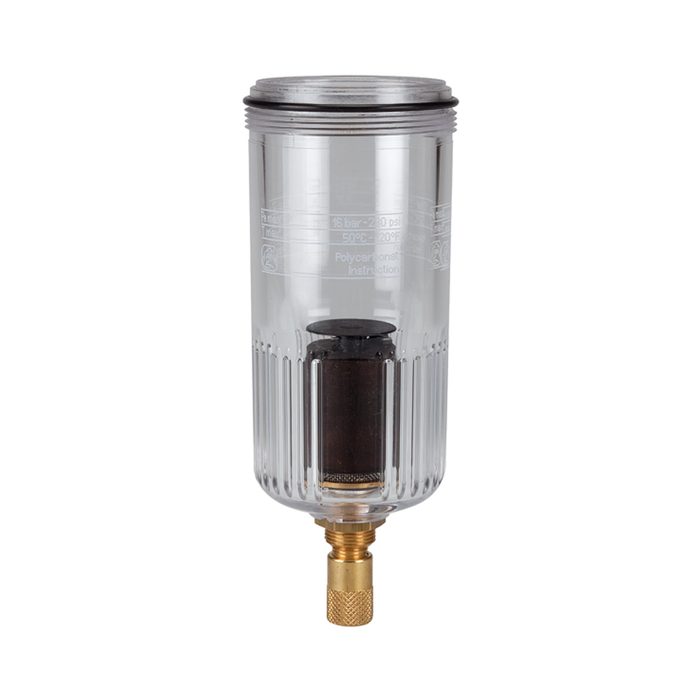

![[100505] RIEGLER Polycarbonate container, incl. O-ring](/web/image/product.template/139940/image_128/%5B100505%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring?unique=edf95ef)
|
Type number: KS 33 F-A |
45.98 € | |

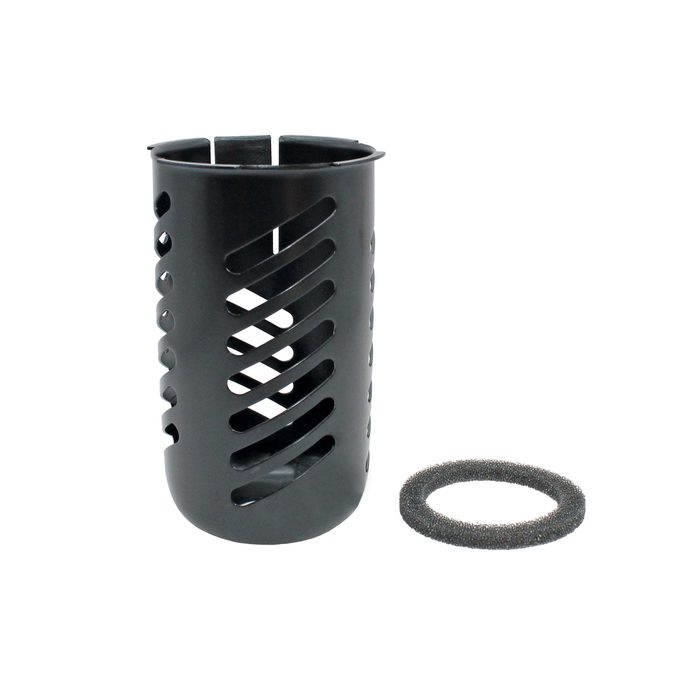

![[100506] RIEGLER Protective cage, for »multifix«, Size 3 and Size 5](/web/image/product.template/139941/image_128/%5B100506%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203%20and%20Size%205?unique=0c665f4)
|
Type number: SK 33 |
10.91 € | |

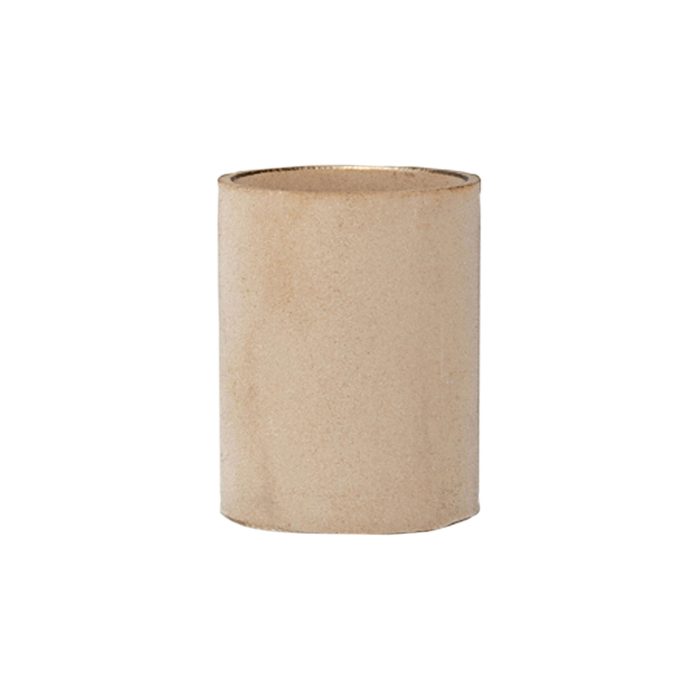

![[100983] RIEGLER Filter element 8 µm, Sint. bronze, Size 3 »Standard«, »multifix«](/web/image/product.template/140419/image_128/%5B100983%5D%20RIEGLER%20Filter%20element%208%20%C2%B5m%2C%20Sint.%20bronze%2C%20Size%203%20%C2%BBStandard%C2%AB%2C%20%C2%BBmultifix%C2%AB?unique=9c5581f)
|
Type number: 653.6.908 |
16.04 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

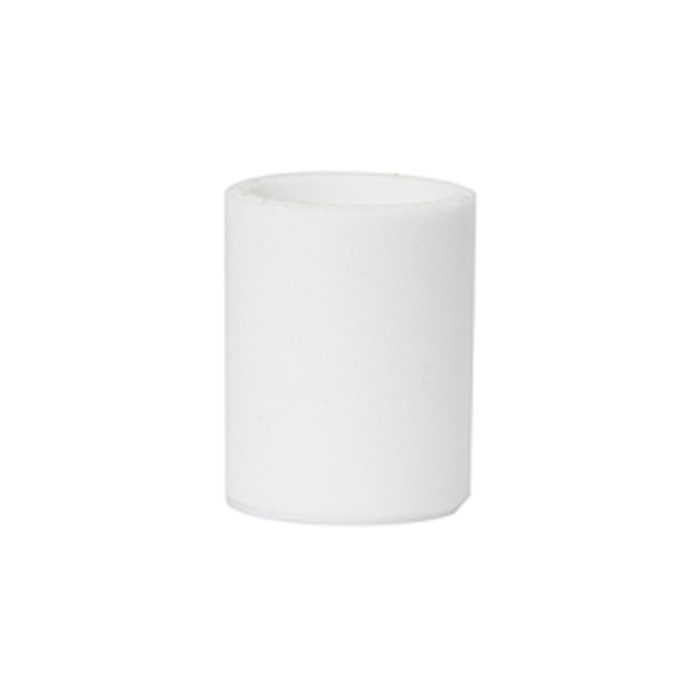

![[100507] RIEGLER Filter element 5 µm, Cellpor, for »multifix« and »Standard«](/web/image/product.template/139942/image_128/%5B100507%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20Cellpor%2C%20for%20%C2%BBmultifix%C2%AB%20and%20%C2%BBStandard%C2%AB?unique=b431bc8)
|
Type number: 633.6.905 |
13.89 € | |
![[100502] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139937/image_128/%5B100502%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=67b6dad)
|
Type number: MS 33 FS |
34.69 € | |
![[101678] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169650/image_128/%5B101678%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=3622201)
|
Type number: 207-KD |
6.25 € | |

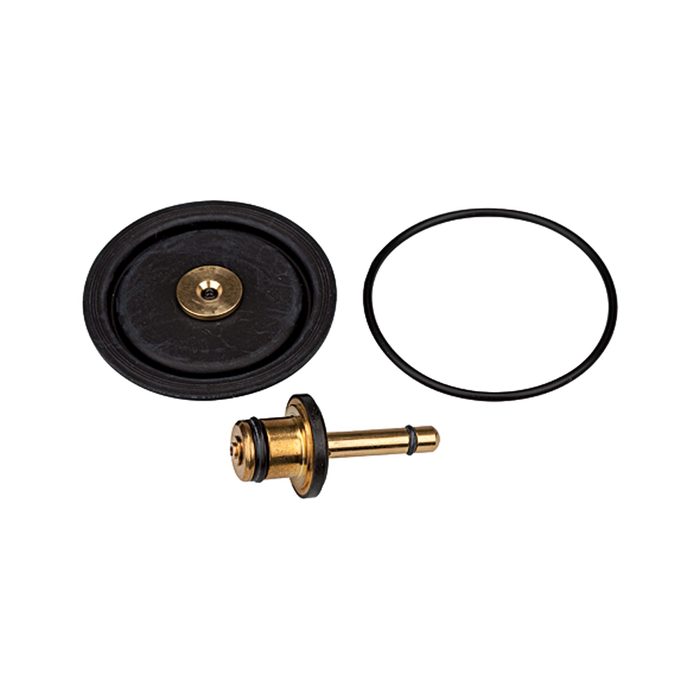

![[100444] RIEGLER Wear part set incl. membrane, Valve cone and O-ring 50x2](/web/image/product.template/139878/image_128/%5B100444%5D%20RIEGLER%20Wear%20part%20set%20incl.%20membrane%2C%20Valve%20cone%20and%20O-ring%2050x2?unique=50a29e4)
|
