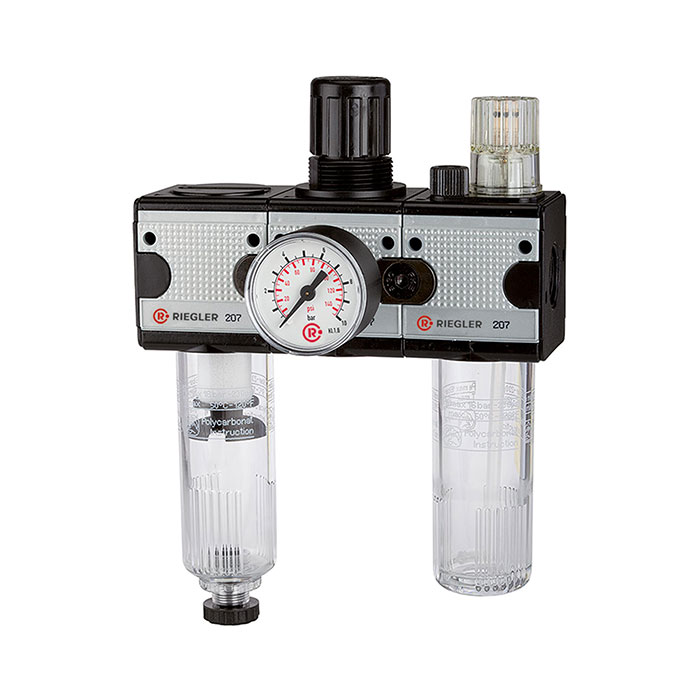

RIEGLER Service unit 3-part »multifix« with PC container, Size 5, G 1
Type number: FRL 55 K-HA
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3-piece "multifix" maintenance unit made of aluminum, for compressed air preparation - type FRL 55 K-HA
The RIEGLER maintenance unit 3-piece "multifix", with PC container, BG 5, G 1 combines compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of aluminum with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1 - suitable for common industry standards. The flow rate is 13500 l/min (at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar). Filter fineness 40 µm, tank made of polycarbonate container. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure max. | 16 bar |
| Housing | Aluminum |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Polycarbonate container |
| Filter fineness | 40 µm |
| Dropper attachment | PA |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 1 |
| Flow rate | 13500 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 25 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 5 |
| A | 300 mm |
| B | 381.8 mm |
| C | 128 mm |
| D | 253.8 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6b, 6b-I, 6b-II, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| REACH SVHC2 Substance Name | Melamine |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100581] RIEGLER Service unit 3-part »multifix« with PC container, Size 1, G 1/4](/web/image/product.template/140016/image_128/%5B100581%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%20with%20PC%20container%2C%20Size%201%2C%20G%201-4?unique=2ded9eb)
|
Type number: FRL 11 K-HA |
97.04 € | |
![[100582] RIEGLER Service unit 3-part »multifix« with PC container, Size 1, G 3/8](/web/image/product.template/140017/image_128/%5B100582%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%20with%20PC%20container%2C%20Size%201%2C%20G%203-8?unique=6e16fdd)
|
Type number: FRL 12 K-HA |
98.88 € | |
![[100583] RIEGLER Service unit 3-part »multifix« with PC container, Size 3, G 1/2](/web/image/product.template/140018/image_128/%5B100583%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%20with%20PC%20container%2C%20Size%203%2C%20G%201-2?unique=2d7780b)
|
Type number: FRL 33 K-HA |
145.14 € | |
![[100584] RIEGLER Service unit 3-part »multifix« with PC container, Size 3, G 3/4](/web/image/product.template/140019/image_128/%5B100584%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBmultifix%C2%AB%20with%20PC%20container%2C%20Size%203%2C%20G%203-4?unique=3fb38d3)
|
Type number: FRL 34 K-HA |
145.14 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101398] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169372/image_128/%5B101398%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=3ba54a4)
|
Type number: 218-KD |
6.25 € | |
![[100392] RIEGLER Drip cap polyamide PA, Thread M24x1.5](/web/image/product.template/139826/image_128/%5B100392%5D%20RIEGLER%20Drip%20cap%20polyamide%20PA%2C%20Thread%20M24x1.5?unique=c54de14)
|
Type number: 1233.7.990 |
9.48 € | |

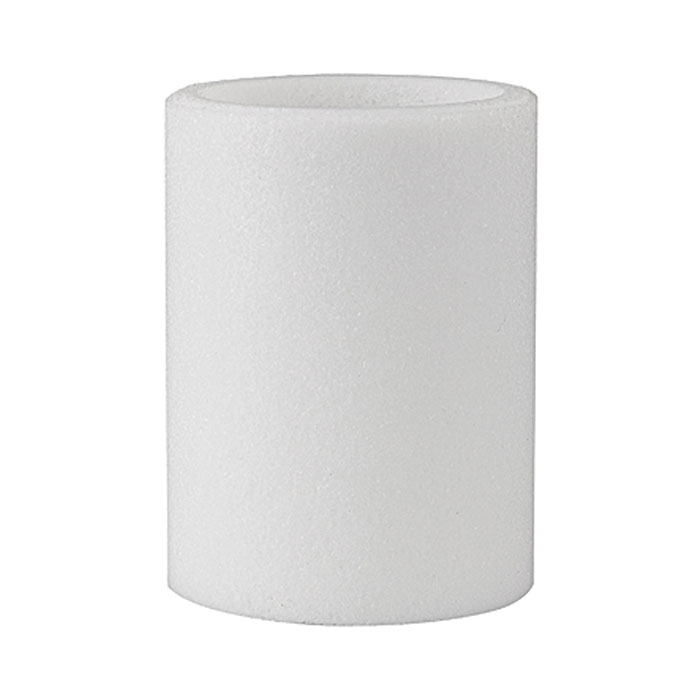

![[100511] RIEGLER Filter element 40 µm, Cellpor, for »multifix« and »Standard«](/web/image/product.template/139946/image_128/%5B100511%5D%20RIEGLER%20Filter%20element%2040%20%C2%B5m%2C%20Cellpor%2C%20for%20%C2%BBmultifix%C2%AB%20and%20%C2%BBStandard%C2%AB?unique=773f0cd)
|
Type number: 655.6.940 |
21.00 € | |

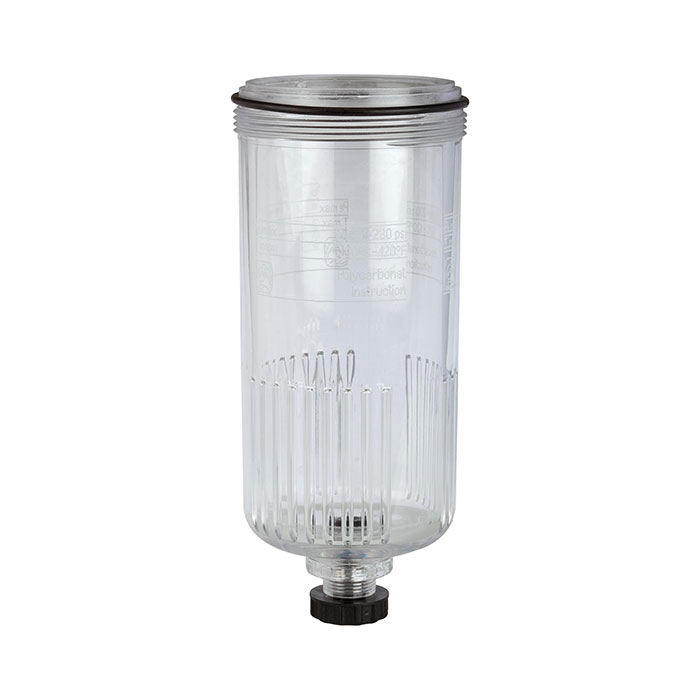

![[100504] RIEGLER Polycarbonate container, incl. O-ring](/web/image/product.template/139939/image_128/%5B100504%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring?unique=24ed19a)
|
Type number: KS 33 F-HA |
14.14 € | |
![[100548] RIEGLER Polycarbonate container, incl. O-ring, for »multifix«, Size 3+5](/web/image/product.template/139983/image_128/%5B100548%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203%2B5?unique=2640589)
|
Type number: KS 33 N |
11.90 € | |
![[100509] RIEGLER Wear part set](/web/image/product.template/139944/image_128/%5B100509%5D%20RIEGLER%20Wear%20part%20set?unique=a6cbb27)
|
Type number: 22.355.4 |
86.10 € | |

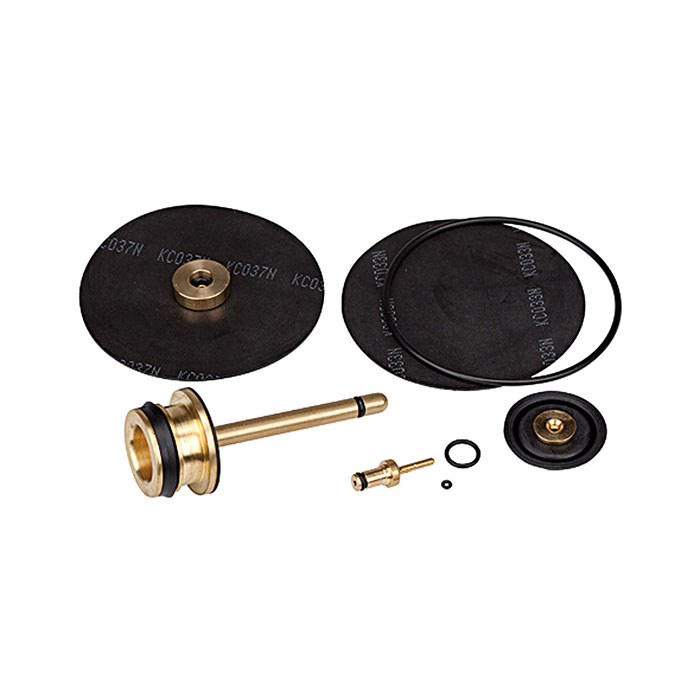

![[100447] RIEGLER Wear part set incl. membrane, Valve cone and O-ring 81x2](/web/image/product.template/139881/image_128/%5B100447%5D%20RIEGLER%20Wear%20part%20set%20incl.%20membrane%2C%20Valve%20cone%20and%20O-ring%2081x2?unique=db0515d)
|
