RIEGLER Service unit 3-part »Standard«, Metal container, Size 1, G 1/4
Type number: 845 B/M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Wartungseinheit 3-tlg. »Standard«, Metallbehälter und Tropfaufsatz Metall, BG 1, G 1/4, PE max. 25 bar, Regelbereich 0,5 - 16 bar
| Inlet pressure max. | 25 bar |
| Housing | Die-cast zinc / aluminum, painted silver |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Metal container |
| Filter fineness | 5 µm |
| Dropper attachment | Zinc-glass-NBR |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/4 |
| Flow rate | 600 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 16 bar |
| Condensate drain | manually |
| DN | 6 |
| Pressure gauge Ø | 50 mm |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 25 bar |
| BG | 1 |
| A | 172 mm |
| B | 184.5 mm |
| C | 51 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[129495] RIEGLER 3-piece "Standard" maintenance unit with metal container, BG 2, G 3/8](/web/image/product.template/267880/image_128/%5B129495%5D%20RIEGLER%203-piece%20%22Standard%22%20maintenance%20unit%20with%20metal%20container%2C%20BG%202%2C%20G%203-8?unique=095e6a8)
|
Type number: 850 B/M.2 |
157.13 € | |

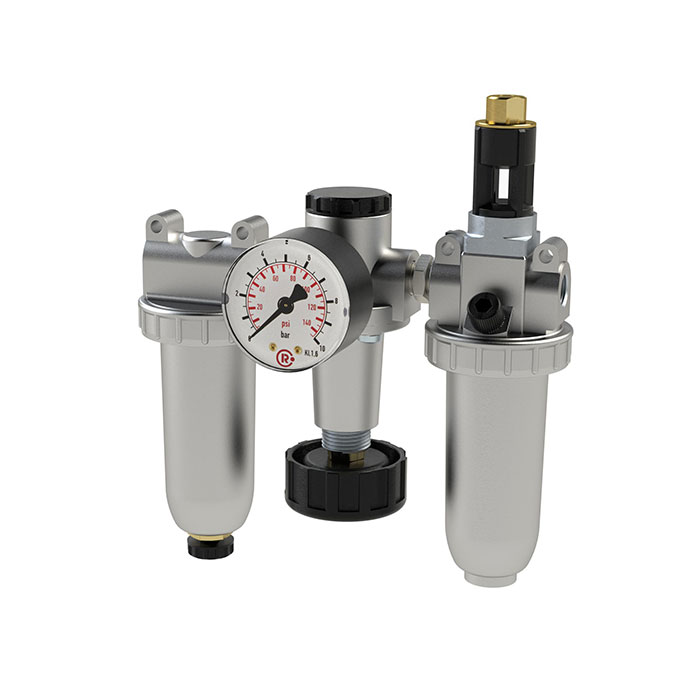

![[101081] RIEGLER Service unit 3-part »Standard«, Metal container, Size 1, G 3/8](/web/image/product.template/140517/image_128/%5B101081%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Metal%20container%2C%20Size%201%2C%20G%203-8?unique=9655526)
|
Type number: 847 K/M |
119.82 € | |
![[101085] RIEGLER Service unit 3-part »Standard«, Metal container, Size 3, G 1](/web/image/product.template/140521/image_128/%5B101085%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Metal%20container%2C%20Size%203%2C%20G%201?unique=f76497c)
|
Type number: 850 E/M |
328.30 € | |
![[101083] RIEGLER Service unit 3-part »Standard«, Metal container, Size 3, G 1/2](/web/image/product.template/140519/image_128/%5B101083%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Metal%20container%2C%20Size%203%2C%20G%201-2?unique=2ba7d8c)
|
Type number: 850 C/M |
182.39 € | |
![[101084] RIEGLER Service unit 3-part »Standard«, Metal container, Size 3, G 3/4](/web/image/product.template/140520/image_128/%5B101084%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Metal%20container%2C%20Size%203%2C%20G%203-4?unique=3fa7fc4)
|
Type number: 850 D/M |
328.30 € | |
![[101087] RIEGLER Service unit 3-part »Standard«, Metal container, Size 4, G 1 1/2](/web/image/product.template/140523/image_128/%5B101087%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Metal%20container%2C%20Size%204%2C%20G%201%201-2?unique=819797c)
|
Type number: 850 H/M |
629.27 € | |

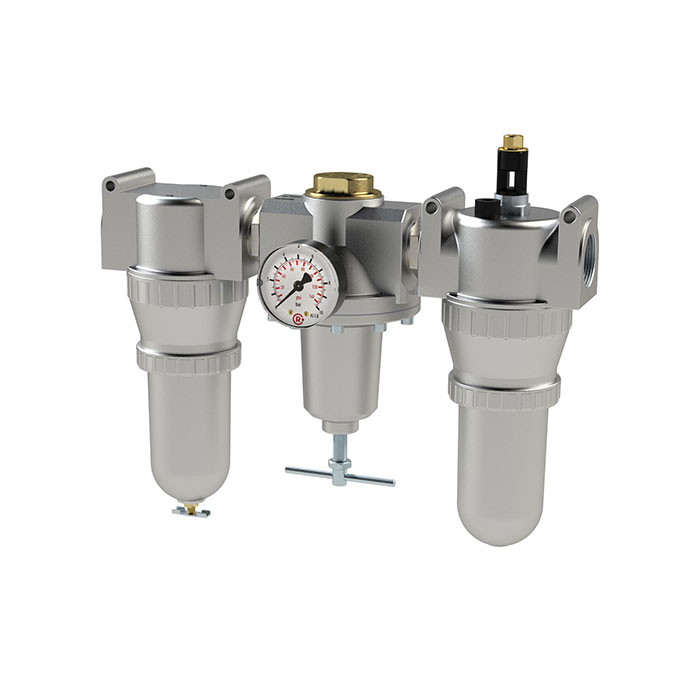

![[101086] RIEGLER Service unit 3-part »Standard«, Metal container, Size 4, G 1 1/4](/web/image/product.template/140522/image_128/%5B101086%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Metal%20container%2C%20Size%204%2C%20G%201%201-4?unique=c0f0b6b)
|
Type number: 850 F/M |
660.94 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=9a5d71c)
|
Type number: 32 |
34.09 € | |
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=a0ae0bb)
|
Type number: 655.6.900 |
36.35 € | |
![[100794] RIEGLER Drip cap polycarbonate](/web/image/product.template/140230/image_128/%5B100794%5D%20RIEGLER%20Drip%20cap%20polycarbonate?unique=671722f)
|
Type number: 760.7.990 |
7.03 € | |
![[100940] RIEGLER Protective cage, for series »Standard«, Size 1, G 1/4 and G 3/8](/web/image/product.template/140376/image_128/%5B100940%5D%20RIEGLER%20Protective%20cage%2C%20for%20series%20%C2%BBStandard%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=2343136)
|
Type number: SK 01 |
15.53 € | |
![[100941] RIEGLER PC container, for filter regulator and filter »Standard«, Size 1](/web/image/product.template/140377/image_128/%5B100941%5D%20RIEGLER%20PC%20container%2C%20for%20filter%20regulator%20and%20filter%20%C2%BBStandard%C2%AB%2C%20Size%201?unique=2552372)
|
Type number: 640/2-HA |
18.58 € | |
![[100981] RIEGLER Mounting bracket with 2 screws](/web/image/product.template/140417/image_128/%5B100981%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws?unique=e6bdf55)
|
Type number: H 800 |
4.08 € | |
![[101039] RIEGLER PC container, incl. O-ring, for mist oiler »Standard«, Size 1](/web/image/product.template/140475/image_128/%5B101039%5D%20RIEGLER%20PC%20container%2C%20incl.%20O-ring%2C%20for%20mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Size%201?unique=3373740)
|
Type number: 740/02 |
7.44 € | |
![[145769] RIEGLER Mounting kit, mounting bracket, for "Standard", BG 1, up to G 3/8](/web/image/product.template/279358/image_128/%5B145769%5D%20RIEGLER%20Mounting%20kit%2C%20mounting%20bracket%2C%20for%20%22Standard%22%2C%20BG%201%2C%20up%20to%20G%203-8?unique=66e10cc)
|
Type number: H 82 |
4.65 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100796] RIEGLER Adapter for mounting metal drip cap](/web/image/product.template/140232/image_128/%5B100796%5D%20RIEGLER%20Adapter%20for%20mounting%20metal%20drip%20cap?unique=5974986)
|
Type number: 760.7.1135 |
10.95 € | |
![[100795] RIEGLER Drip cap metal](/web/image/product.template/140231/image_128/%5B100795%5D%20RIEGLER%20Drip%20cap%20metal?unique=b338c3b)
|
Type number: 760.7.992 |
31.57 € | |
![[100134] Riegler Filter element 5 µm, Cellpor](/web/image/product.template/123199/image_128/%5B100134%5D%20Riegler%20Filter%20element%205%20%C2%B5m%2C%20Cellpor?unique=880b63d)
|
Type number: 611.6.905 |
9.46 € | |
![[100942] RIEGLER Metal container, for filter regulator / filter »Standard«, Size 1](/web/image/product.template/140378/image_128/%5B100942%5D%20RIEGLER%20Metal%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB%2C%20Size%201?unique=d925fc1)
|
Type number: 640/12 |
17.09 € | |
![[101038] RIEGLER Metal container, incl. O-ring, for mist oiler »Standard«, Size 1](/web/image/product.template/140474/image_128/%5B101038%5D%20RIEGLER%20Metal%20container%2C%20incl.%20O-ring%2C%20for%20mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Size%201?unique=798ff60)
|
Type number: 740/12 |
14.76 € | |
![[101679] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 25 bar/360 psi](/web/image/product.template/169651/image_128/%5B101679%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2025%20bar-360%20psi?unique=5c5c175)
|
Type number: 208-KD |
6.25 € | |

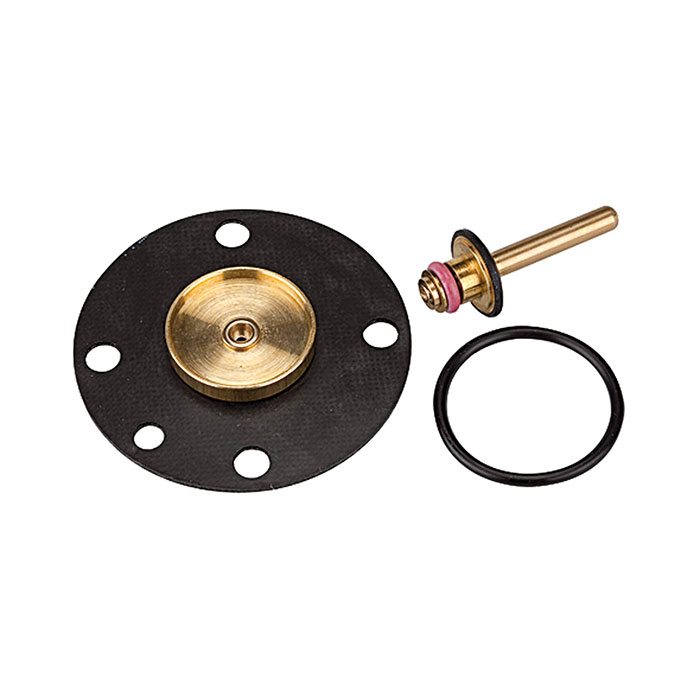

![[100833] RIEGLER Wear part set, for pressure regulator »Standard«, Size 1](/web/image/product.template/140269/image_128/%5B100833%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20pressure%20regulator%20%C2%BBStandard%C2%AB%2C%20Size%201?unique=c62e442)
|
Type number: 22.620.4 |
15.17 € | |
