RIEGLER Check valve »multifix«, Size 1, G 1/4
Type number: V 11
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Check valve »multifix«, Size 1, G 1/4, Opening pressure min. 0.1 bar, Input pressure max. 16 bar, Medium / ambient temp. max. 60°C
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Opening pressure min. | 0.1 bar |
| Thread | G 1/4 |
| Flow rate | 700 l/min |
| BG | 1 |
| A | 47.8 mm |
| B | 52 mm |
| C | 26 mm |
| D | 26 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

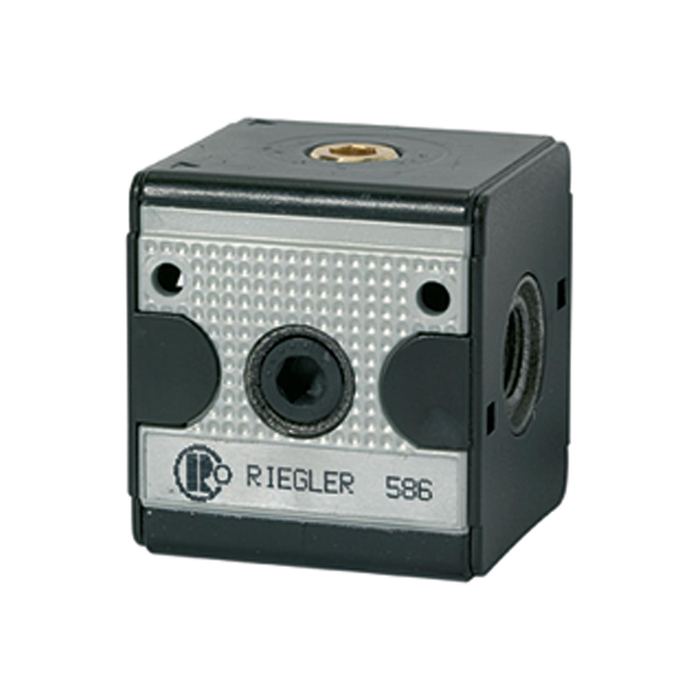

![[100631] RIEGLER Check valve »multifix«, Size 1, G 3/8](/web/image/product.template/140066/image_128/%5B100631%5D%20RIEGLER%20Check%20valve%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%203-8?unique=620391f)
|
Type number: V 12 |
36.45 € | |
![[100632] RIEGLER Check valve »multifix«, Size 3, G 1/2](/web/image/product.template/140067/image_128/%5B100632%5D%20RIEGLER%20Check%20valve%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2?unique=500d965)
|
Type number: V 33/1 |
45.26 € | |
![[100633] RIEGLER Check valve »multifix«, Size 3, G 3/4](/web/image/product.template/140068/image_128/%5B100633%5D%20RIEGLER%20Check%20valve%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%203-4?unique=62fd53b)
|
Type number: V 34/1 |
45.26 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100436] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139870/image_128/%5B100436%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=5618744)
|
Type number: KP 11 |
2.00 € | |
