RIEGLER Check valve »multifix«, Size 1, G 3/8
Type number: V 12
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Non-return valve "multifix" made of die-cast zinc, for compressed air preparation, G 3/8 - type V 12
The RIEGLER "multifix" non-return valve, BG 1, G 3/8 adds additional functions to modular maintenance systems. The housing is made of die-cast zinc with NBR seals. The maximum inlet pressure is 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 3/8 - suitable for common industry standards. The flow rate is 700 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Opening pressure min. | 0.1 bar |
| Thread | G 3/8 |
| Flow rate | 700 l/min |
| BG | 1 |
| A | 47.8 mm |
| B | 52 mm |
| C | 26 mm |
| D | 26 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100630] RIEGLER Check valve »multifix«, Size 1, G 1/4](/web/image/product.template/140065/image_128/%5B100630%5D%20RIEGLER%20Check%20valve%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4?unique=0c0ad08)
|
Type number: V 11 |
35.85 € | |
![[100632] RIEGLER Check valve »multifix«, Size 3, G 1/2](/web/image/product.template/140067/image_128/%5B100632%5D%20RIEGLER%20Check%20valve%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2?unique=f499d8c)
|
Type number: V 33/1 |
44.52 € | |

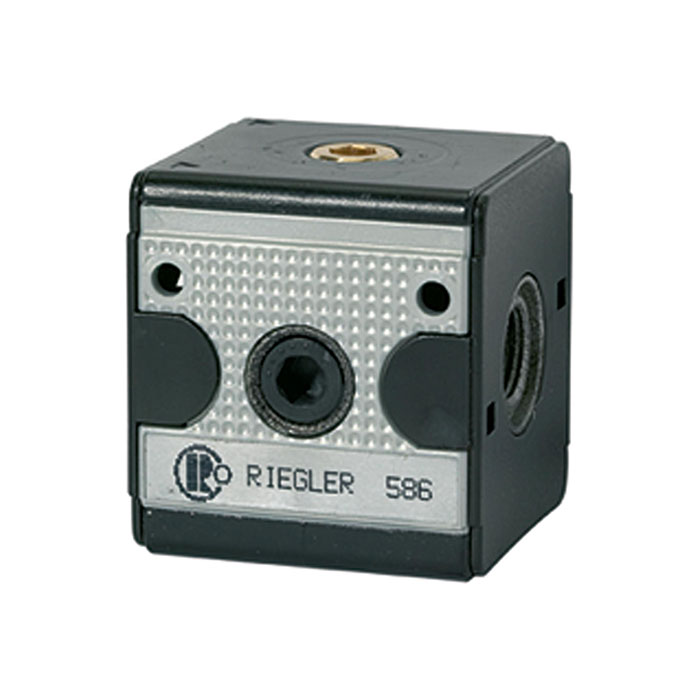

![[100633] RIEGLER Check valve »multifix«, Size 3, G 3/4](/web/image/product.template/140068/image_128/%5B100633%5D%20RIEGLER%20Check%20valve%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%203-4?unique=5cccd6b)
|
