RIEGLER Start up valve »variobloc«, Size 2, G 1
Type number: VA 26
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Start-up valve "variobloc" for compressed air preparation, max. 25 bar, G 1 - type VA 26
The RIEGLER start-up valve "variobloc", BG 2, G 1, operating pressure 2 - 25 bar expands maintenance systems modularly with additional functions. The operating pressure range is 2 bar to 25 bar. Connection thread G 1 - suitable for common industry standards. The flow rate is 4200 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Operating pressure min. | 2 bar |
| Max. operating pressure | 25 bar |
| Thread | G 1 |
| Flow rate | 4200 l/min |
| BG | 2 |
| A | 124 mm |
| B | 72 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

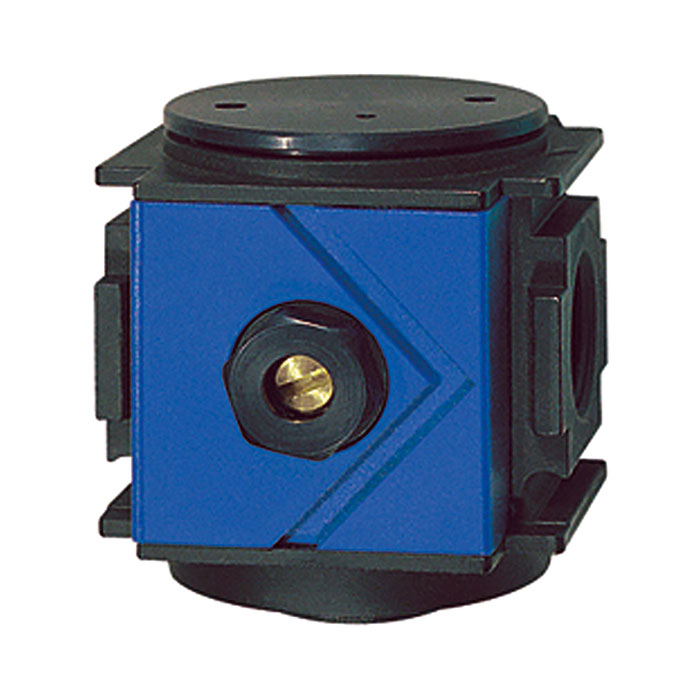

![[100743] RIEGLER Start up valve »variobloc«, Size 2, G 1/2](/web/image/product.template/140179/image_128/%5B100743%5D%20RIEGLER%20Start%20up%20valve%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2?unique=aa0b84b)
|
Type number: VA 24 |
62.69 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100749] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 2](/web/image/product.template/140185/image_128/%5B100749%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=880a819)
|
Type number: VZ 719 |
13.77 € | |
![[100753] RIEGLER Compact connecting set, for »variobloc«, Size 2, G 3/4 and G 1](/web/image/product.template/140189/image_128/%5B100753%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%203-4%20and%20G%201?unique=7325b49)
|
Type number: VZ 104 |
13.99 € | |
![[100757] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 2](/web/image/product.template/140193/image_128/%5B100757%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=5b3c8be)
|
Type number: VZ 204 |
23.10 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100762] RIEGLER Connection plate set to upgrade equipment from G 3/4 to G 1](/web/image/product.template/140198/image_128/%5B100762%5D%20RIEGLER%20Connection%20plate%20set%20to%20upgrade%20equipment%20from%20G%203-4%20to%20G%201?unique=dc8c377)
|
Type number: VZ 500 |
29.85 € | |
