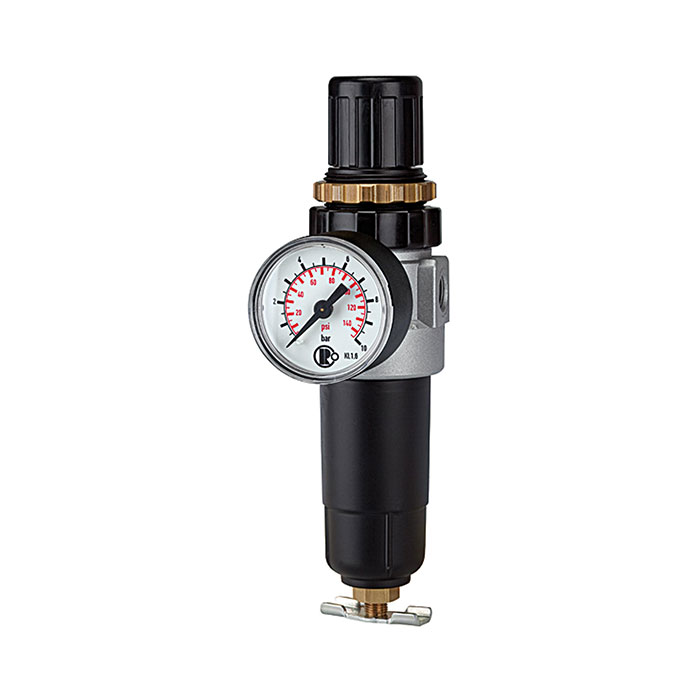

RIEGLER Filter regulator »Standard-mini«, Metal container, 5 µm, G 1/4
Type number: 578.01 M
EAN: 4047322102148
Filter regulator "Standard-mini", with metal bowl incl. mano. and panel nut, 5 µm, BG 0, G 1/4, control range 0.5 - 10 bar
| Inlet pressure max. | 25 bar |
| Housing | Die-cast zinc, painted silver |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard mini |
| Container | Metal container |
| Filter fineness | 5 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 1/4 |
| Flow rate | 350 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | manually |
| DN | 5 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 0 |
| A | 40 mm |
| B | 163.5 mm |
| C | 65 mm |
| D | 98.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
