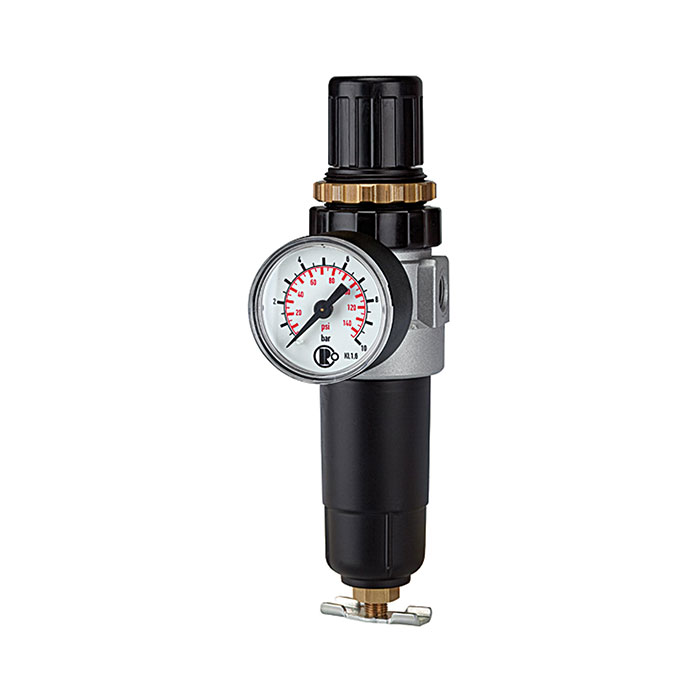

RIEGLER Filter regulator »Standard-mini«, Metal container, 5 µm, G 1/8
Type number: 578.00 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Filter regulator "Standard-mini" made of die-cast zinc, painted silver - Type 578.00 M
The RIEGLER filter regulator "Standard-mini", metal container incl. Mano., G 1/8 combines compressed air filtration and pressure regulation in one compact device. The housing is made of die-cast zinc, painted silver with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 25 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/8 - suitable for common industry standards. The flow rate is 350 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm, container made of metal container. Saves installation space and simplifies compressed air treatment.
Field of application
Typical areas of application: Compressed air supply in production, trade and automation.
| Inlet pressure max. | 25 bar |
| Housing | Die-cast zinc, painted silver |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard mini |
| Container | Metal container |
| Filter fineness | 5 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 1/8 |
| Flow rate | 350 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | manually |
| DN | 5 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 0 |
| A | 40 mm |
| B | 163.5 mm |
| C | 65 mm |
| D | 98.5 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

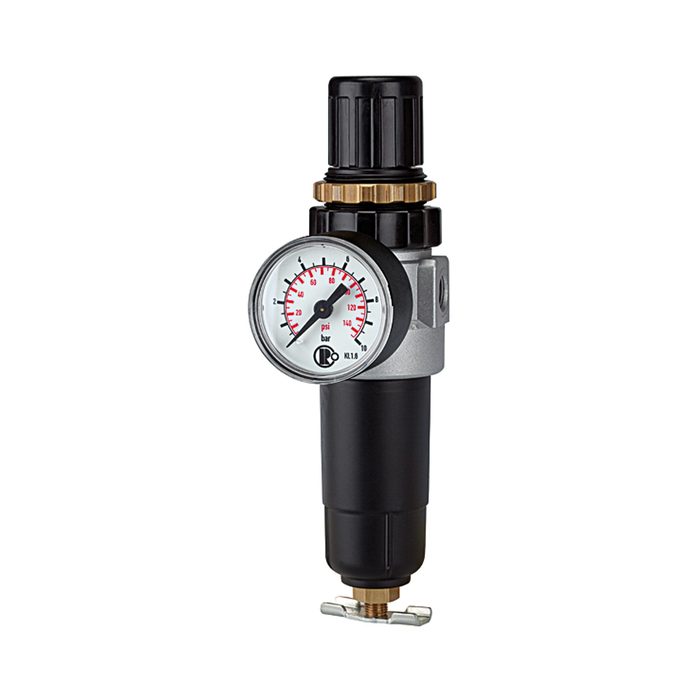

![[100784] RIEGLER Filter regulator »Standard-mini«, Metal container, 5 µm, G 1/4](/web/image/product.template/140220/image_128/%5B100784%5D%20RIEGLER%20Filter%20regulator%20%C2%BBStandard-mini%C2%AB%2C%20Metal%20container%2C%205%20%C2%B5m%2C%20G%201-4?unique=05d8417)
|
Type number: 578.01 M |
45.66 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100344] RIEGLER Mounting bracket with nut M30x1.5](/web/image/product.template/139778/image_128/%5B100344%5D%20RIEGLER%20Mounting%20bracket%20with%20nut%20M30x1.5?unique=61277c3)
|
Type number: MV 30 |
5.03 € | |

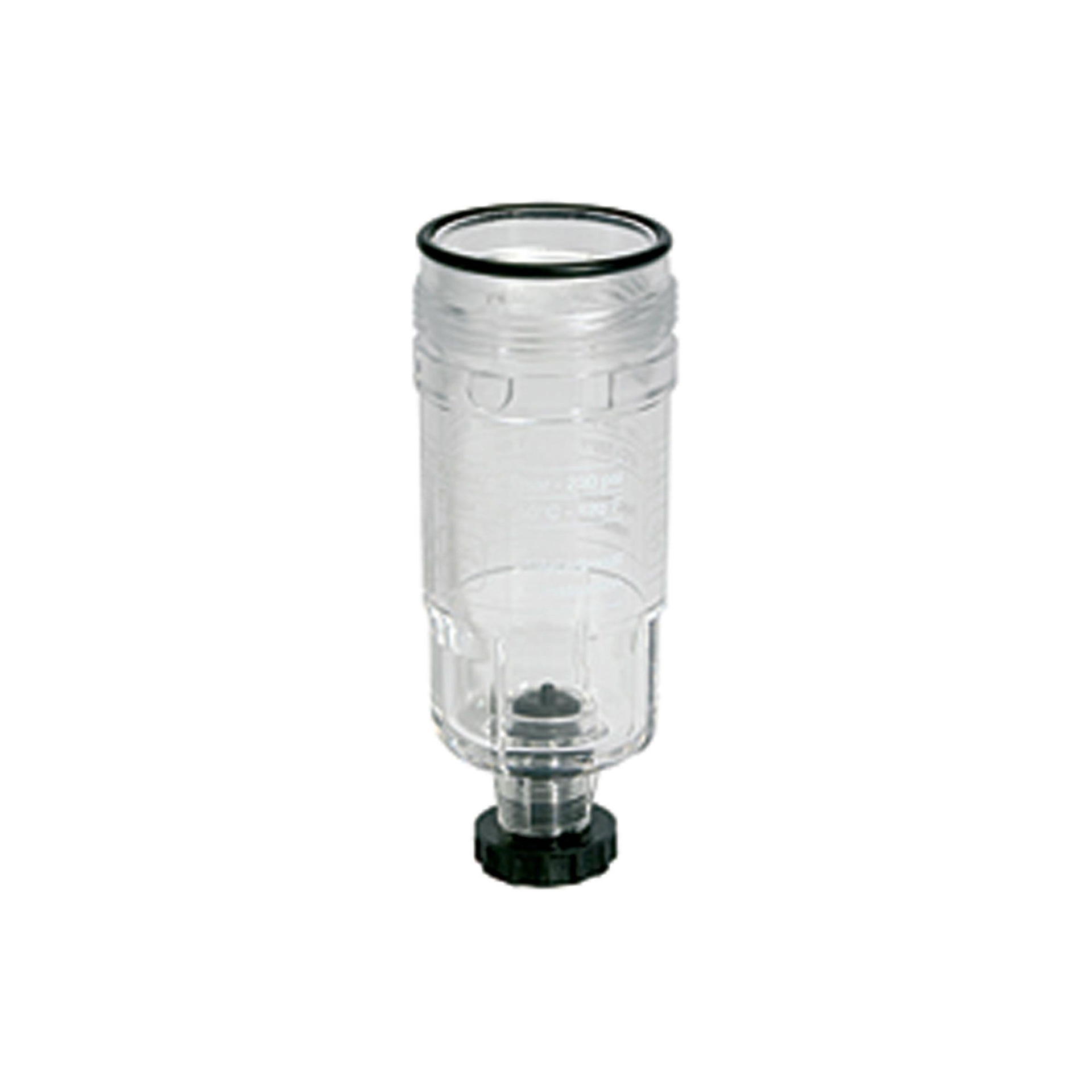

![[100357] RIEGLER Polycarbonate container, incl. NBR O-ring 30x2](/web/image/product.template/139791/image_128/%5B100357%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20NBR%20O-ring%2030x2?unique=0892c67)
|
Type number: 640/1-HA |
10.13 € | |

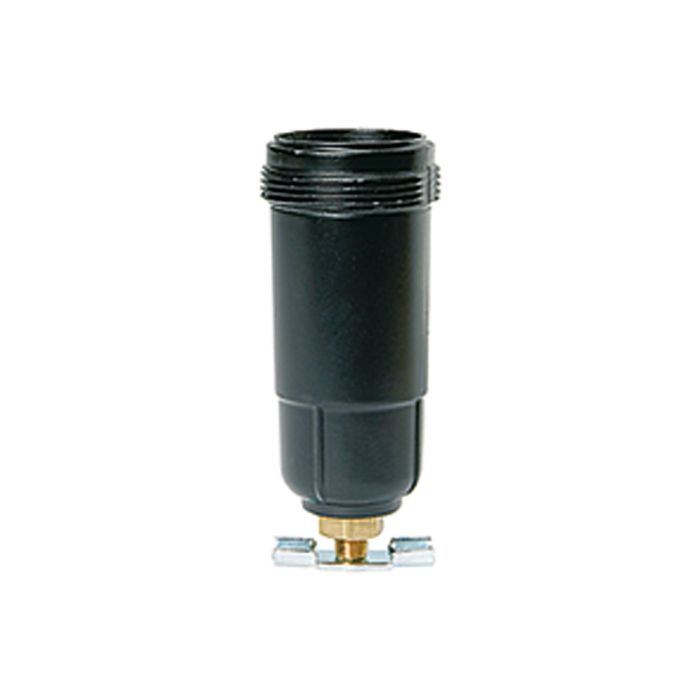

![[100358] RIEGLER Metal container, incl. NBR O-ring 30x2](/web/image/product.template/139792/image_128/%5B100358%5D%20RIEGLER%20Metal%20container%2C%20incl.%20NBR%20O-ring%2030x2?unique=99a46b0)
|
Type number: 640/11 |
16.90 € | |

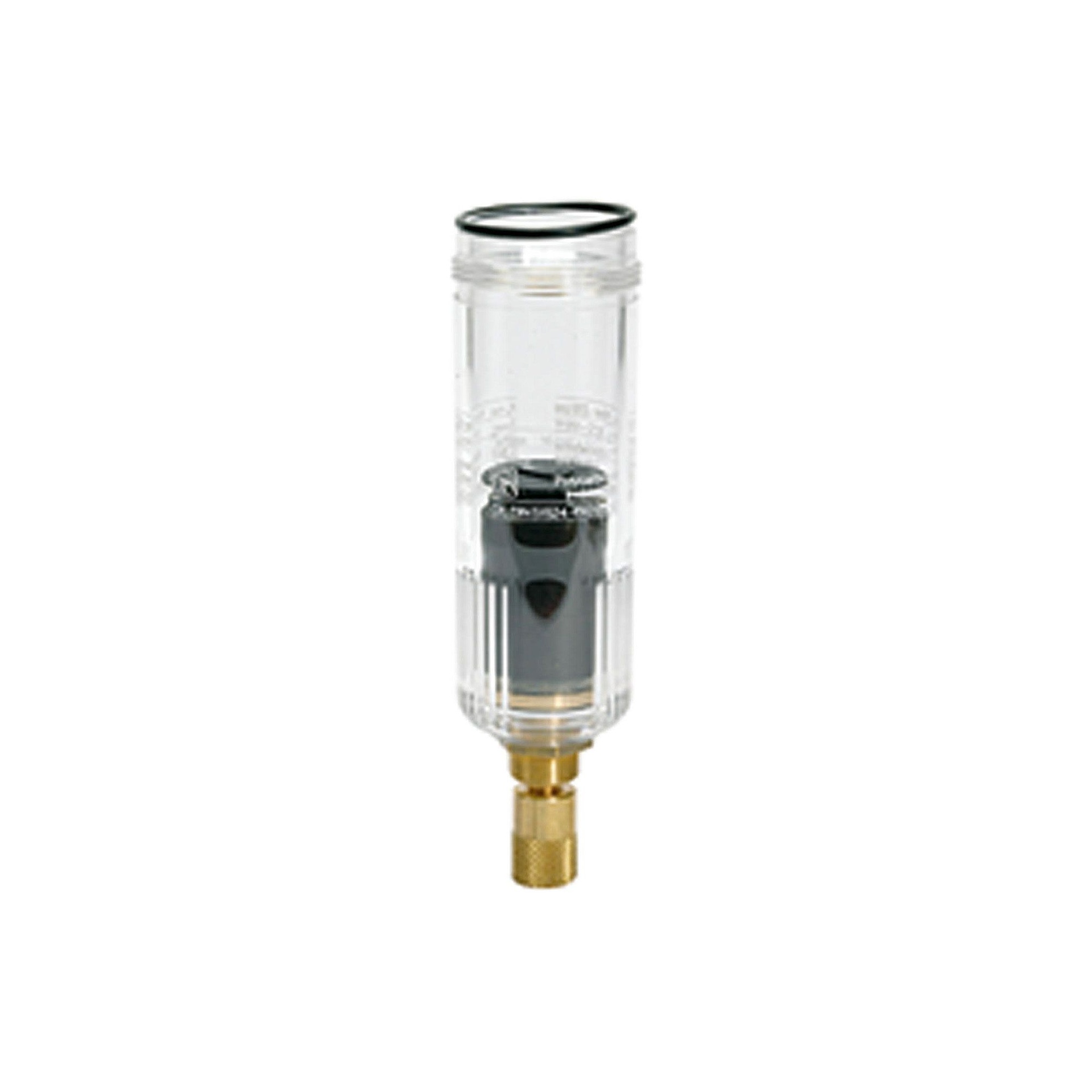

![[100361] RIEGLER Polycarbonate container, incl. O-ring, fully autom. bleeder valve](/web/image/product.template/139795/image_128/%5B100361%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring%2C%20fully%20autom.%20bleeder%20valve?unique=66779c0)
|
Type number: KS 11 F-A |
43.65 € | |

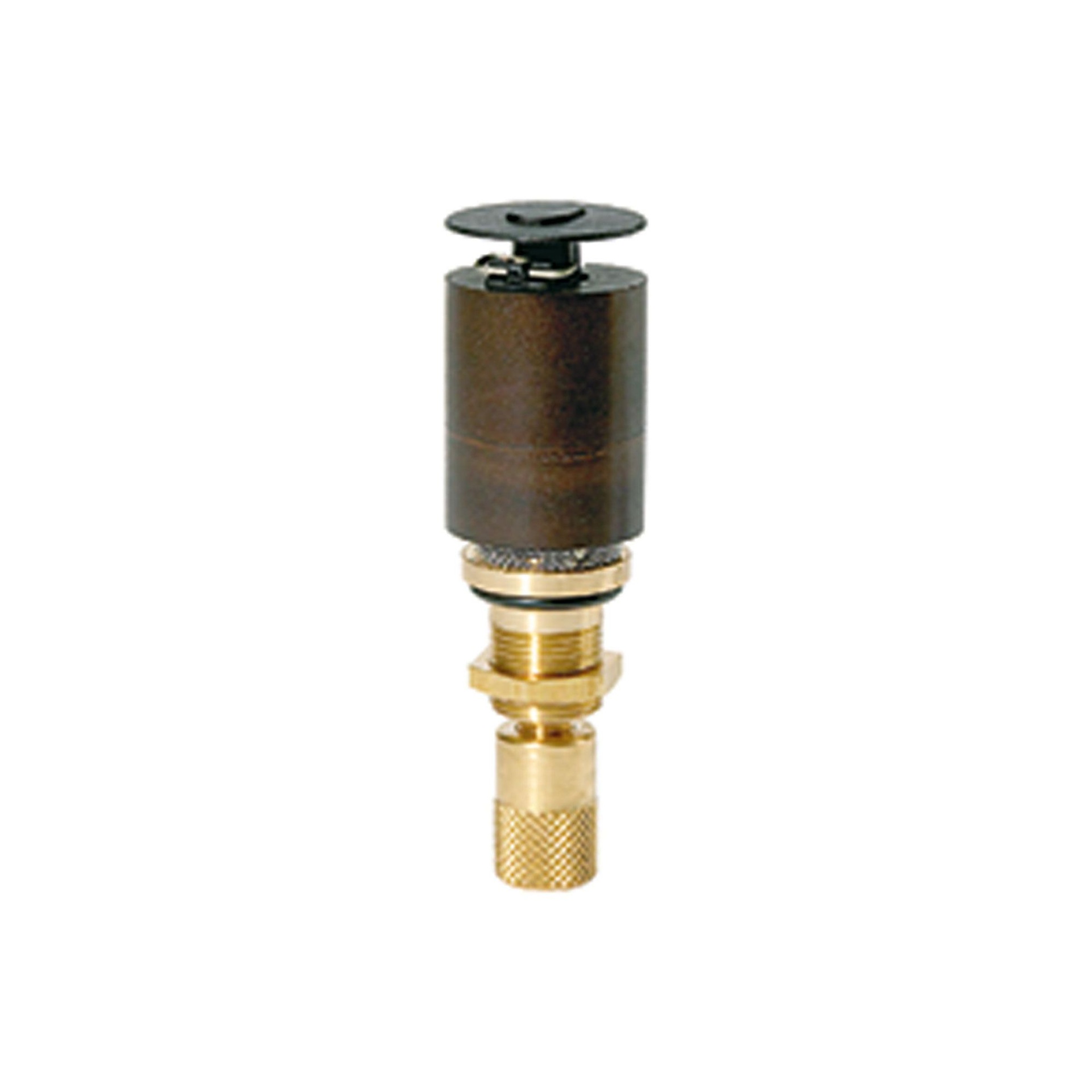

![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=b932d1c)
|
Type number: 655.6.900 |
36.35 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100345] RIEGLER Control panel nut M30x1.5, for »multifix-mini« and »multifix«](/web/image/product.template/139779/image_128/%5B100345%5D%20RIEGLER%20Control%20panel%20nut%20M30x1.5%2C%20for%20%C2%BBmultifix-mini%C2%AB%20and%20%C2%BBmultifix%C2%AB?unique=53ee7a1)
|
Type number: R 11-55 |
1.63 € | |
![[100134] Riegler Filter element 5 µm, Cellpor](/web/image/product.template/123199/image_128/%5B100134%5D%20Riegler%20Filter%20element%205%20%C2%B5m%2C%20Cellpor?unique=2e4a275)
|
Type number: 611.6.905 |
9.46 € | |
![[101534] RIEGLER Standard pressure gauge, rear centric, G 1/8, 0 - 16 bar/230 psi](/web/image/product.template/169508/image_128/%5B101534%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-8%2C%200%20-%2016%20bar-230%20psi?unique=178cfdb)
|
Type number: 110.47-KD |
6.10 € | |

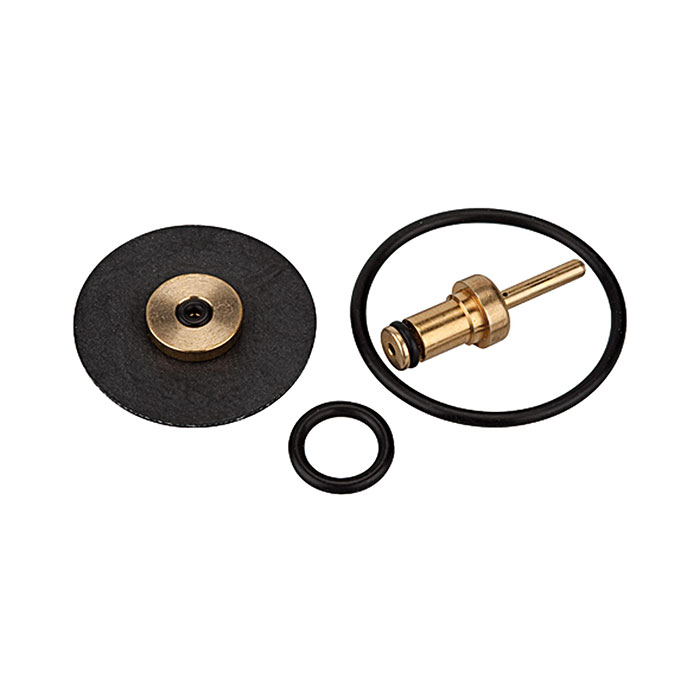

![[100785] RIEGLER Wear part set, for filter regulator »Standard-mini«](/web/image/product.template/140221/image_128/%5B100785%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20filter%20regulator%20%C2%BBStandard-mini%C2%AB?unique=432cd20)
|
Type number: 22.501.4 |
15.39 € | |
