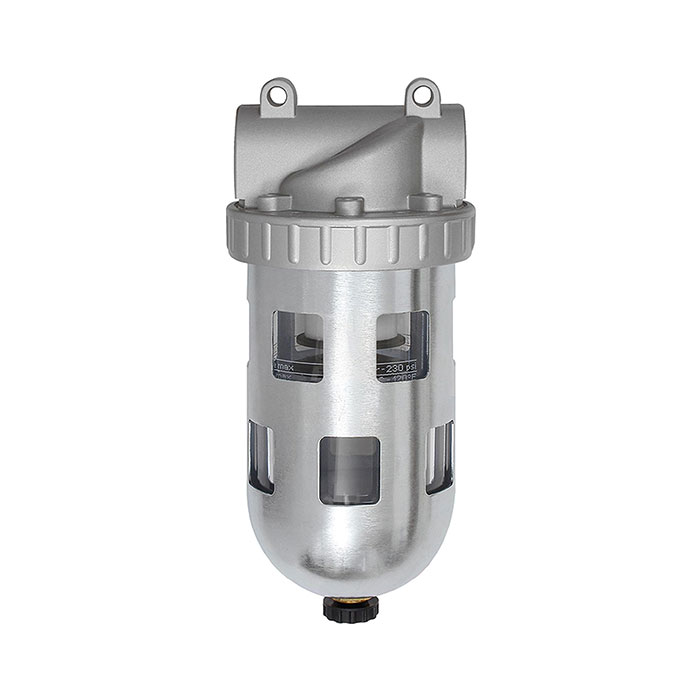

RIEGLER Filter »Standard«, PC container, Protective cage, Size 1, G 1/4
Type number: 640.116 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Standard" filter, PC container and protective cage, 5 µm, BG 1, G 1/4, PE max. 16 bar, max. ambient temp. 60 °C, drain valve: HA
| Inlet pressure max. | 16 bar |
| Housing | Die-cast zinc, painted silver |
| Flow rate measurement | with P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 5 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/4 |
| Flow rate | 800 l/min |
| Condensate drain | semi-automatic |
| DN | 6 |
| BG | 1 |
| A | 48 mm |
| C | 14 mm |
| D | 131.6 mm |
| H | 38 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[206301] RIEGLER Filter »Standard«, PC-Behälter und Schutzkorb, 5 µm, BG 2, G 3/8](/web/image/product.template/268092/image_128/%5B206301%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20PC-Beh%C3%A4lter%20und%20Schutzkorb%2C%205%20%C2%B5m%2C%20BG%202%2C%20G%203-8?unique=4da8c80)
|
Typennummer: 650 B/S.2 |
50.31 € | |
![[100964] RIEGLER Filter »Standard«, PC container, Protective cage, Size 1, G 3/8](/web/image/product.template/140400/image_128/%5B100964%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%201%2C%20G%203-8?unique=456bf97)
|
Type number: 640.126 S |
31.67 € | |
![[100968] RIEGLER Filter »Standard«, PC container, Protective cage, Size 3, G 1](/web/image/product.template/140404/image_128/%5B100968%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%203%2C%20G%201?unique=dcf1098)
|
Type number: 650 E/S |
101.02 € | |
![[100966] RIEGLER Filter »Standard«, PC container, Protective cage, Size 3, G 1/2](/web/image/product.template/140402/image_128/%5B100966%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%203%2C%20G%201-2?unique=d0dbd6d)
|
Type number: 650 C/S |
52.84 € | |
![[100967] RIEGLER Filter »Standard«, PC container, Protective cage, Size 3, G 3/4](/web/image/product.template/140403/image_128/%5B100967%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%203%2C%20G%203-4?unique=5ea5270)
|
Type number: 650 D/S |
101.02 € | |
![[100970] RIEGLER Filter »Standard«, PC container, Protective cage, Size 4, G 1 1/2](/web/image/product.template/140406/image_128/%5B100970%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%204%2C%20G%201%201-2?unique=ea758f9)
|
Type number: 650 G/S |
176.70 € | |
![[100969] RIEGLER Filter »Standard«, PC container, Protective cage, Size 4, G 1 1/4](/web/image/product.template/140405/image_128/%5B100969%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%204%2C%20G%201%201-4?unique=a0e2e0d)
|
Type number: 650 F/S |
209.15 € | |
![[100971] RIEGLER Filter »Standard«, PC container, Protective cage, Size 5, G 2](/web/image/product.template/140407/image_128/%5B100971%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%205%2C%20G%202?unique=116a19b)
|
Type number: 650 H/S |
489.46 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=ce1aa1d)
|
Type number: 655.6.900 |
36.35 € | |

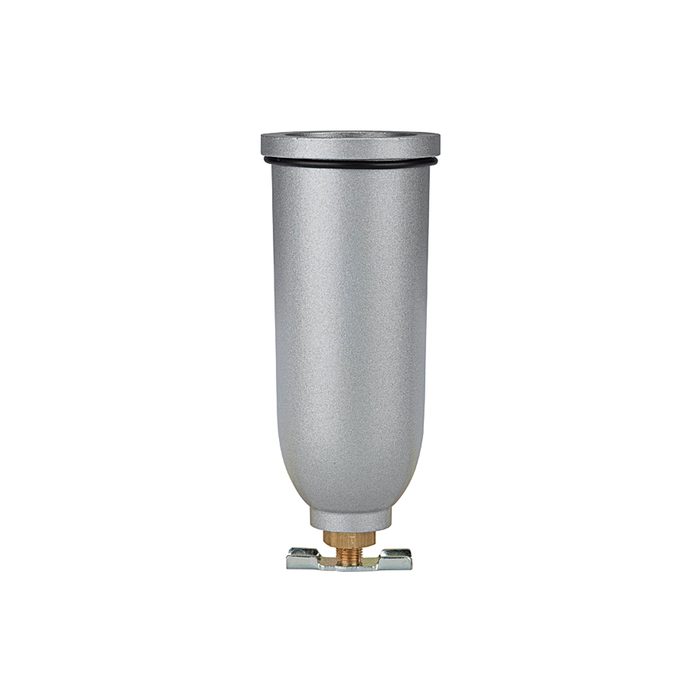

![[100942] RIEGLER Metal container, for filter regulator / filter »Standard«, Size 1](/web/image/product.template/140378/image_128/%5B100942%5D%20RIEGLER%20Metal%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB%2C%20Size%201?unique=7b3dd6c)
|
Type number: 640/12 |
17.09 € | |

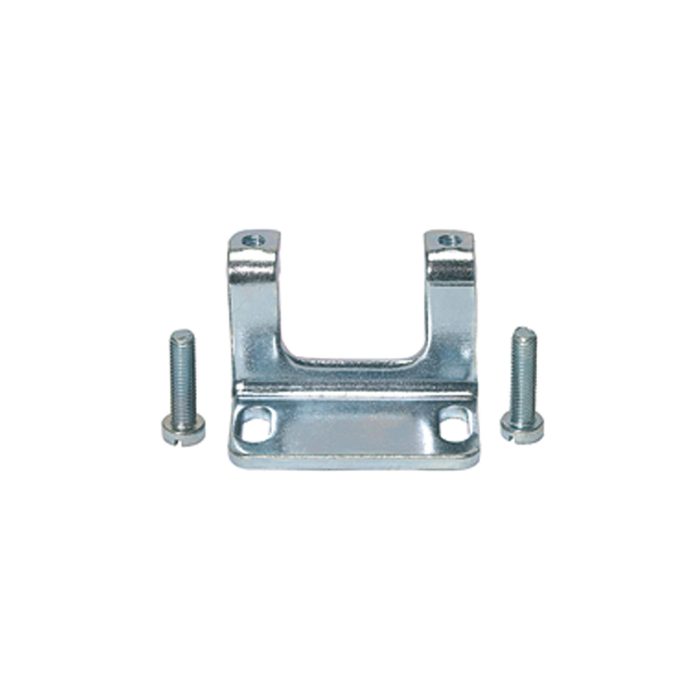

![[100981] RIEGLER Mounting bracket with 2 screws](/web/image/product.template/140417/image_128/%5B100981%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws?unique=658a7e1)
|
Type number: H 800 |
4.08 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100134] Riegler Filter element 5 µm, Cellpor](/web/image/product.template/123199/image_128/%5B100134%5D%20Riegler%20Filter%20element%205%20%C2%B5m%2C%20Cellpor?unique=809425d)
|
Type number: 611.6.905 |
9.46 € | |

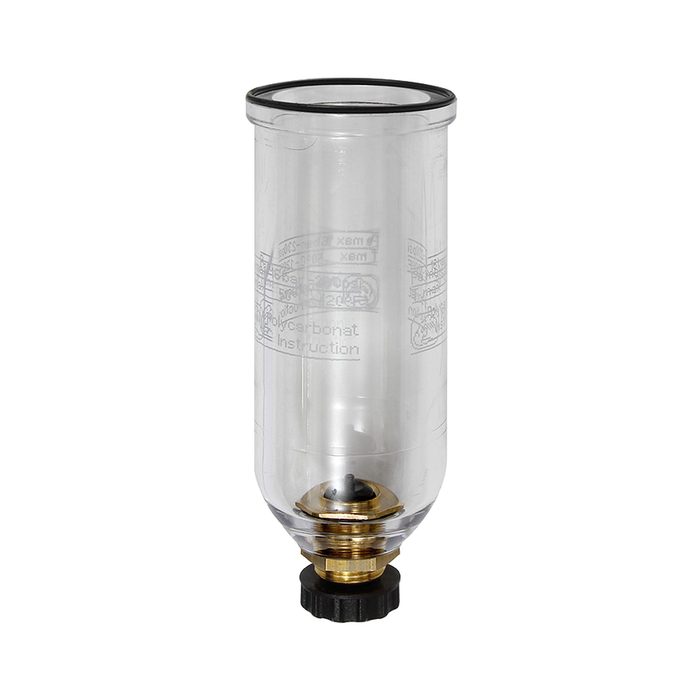

![[100941] RIEGLER PC container, for filter regulator and filter »Standard«, Size 1](/web/image/product.template/140377/image_128/%5B100941%5D%20RIEGLER%20PC%20container%2C%20for%20filter%20regulator%20and%20filter%20%C2%BBStandard%C2%AB%2C%20Size%201?unique=5bc3953)
|
