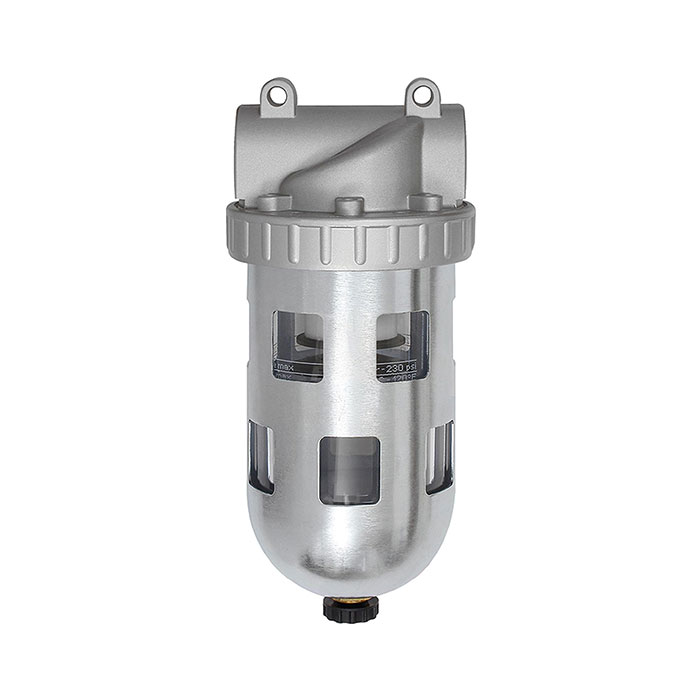

RIEGLER Filter »Standard«, PC container, Protective cage, Size 3, G 1
Type number: 650 E/S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Standard" filter made of die-cast zinc, painted silver, for compressed air treatment, G 1 - type 650 E/S
The RIEGLER "Standard" filter, PC container and protective cage, 5 µm, BG 3, G 1 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast zinc, painted silver. The maximum inlet pressure is 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1 - suitable for common industry standards. The flow rate is 4000 l/min (at P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm, polycarbonate container with protective cage. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 16 bar |
| Housing | Die-cast zinc, painted silver |
| Flow rate measurement | with P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 5 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1 |
| Flow rate | 4000 l/min |
| Condensate drain | semi-automatic |
| DN | 25 |
| BG | 3 |
| A | 90 mm |
| C | 26.5 mm |
| D | 169.9 mm |
| H | 50 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

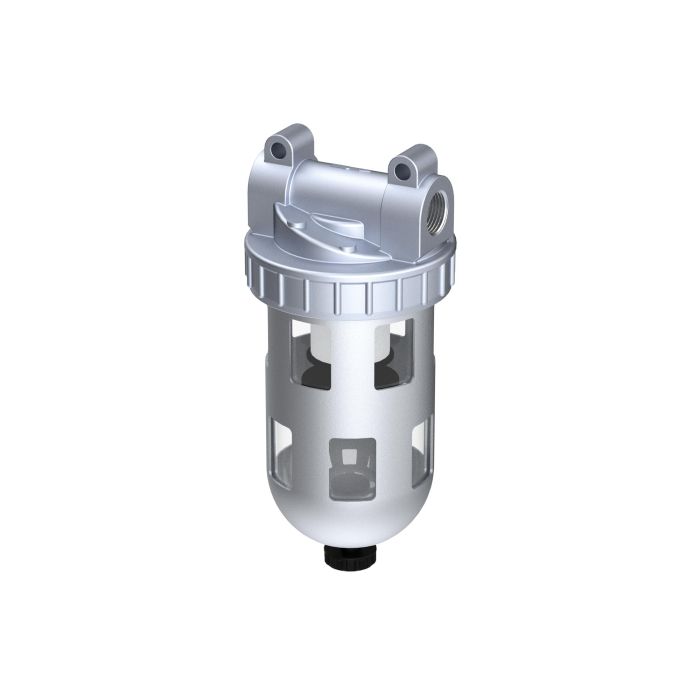

![[206301] RIEGLER Filter »Standard«, PC-Behälter und Schutzkorb, 5 µm, BG 2, G 3/8](/web/image/product.template/268092/image_128/%5B206301%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20PC-Beh%C3%A4lter%20und%20Schutzkorb%2C%205%20%C2%B5m%2C%20BG%202%2C%20G%203-8?unique=a19f648)
|
Typennummer: 650 B/S.2 |
50.31 € | |
![[100963] RIEGLER Filter »Standard«, PC container, Protective cage, Size 1, G 1/4](/web/image/product.template/140399/image_128/%5B100963%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%201%2C%20G%201-4?unique=16c83f7)
|
Type number: 640.116 S |
31.67 € | |
![[100964] RIEGLER Filter »Standard«, PC container, Protective cage, Size 1, G 3/8](/web/image/product.template/140400/image_128/%5B100964%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%201%2C%20G%203-8?unique=8e8be54)
|
Type number: 640.126 S |
31.67 € | |
![[100966] RIEGLER Filter »Standard«, PC container, Protective cage, Size 3, G 1/2](/web/image/product.template/140402/image_128/%5B100966%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%203%2C%20G%201-2?unique=3ffdc09)
|
Type number: 650 C/S |
52.84 € | |
![[100967] RIEGLER Filter »Standard«, PC container, Protective cage, Size 3, G 3/4](/web/image/product.template/140403/image_128/%5B100967%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%203%2C%20G%203-4?unique=f1bf6fa)
|
Type number: 650 D/S |
101.02 € | |
![[100970] RIEGLER Filter »Standard«, PC container, Protective cage, Size 4, G 1 1/2](/web/image/product.template/140406/image_128/%5B100970%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%204%2C%20G%201%201-2?unique=d5a91bd)
|
Type number: 650 G/S |
176.70 € | |
![[100969] RIEGLER Filter »Standard«, PC container, Protective cage, Size 4, G 1 1/4](/web/image/product.template/140405/image_128/%5B100969%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%204%2C%20G%201%201-4?unique=e93fe01)
|
Type number: 650 F/S |
209.15 € | |
![[100971] RIEGLER Filter »Standard«, PC container, Protective cage, Size 5, G 2](/web/image/product.template/140407/image_128/%5B100971%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%205%2C%20G%202?unique=780e197)
|
Type number: 650 H/S |
489.46 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=16b9c4b)
|
Type number: 655.6.900 |
36.35 € | |

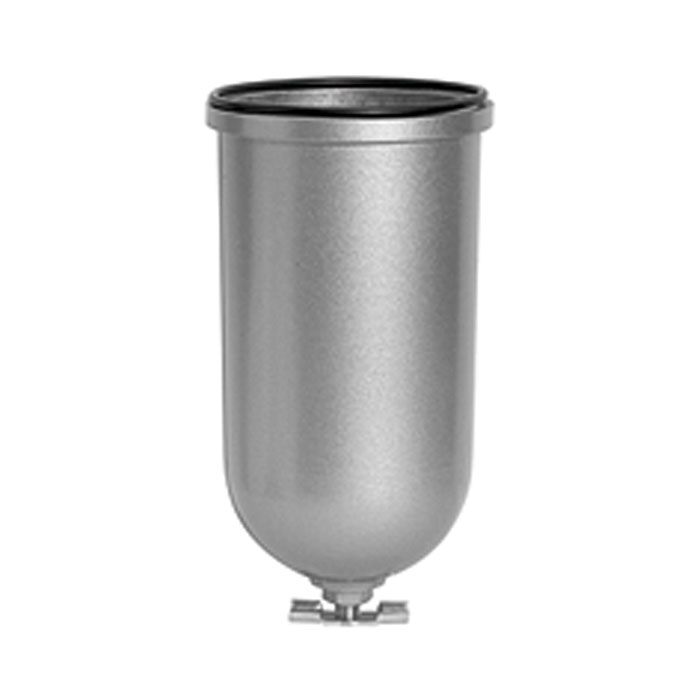

![[100951] RIEGLER Metal container, for filter regulator and filter »Standard«](/web/image/product.template/140387/image_128/%5B100951%5D%20RIEGLER%20Metal%20container%2C%20for%20filter%20regulator%20and%20filter%20%C2%BBStandard%C2%AB?unique=699fd89)
|
Type number: 650/12 |
26.56 € | |
![[100982] RIEGLER Mounting bracket with 2 screws](/web/image/product.template/140418/image_128/%5B100982%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws?unique=a463711)
|
Type number: H 801 |
4.80 € | |
![[100983] RIEGLER Filter element 8 µm, Sint. bronze, Size 3 »Standard«, »multifix«](/web/image/product.template/140419/image_128/%5B100983%5D%20RIEGLER%20Filter%20element%208%20%C2%B5m%2C%20Sint.%20bronze%2C%20Size%203%20%C2%BBStandard%C2%AB%2C%20%C2%BBmultifix%C2%AB?unique=b6cfc16)
|
Type number: 653.6.908 |
16.04 € | |
![[100984] RIEGLER Filter element 40 µm, Sintered bronze, filter »Standard«, Size 3](/web/image/product.template/140420/image_128/%5B100984%5D%20RIEGLER%20Filter%20element%2040%20%C2%B5m%2C%20Sintered%20bronze%2C%20filter%20%C2%BBStandard%C2%AB%2C%20Size%203?unique=f0232d6)
|
Type number: 653.6.940 |
23.94 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100507] RIEGLER Filter element 5 µm, Cellpor, for »multifix« and »Standard«](/web/image/product.template/139942/image_128/%5B100507%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20Cellpor%2C%20for%20%C2%BBmultifix%C2%AB%20and%20%C2%BBStandard%C2%AB?unique=c07d854)
|
Type number: 633.6.905 |
13.89 € | |

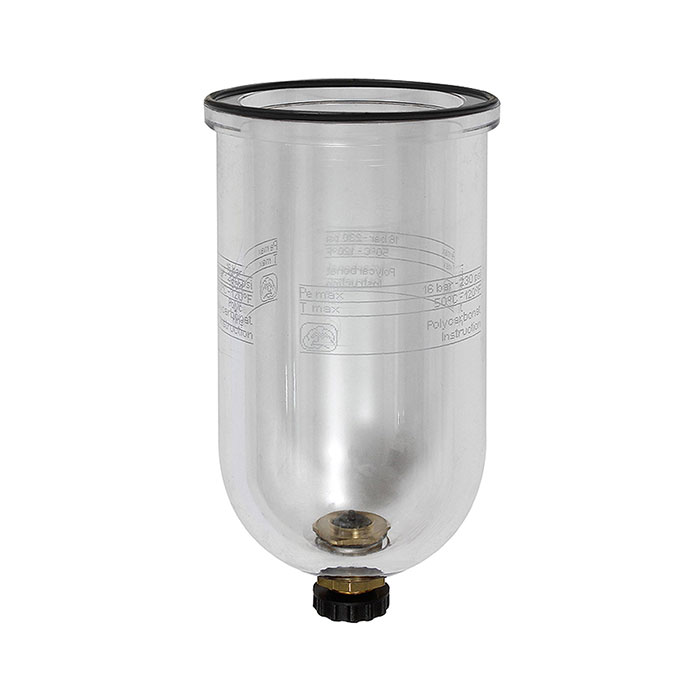

![[100950] RIEGLER Polycarbonate container, for filter regulator / filter »Standard«](/web/image/product.template/140386/image_128/%5B100950%5D%20RIEGLER%20Polycarbonate%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB?unique=08b98cf)
|
Type number: 650/2-HA |
18.58 € | |
![[100949] RIEGLER Protective cage, for series »Standard«, Size 3, G 1/2](/web/image/product.template/140385/image_128/%5B100949%5D%20RIEGLER%20Protective%20cage%2C%20for%20series%20%C2%BBStandard%C2%AB%2C%20Size%203%2C%20G%201-2?unique=1859b8f)
|
Type number: SK 03 |
23.98 € | |
