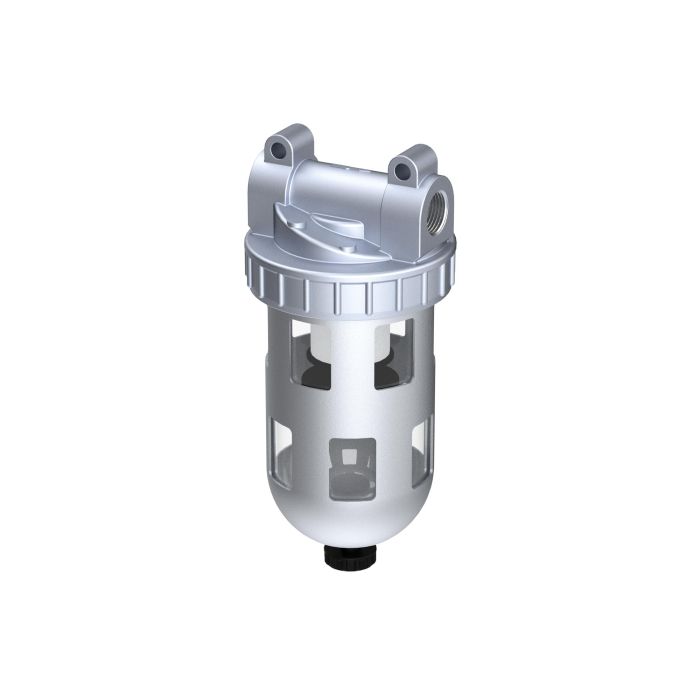

RIEGLER Filter »Standard«, PC-Behälter und Schutzkorb, 5 µm, BG 2, G 3/8
Typennummer: 650 B/S.2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Standard" filter made of die-cast zinc, painted silver, for compressed air treatment, G 3/8 - type 650 B/S.2
The RIEGLER "Standard" filter, PC container and protective cage, 5 µm, BG 2, G 3/8 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast zinc, painted silver. The maximum inlet pressure is 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 3/8 - suitable for common industry standards. Filter fineness 5 µm, polycarbonate container with protective cage. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| A | 70 mm |
| Container | Polycarbonate container with protective cage |
| BG | 2 |
| C | 16 mm |
| D | 145.7 mm |
| DN | 10 |
| Flow 1 | 3100 l/min |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Inlet pressure max. | 16 bar |
| Filter fineness | 5 µm |
| Housing | Die-cast zinc, painted silver |
| Thread | G 3/8 |
| H | 50 mm |
| Class name | EASY |
| Condensate drain | semi-automatic |
| Medium temperature max. | 60 °C |
| Medium temperature min. | -10 °C |
| Series | Standard |
| Ambient temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
