RIEGLER Filter »Standard«, PC container, Protective cage, Size 4, G 1 1/4
Type number: 650 F/S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Standard" filter, PC container and protective cage, 40 µm, BG 4, G 1 1/4, PE max. 16 bar, max. ambient temp. 60 °C, drain valve: HA
| Inlet pressure max. | 16 bar |
| Housing | Die-cast zinc, painted silver |
| Flow rate measurement | with P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 40 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1 1/4 |
| Flow rate | 12500 l/min |
| Condensate drain | semi-automatic |
| DN | 40 |
| BG | 4 |
| A | 125 mm |
| C | 36.5 mm |
| D | 243.4 mm |
| H | 105 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

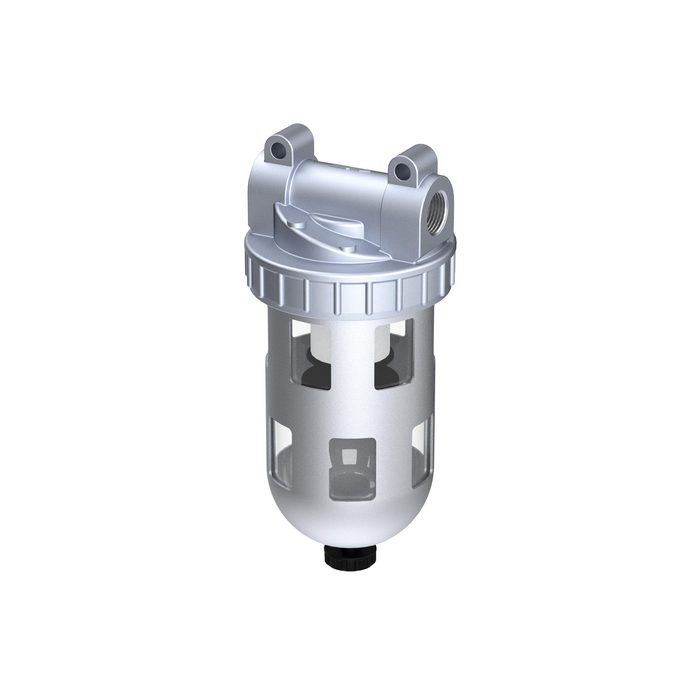

![[206301] RIEGLER Filter »Standard«, PC-Behälter und Schutzkorb, 5 µm, BG 2, G 3/8](/web/image/product.template/268092/image_128/%5B206301%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20PC-Beh%C3%A4lter%20und%20Schutzkorb%2C%205%20%C2%B5m%2C%20BG%202%2C%20G%203-8?unique=4da8c80)
|
Typennummer: 650 B/S.2 |
50.31 € | |

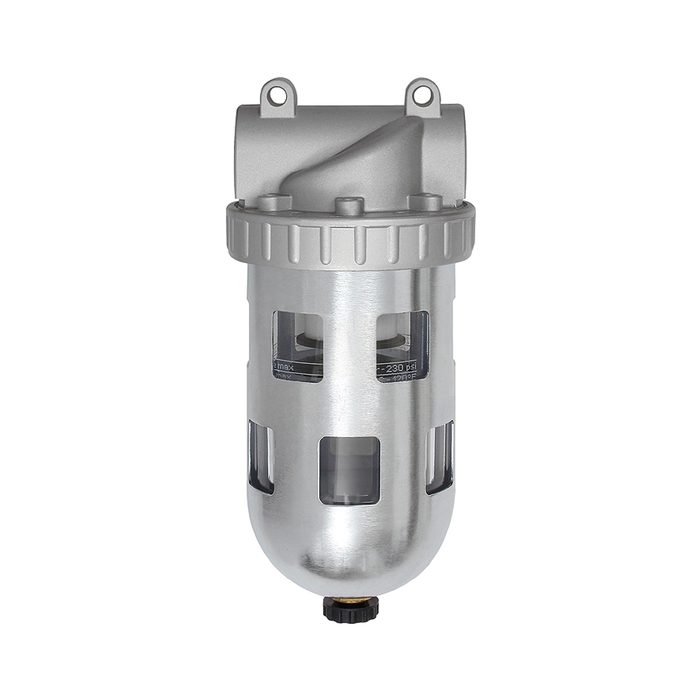

![[100963] RIEGLER Filter »Standard«, PC container, Protective cage, Size 1, G 1/4](/web/image/product.template/140399/image_128/%5B100963%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%201%2C%20G%201-4?unique=98da9e8)
|
