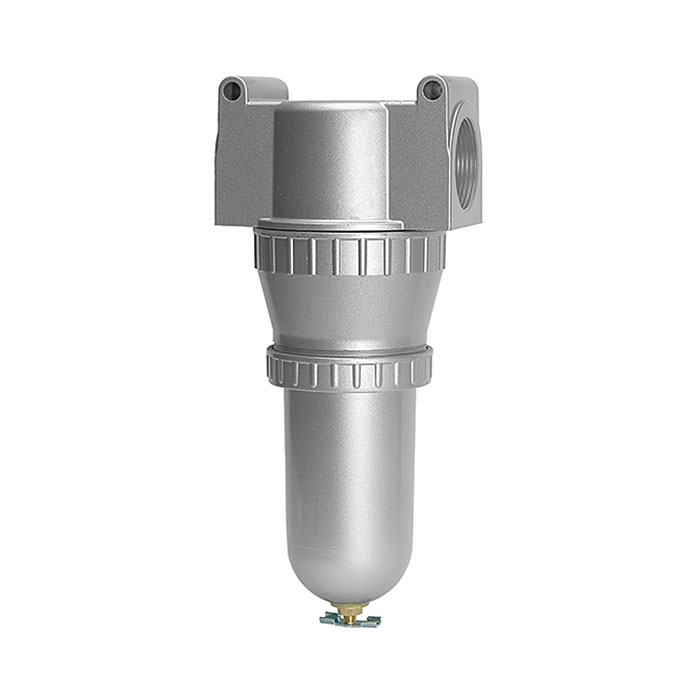

RIEGLER Filter »Standard« with metal container, 5 µm, Size 1, G 1/4
Type number: 640.116 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Standard" filter made of die-cast zinc, painted silver, for compressed air treatment, G 1/4 - type 640.116 M
The RIEGLER "Standard" filter, with metal container, 5 µm, BG 1, G 1/4 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast zinc, painted silver. The maximum inlet pressure is 25 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/4 - suitable for common industry standards. The flow rate is 800 l/min (at P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm, container made of metal container. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 25 bar |
| Housing | Die-cast zinc, painted silver |
| Flow rate measurement | with P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Metal container |
| Filter fineness | 5 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/4 |
| Flow rate | 800 l/min |
| Condensate drain | manually |
| DN | 6 |
| BG | 1 |
| A | 48 mm |
| C | 14 mm |
| D | 133.5 mm |
| H | 38 mm |
| Class name | EASY |
