RIEGLER Filter »Standard«, mit Metallbehälter, 5 µm, BG 2, G 3/8
Type number: 650 B/M.2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Standard" filter made of die-cast zinc, painted silver, for compressed air treatment, G 3/8 - type 650 B/M.2
The RIEGLER "Standard" filter, with metal container, 5 µm, BG 2, G 3/8 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast zinc, painted silver. The maximum inlet pressure is 25 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 3/8 - suitable for common industry standards. Filter fineness 5 µm, metal container. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| A | 70 mm |
| Container | Metal container |
| BG | 2 |
| C | 16 mm |
| D | 159 mm |
| DN | 10 |
| Flow 1 | 3100 l/min |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Inlet pressure max. | 25 bar |
| Filter fineness | 5 µm |
| Housing | Die-cast zinc, painted silver |
| Thread | G 3/8 |
| H | 50 mm |
| Class name | EASY |
| Condensate drain | manually |
| Medium temperature max. | 60 °C |
| Medium temperature min. | -10 °C |
| Series | Standard |
| Ambient temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100979] RIEGLER Filter »Standard« with metal container, 40 µm, Size 4, G 1 1/2](/web/image/product.template/140415/image_128/%5B100979%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%20with%20metal%20container%2C%2040%20%C2%B5m%2C%20Size%204%2C%20G%201%201-2?unique=027401e)
|
Type number: 650 G/M |
171.37 € | |

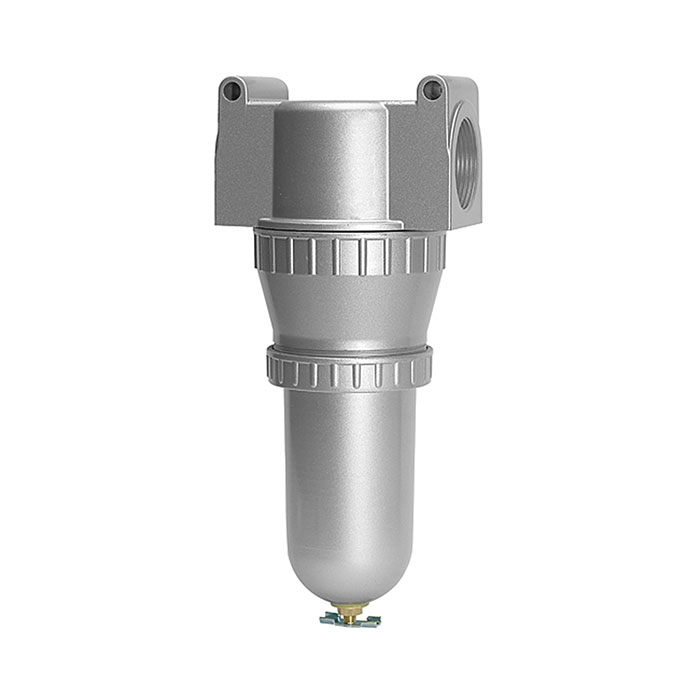

![[100978] RIEGLER Filter »Standard« with metal container, 40 µm, Size 4, G 1 1/4](/web/image/product.template/140414/image_128/%5B100978%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%20with%20metal%20container%2C%2040%20%C2%B5m%2C%20Size%204%2C%20G%201%201-4?unique=48ff7be)
|
Type number: 650 F/M |
198.83 € | |
![[100972] RIEGLER Filter »Standard« with metal container, 5 µm, Size 1, G 1/4](/web/image/product.template/140408/image_128/%5B100972%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%20with%20metal%20container%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%201-4?unique=d175fba)
|
Type number: 640.116 M |
25.29 € | |
![[100973] RIEGLER Filter »Standard« with metal container, 5 µm, Size 1, G 3/8](/web/image/product.template/140409/image_128/%5B100973%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%20with%20metal%20container%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%203-8?unique=f6b5f00)
|
Type number: 640.126 M |
25.29 € | |
![[100977] RIEGLER Filter »Standard« with metal container, 5 µm, Size 3, G 1](/web/image/product.template/140413/image_128/%5B100977%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%20with%20metal%20container%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%201?unique=52f9c5c)
|
Type number: 650 E/M |
95.24 € | |
![[100975] RIEGLER Filter »Standard« with metal container, 5 µm, Size 3, G 1/2](/web/image/product.template/140411/image_128/%5B100975%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%20with%20metal%20container%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%201-2?unique=d62e915)
|
Type number: 650 C/M |
47.06 € | |
![[100976] RIEGLER Filter »Standard« with metal container, 5 µm, Size 3, G 3/4](/web/image/product.template/140412/image_128/%5B100976%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%20with%20metal%20container%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%203-4?unique=d593744)
|
Type number: 650 D/M |
95.24 € | |
![[100980] RIEGLER Filter »Standard« with metal container, 60 µm, Size 5, G 2](/web/image/product.template/140416/image_128/%5B100980%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%20with%20metal%20container%2C%2060%20%C2%B5m%2C%20Size%205%2C%20G%202?unique=d7e5def)
|
Type number: 650 H/M |
475.49 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=16b9c4b)
|
Type number: 655.6.900 |
36.35 € | |
![[100944] RIEGLER Protective cage, for series »Standard«, Size 2, G 3/8](/web/image/product.template/140380/image_128/%5B100944%5D%20RIEGLER%20Protective%20cage%2C%20for%20series%20%C2%BBStandard%C2%AB%2C%20Size%202%2C%20G%203-8?unique=996854b)
|
Type number: SK 02 |
20.37 € | |

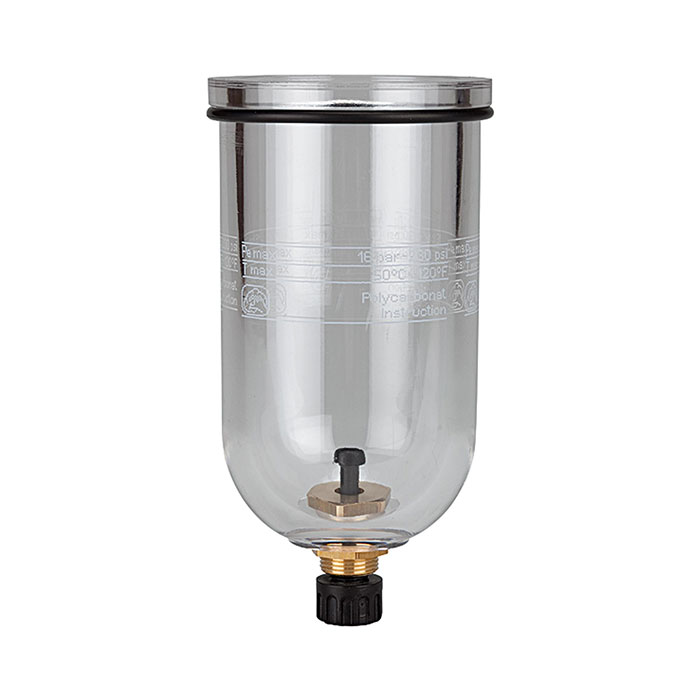

![[100946] RIEGLER PC container, for filter regulator / filter »Standard«, Size 2](/web/image/product.template/140382/image_128/%5B100946%5D%20RIEGLER%20PC%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=4b8ebd7)
|
Type number: 650/1-HA |
18.58 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100507] RIEGLER Filter element 5 µm, Cellpor, for »multifix« and »Standard«](/web/image/product.template/139942/image_128/%5B100507%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20Cellpor%2C%20for%20%C2%BBmultifix%C2%AB%20and%20%C2%BBStandard%C2%AB?unique=c07d854)
|
Type number: 633.6.905 |
13.89 € | |

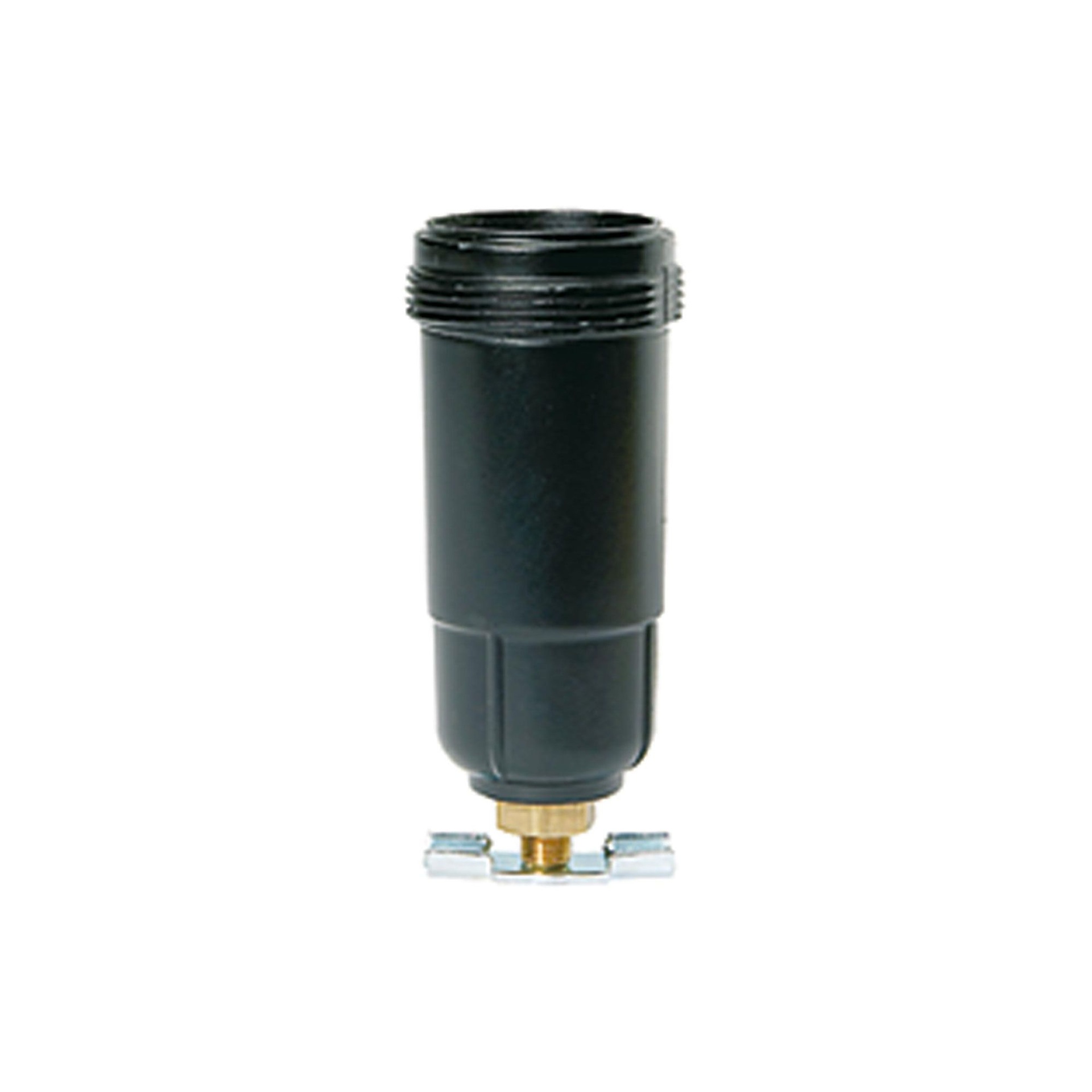

![[100947] RIEGLER Metal container, for filter regulator / filter »Standard«, Size 2](/web/image/product.template/140383/image_128/%5B100947%5D%20RIEGLER%20Metal%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=b9cc90f)
|
