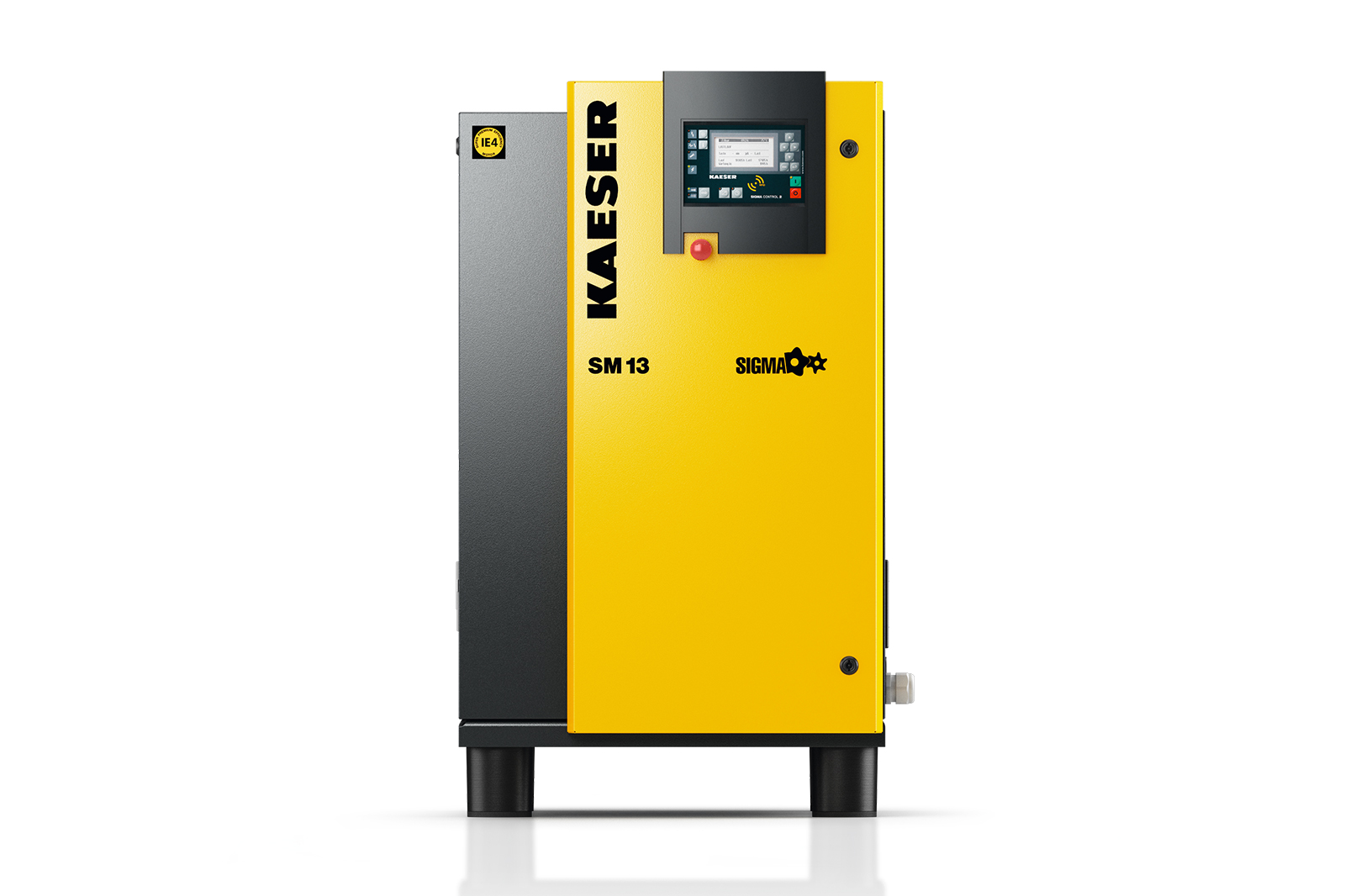

KAESER Screw compressor model SM 13-8 SC2 OAL
Volume flow at overpressure: 1.32 l/min | Maximum overpressure: 8 bar | Rated power of drive motor: 7.5 KW | Electrical connection: 400 V / 3 Ph / 50 Hz
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
The KAESER SM screw compressor with SIGMA PROFILE and SIGMA CONTROL 2 compressor control unit
| Volume flow at overpressure (m³/min) | 1,32 |
| Max. Overpressure (bar) | 8 |
| Rated power drive motor (kW) | 7,5 |
| Drive motor efficiency class | IE4 |
| Permissible pressure loss cooling channel (Pa) | 30 |
| Max. usable warm air volume (m³/h) | 2100 |
| Max. usable heat output "warm air" (kW) | 9,1 |
| Max. usable heat output "warm water" (kW) | 6,2 |
| Required supply air opening (m2) | 0,25 |
| Drive motor protection class | IP55 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Full load current | 16 A |
| Fuse: Max current | 20 A |
| Cooling fluid filling quantity (litres) | 4 |
| Width (mm) | 630 |
| Depth (mm) | 790 |
| Height (mm) | 1100 |
| Weight (kg) | 240 |
| Compressed air connection | G 3/4 |
| Sound pressure level (dbA) | 65 |
| Model range - Screw compressors | SM |
