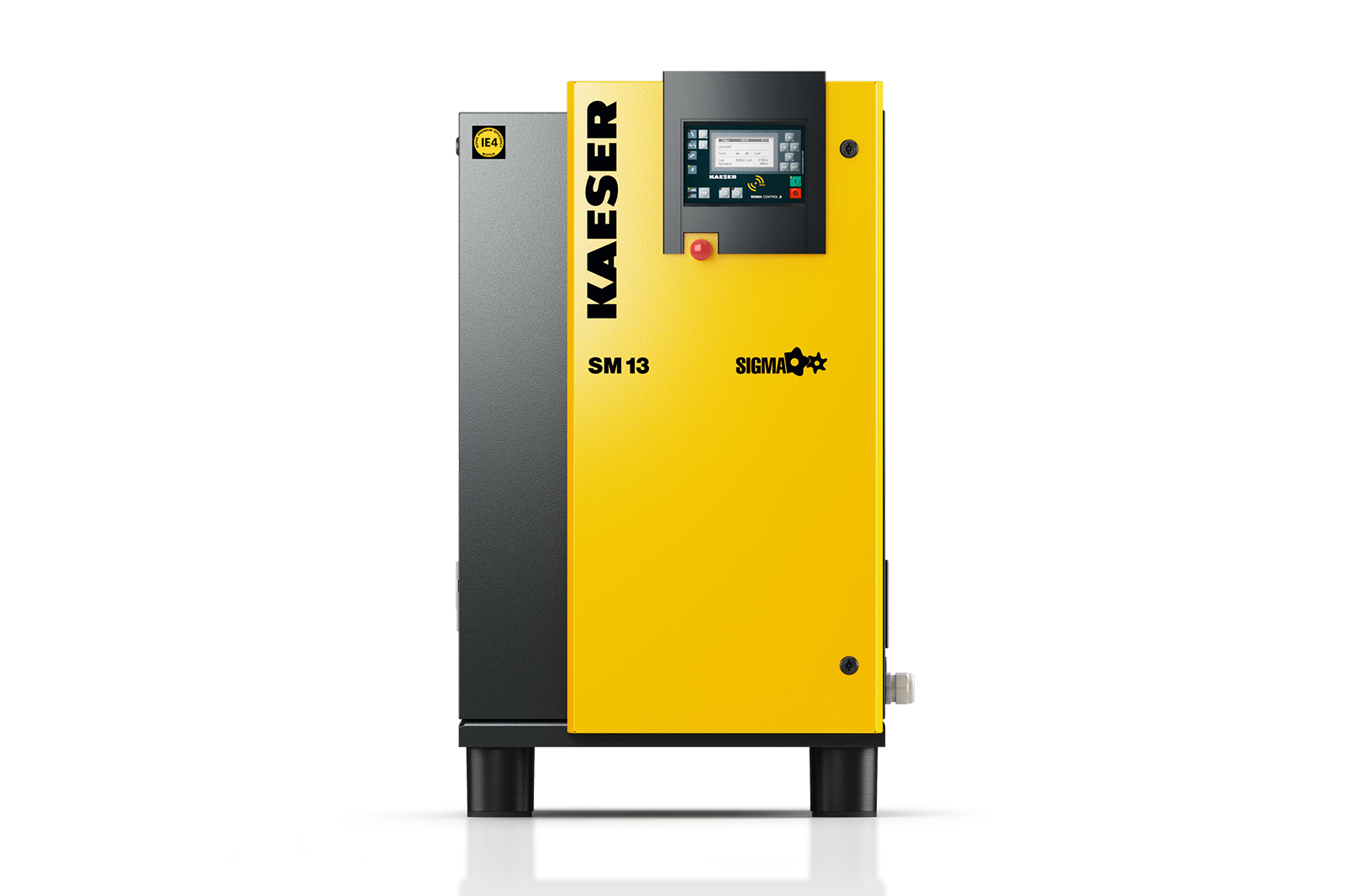

KAESER Screw compressor model SM 13-8 T SC2 OAL
Volume flow at overpressure: 1.32 l/min | Maximum overpressure: 8 bar | Rated power of drive motor: 7.5 KW | Electrical connection: 400 V / 3 Ph / 50 Hz
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
Product no. :
101740.0Category :
With Refrigeration DryerWeight :
315.00 kgDelivery area :
GermanyThe KAESER SM rotary screw compressor with SIGMA PROFILE, SIGMA CONTROL 2 compressor controller and refrigeration dryer
| Volume flow at overpressure (m³/min) | 1,32 |
| Rated power drive motor (kW) | 7,5 |
| Max. Overpressure (bar) | 8 |
| Drive motor efficiency class | IE4 |
| Permissible pressure loss cooling channel (Pa) | 30 |
| Max. usable warm air volume (m³/h) | 2100 |
| Max. usable heat output "warm air" (kW) | 9,1 |
| Max. usable heat output "warm water" (kW) | 6,2 |
| Required supply air opening (m2) | 0,3 |
| Drive motor protection class | IP55 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Full load current | 19 A |
| Fuse: Max current | 25 A |
| Cooling fluid filling quantity (litres) | 4 |
| Width (mm) | 630 |
| Depth (mm) | 1090 |
| Height (mm) | 1100 |
| Weight (kg) | 315 |
| Compressed air connection | G 3/4 |
| Sound pressure level (dbA) | 65 |
| Refrigeration dryer power consumption (kW) | 0,49 |
| Refrigeration dryer pressure dew point (°C) | 3 |
| Refrigeration dryer pressure loss (bar) | 0,15 |
| Refrigerant | R-513A |
| Refrigerant charge (kg) | 0,39 |
| CO2 equivalent (tonnes) | 0,25 |
| Global warming potential GWP | 631 |
| Model range - Screw compressors | SM |
