RIEGLER Standard pressure gauge, CrNi steel, G 1/4, 0 - 40 bar, Ø 50
Type number: 4169
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
102447EAN :
4047322276528Category :
Stainless Steel Pressure GaugesWeight :
0.09 kgStandard pressure gauge CrNi steel design, Connection, rear, centric, G 1/4, Goods class 2.5, Measurement range 0 - 40 bar, Ø 50
| Medium temperature min. | -40 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -40 °C |
| Ambient temperature max. | 60 °C |
| Material | CrNi steel |
| Type | 131.11 |
| Viewing window | Polycarbonate |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 40 |
| Measuring range min. psi | 0 |
| Diameter | 50 mm |
| Graduation value in the bar range | 2 bar |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | G 1/4 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Measuring range max. psi | 580 |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Quality class | 45414 |
| Connection position | rear, centric |
| Class name | STAINLESS STEEL |
| Process connection material | CrNi steel |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[102438] RIEGLER Standard pressure gauge, CrNi steel, G 1/4, 0 - 100 bar, Ø 40](/web/image/product.template/170410/image_128/%5B102438%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20CrNi%20steel%2C%20G%201-4%2C%200%20-%20100%20bar%2C%20%C3%98%2040?unique=9e6f773)
|
Type number: 4151 |
87.14 € | |
![[102449] RIEGLER Standard pressure gauge, CrNi steel, G 1/4, 0 - 100 bar, Ø 50](/web/image/product.template/170421/image_128/%5B102449%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20CrNi%20steel%2C%20G%201-4%2C%200%20-%20100%20bar%2C%20%C3%98%2050?unique=f858913)
|
Type number: 4171 |
87.14 € | |
![[102433] RIEGLER Standard pressure gauge, CrNi steel, G 1/4, 0 - 10 bar, Ø 40](/web/image/product.template/170405/image_128/%5B102433%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20CrNi%20steel%2C%20G%201-4%2C%200%20-%2010%20bar%2C%20%C3%98%2040?unique=696ce0a)
|
Type number: 4146 |
87.14 € | |
![[102444] RIEGLER Standard pressure gauge, CrNi steel, G 1/4, 0 - 10 bar, Ø 50](/web/image/product.template/170416/image_128/%5B102444%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20CrNi%20steel%2C%20G%201-4%2C%200%20-%2010%20bar%2C%20%C3%98%2050?unique=f5d089d)
|
Type number: 4166 |
87.14 € | |
![[102429] RIEGLER Standard pressure gauge, CrNi steel, G 1/4, 0 - 1.6 bar, Ø 40](/web/image/product.template/170401/image_128/%5B102429%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20CrNi%20steel%2C%20G%201-4%2C%200%20-%201.6%20bar%2C%20%C3%98%2040?unique=ab9c79f)
|
Type number: 4142 |
87.14 € | |
![[102434] RIEGLER Standard pressure gauge, CrNi steel, G 1/4, 0 - 16 bar, Ø 40](/web/image/product.template/170406/image_128/%5B102434%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20CrNi%20steel%2C%20G%201-4%2C%200%20-%2016%20bar%2C%20%C3%98%2040?unique=ae7f86a)
|
Type number: 4147 |
87.14 € | |
![[102440] RIEGLER Standard pressure gauge, CrNi steel, G 1/4, 0 - 1.6 bar, Ø 50](/web/image/product.template/170412/image_128/%5B102440%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20CrNi%20steel%2C%20G%201-4%2C%200%20-%201.6%20bar%2C%20%C3%98%2050?unique=c109e80)
|
Type number: 4162 |
87.14 € | |
![[102445] RIEGLER Standard pressure gauge, CrNi steel, G 1/4, 0 - 16 bar, Ø 50](/web/image/product.template/170417/image_128/%5B102445%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20CrNi%20steel%2C%20G%201-4%2C%200%20-%2016%20bar%2C%20%C3%98%2050?unique=d81a35a)
|
Type number: 4167 |
87.14 € | |
![[102428] RIEGLER Standard pressure gauge, CrNi steel, G 1/4, 0 - 1 bar, Ø 40](/web/image/product.template/170400/image_128/%5B102428%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20CrNi%20steel%2C%20G%201-4%2C%200%20-%201%20bar%2C%20%C3%98%2040?unique=a45894d)
|
Type number: 4141 |
87.14 € | |
![[102439] RIEGLER Standard pressure gauge, CrNi steel, G 1/4, 0 - 1 bar, Ø 50](/web/image/product.template/170411/image_128/%5B102439%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20CrNi%20steel%2C%20G%201-4%2C%200%20-%201%20bar%2C%20%C3%98%2050?unique=974bf73)
|
Type number: 4161 |
87.14 € | |
![[102430] RIEGLER Standard pressure gauge, CrNi steel, G 1/4, 0 - 2.5 bar, Ø 40](/web/image/product.template/170402/image_128/%5B102430%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20CrNi%20steel%2C%20G%201-4%2C%200%20-%202.5%20bar%2C%20%C3%98%2040?unique=f1f7a42)
|
Type number: 4143 |
87.14 € | |
![[102435] RIEGLER Standard pressure gauge, CrNi steel, G 1/4, 0 - 25 bar, Ø 40](/web/image/product.template/170407/image_128/%5B102435%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20CrNi%20steel%2C%20G%201-4%2C%200%20-%2025%20bar%2C%20%C3%98%2040?unique=6311a61)
|
Type number: 4148 |
87.14 € | |
![[102441] RIEGLER Standard pressure gauge, CrNi steel, G 1/4, 0 - 2.5 bar, Ø 50](/web/image/product.template/170413/image_128/%5B102441%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20CrNi%20steel%2C%20G%201-4%2C%200%20-%202.5%20bar%2C%20%C3%98%2050?unique=7743c3e)
|
Type number: 4163 |
87.14 € | |
![[102446] RIEGLER Standard pressure gauge, CrNi steel, G 1/4, 0 - 25 bar, Ø 50](/web/image/product.template/170418/image_128/%5B102446%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20CrNi%20steel%2C%20G%201-4%2C%200%20-%2025%20bar%2C%20%C3%98%2050?unique=048b816)
|
Type number: 4168 |
87.14 € | |
![[102436] RIEGLER Standard pressure gauge, CrNi steel, G 1/4, 0 - 40 bar, Ø 40](/web/image/product.template/170408/image_128/%5B102436%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20CrNi%20steel%2C%20G%201-4%2C%200%20-%2040%20bar%2C%20%C3%98%2040?unique=7ae364f)
|
Type number: 4149 |
87.14 € | |
![[102431] RIEGLER Standard pressure gauge, CrNi steel, G 1/4, 0 - 4 bar, Ø 40](/web/image/product.template/170403/image_128/%5B102431%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20CrNi%20steel%2C%20G%201-4%2C%200%20-%204%20bar%2C%20%C3%98%2040?unique=ba5645c)
|
Type number: 4144 |
87.14 € | |
![[102442] RIEGLER Standard pressure gauge, CrNi steel, G 1/4, 0 - 4 bar, Ø 50](/web/image/product.template/170414/image_128/%5B102442%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20CrNi%20steel%2C%20G%201-4%2C%200%20-%204%20bar%2C%20%C3%98%2050?unique=d311fb7)
|
Type number: 4164 |
87.14 € | |
![[102437] RIEGLER Standard pressure gauge, CrNi steel, G 1/4, 0 - 60 bar, Ø 40](/web/image/product.template/170409/image_128/%5B102437%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20CrNi%20steel%2C%20G%201-4%2C%200%20-%2060%20bar%2C%20%C3%98%2040?unique=5abc198)
|
Type number: 4150 |
87.14 € | |

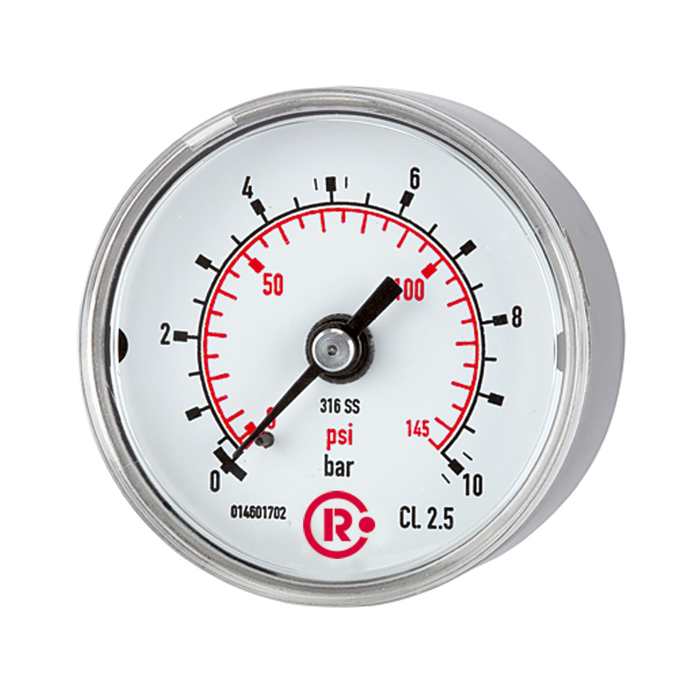

![[102448] RIEGLER Standard pressure gauge, CrNi steel, G 1/4, 0 - 60 bar, Ø 50](/web/image/product.template/170420/image_128/%5B102448%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20CrNi%20steel%2C%20G%201-4%2C%200%20-%2060%20bar%2C%20%C3%98%2050?unique=8e5975c)
|
