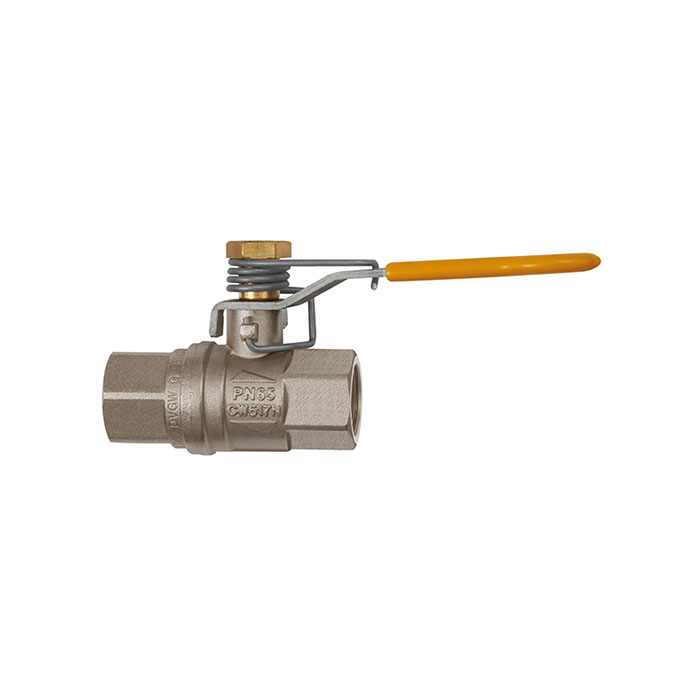

RIEGLER Ball valve with spring reset, nickel-plated brass, Rp 2
Type number: KHF-20
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ball valve with spring return, nickel-plated brass, operating temp. -40 °C to 170 °C, Rp 2, DN 50, PN max. 40 bar
| Housing | Nickel-plated brass |
| Ball | Hard chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | FKM |
| Hand lever | Steel - PVC coated |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 170 °C |
| Spring | Stainless steel 1.4301 |
| Thread | Rp 2 |
| DN | 50 |
| PN | 40 bar |
| Thread standard | Rp thread according to ISO 7-1 |
| A | 158 mm |
| B | 88 mm |
| L | 140 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Thread material | Nickel-plated brass |
| Class name | MAX |
