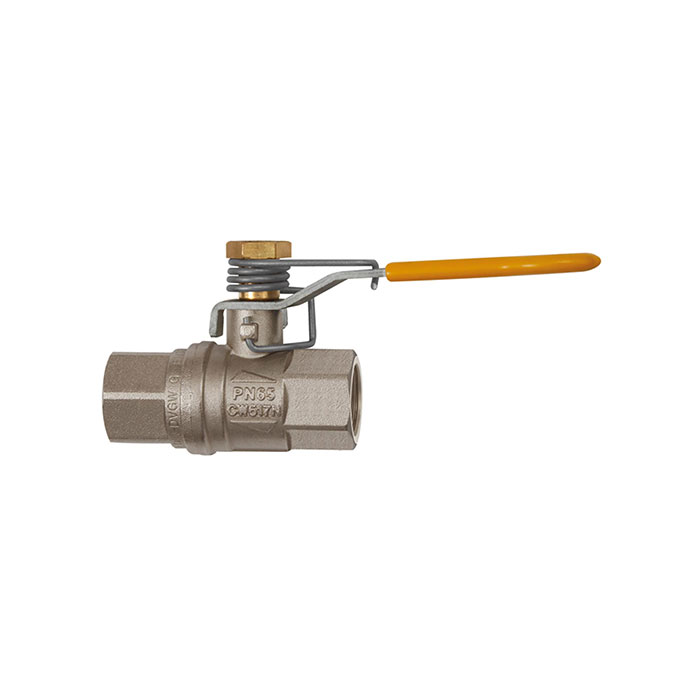

RIEGLER Ball valve with spring reset, nickel-plated brass, Rp 1/2
Type number: KHF-12
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Nickel-plated brass safety ball valve, for industrial systems, Rp 1/2 - type KHF-12
The RIEGLER safety ball valve, spring return, MS nickel-plated, Rp 1/2, DN 15 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of nickel-plated brass. The operating temperature is between -40 °C and 170 °C. Connection thread Rp 1/2 (Rp thread to ISO 7-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Nickel-plated brass |
| Ball | Hard chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | FKM |
| Hand lever | Steel - PVC coated |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 170 °C |
| Spring | Stainless steel 1.4301 |
| Thread | Rp 1/2 |
| DN | 15 |
| PN | 65 bar |
| Thread standard | Rp thread according to ISO 7-1 |

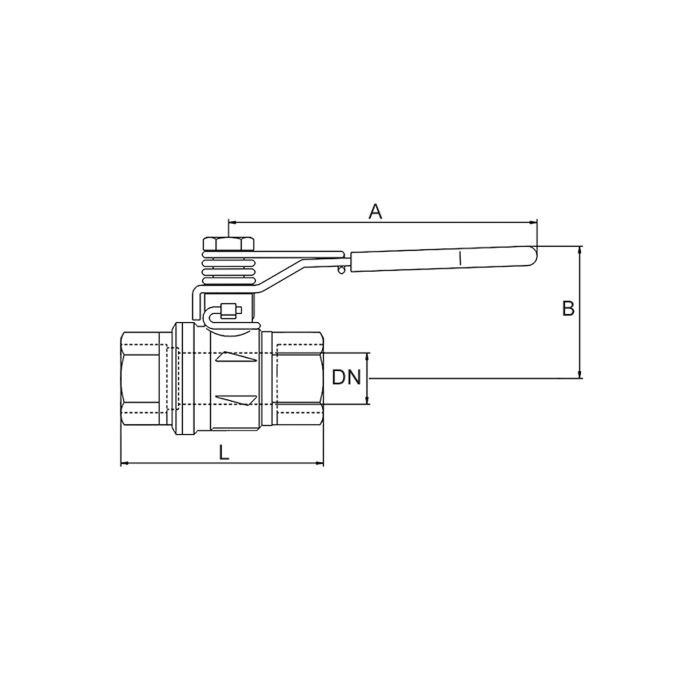

| A | 100 mm |
| B | 43 mm |
| L | 75 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Thread material | Nickel-plated brass |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103231] RIEGLER Ball valve with spring reset, nickel-plated brass, Rp 1](/web/image/product.template/171200/image_128/%5B103231%5D%20RIEGLER%20Ball%20valve%20with%20spring%20reset%2C%20nickel-plated%20brass%2C%20Rp%201?unique=fd3dec7)
|
Type number: KHF-10 |
92.92 € | |
![[103233] RIEGLER Ball valve with spring reset nickel-plated brass, Rp 1 1/2](/web/image/product.template/171202/image_128/%5B103233%5D%20RIEGLER%20Ball%20valve%20with%20spring%20reset%20nickel-plated%20brass%2C%20Rp%201%201-2?unique=c5ede9d)
|
Type number: KHF-112 |
187.48 € | |
![[103232] RIEGLER Ball valve with spring reset nickel-plated brass, Rp 1 1/4](/web/image/product.template/171201/image_128/%5B103232%5D%20RIEGLER%20Ball%20valve%20with%20spring%20reset%20nickel-plated%20brass%2C%20Rp%201%201-4?unique=621fbf4)
|
Type number: KHF-114 |
138.65 € | |
![[103227] RIEGLER Ball valve with spring reset, nickel-plated brass, Rp 1/4](/web/image/product.template/171196/image_128/%5B103227%5D%20RIEGLER%20Ball%20valve%20with%20spring%20reset%2C%20nickel-plated%20brass%2C%20Rp%201-4?unique=67add70)
|
Type number: KHF-14 |
47.97 € | |
![[103234] RIEGLER Ball valve with spring reset, nickel-plated brass, Rp 2](/web/image/product.template/171203/image_128/%5B103234%5D%20RIEGLER%20Ball%20valve%20with%20spring%20reset%2C%20nickel-plated%20brass%2C%20Rp%202?unique=e6fa557)
|
Type number: KHF-20 |
285.37 € | |
![[103230] RIEGLER Ball valve with spring reset, nickel-plated brass, Rp 3/4](/web/image/product.template/171199/image_128/%5B103230%5D%20RIEGLER%20Ball%20valve%20with%20spring%20reset%2C%20nickel-plated%20brass%2C%20Rp%203-4?unique=e331b27)
|
Type number: KHF-34 |
62.70 € | |

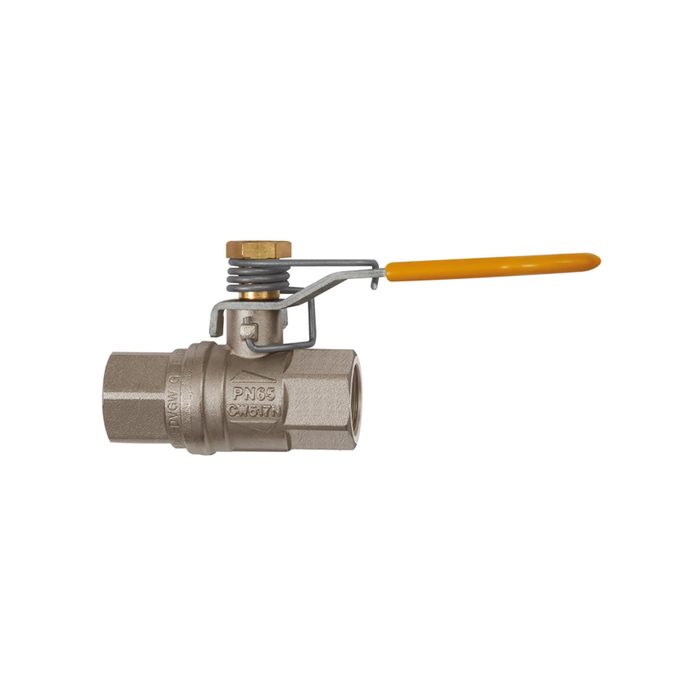

![[103228] RIEGLER Ball valve with spring reset, nickel-plated brass, Rp 3/8](/web/image/product.template/171197/image_128/%5B103228%5D%20RIEGLER%20Ball%20valve%20with%20spring%20reset%2C%20nickel-plated%20brass%2C%20Rp%203-8?unique=384154d)
|
