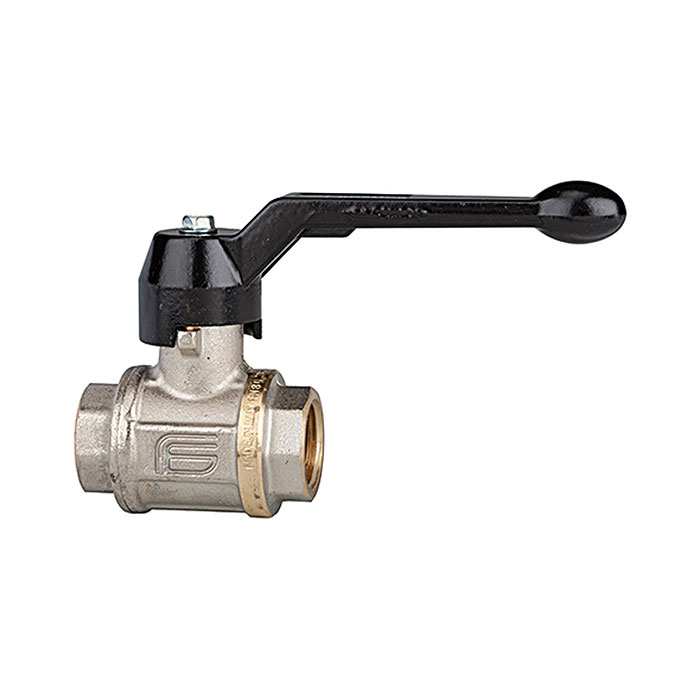

RIEGLER Ball valve heavy duty design, Manual lever, IT/IT, G 2
Type number: 3350.09
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ball valve, heavy-duty design, hand lever, IG/IG, nickel-plated brass, operating temp. -20 °C to 130 °C, G 2, DN 50, PN max. 63 bar
| Housing | Nickel-plated brass |
| Ball | Hard chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | PTFE |
| Hand lever | Aluminum, painted black |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 130 °C |
| Thread | G 2 |
| DN | 50 |
| SW | 69 mm |
| PN | 63 bar |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| A | 175 mm |
| B | 115.5 mm |
| L | 121 mm |
| E | 20.5 mm |
| F | 20.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Brass bright |
| Class name | MAX |
