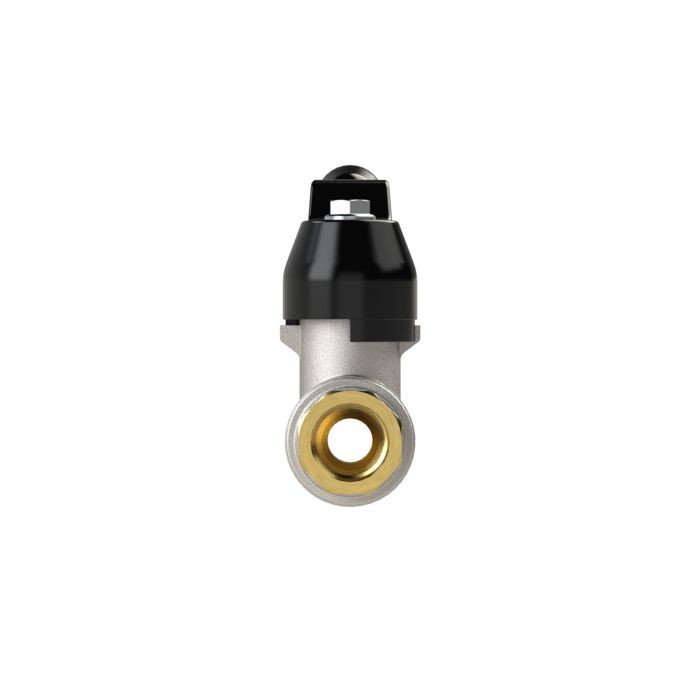

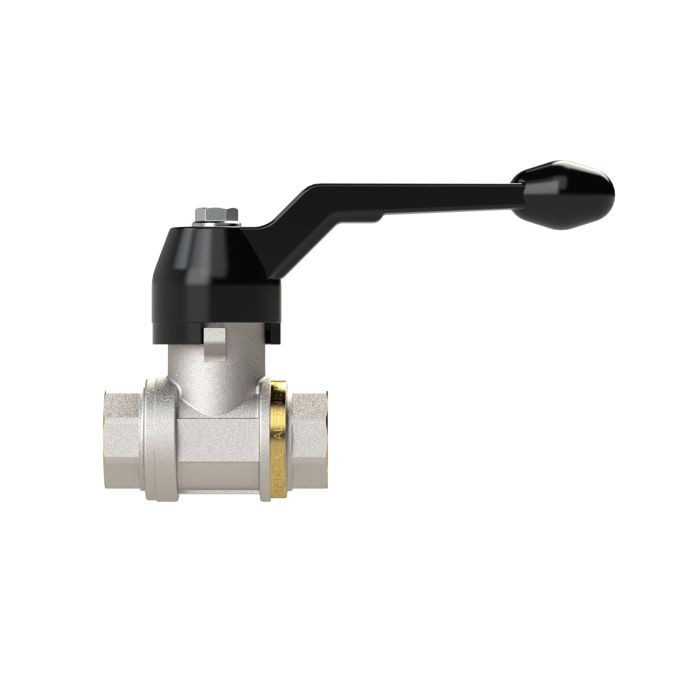

RIEGLER Ball valve heavy duty design, Manual lever, IT/IT, G 1 1/4
Type number: 3350.07
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Ball valve, heavy-duty version, nickel-plated brass, for industrial installations, G 1 1/4 - Type 3350.07
The RIEGLER heavy-duty ball valve, hand lever, IG/IG, MS nickel-plated, G 1 1/4 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of nickel-plated brass. The operating temperature is between -20 °C and 130 °C. Connection thread G 1 1/4 (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Nickel-plated brass |
| Ball | Hard chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | PTFE |
| Hand lever | Aluminum, painted black |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 130 °C |
| Thread | G 1 1/4 |
| DN | 32 |
| SW | 49 mm |
| PN | 80 bar |
| Thread standard | G-thread according to DIN EN ISO 228-1 |

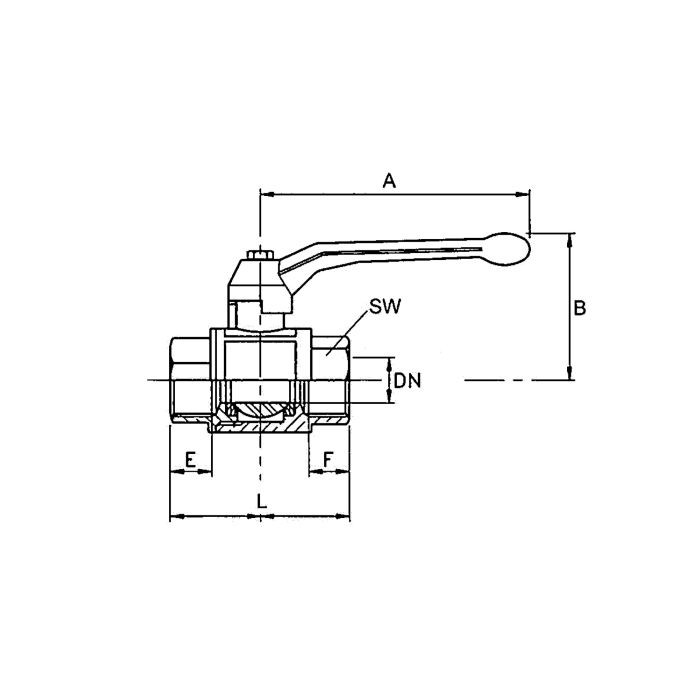

| A | 150 mm |
| B | 94 mm |
| L | 85 mm |
| E | 13.5 mm |
| F | 13.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Brass bright |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

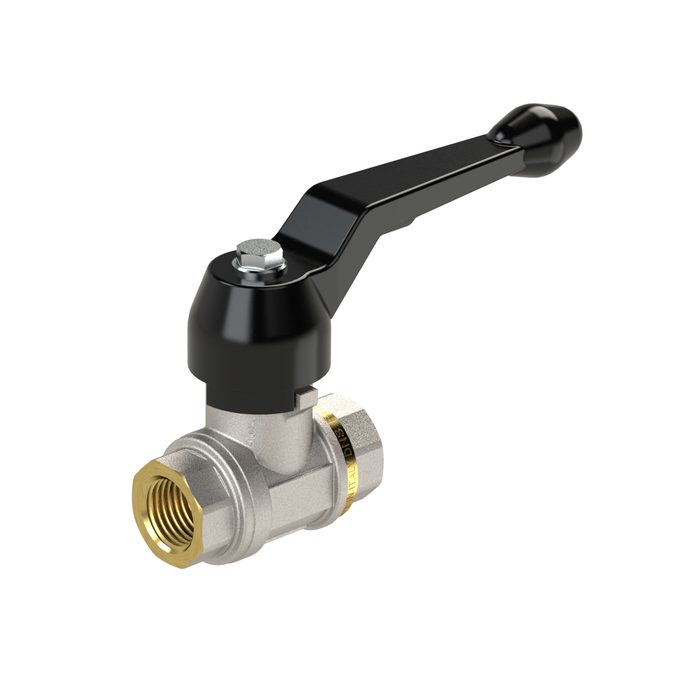

![[103265] RIEGLER Ball valve heavy duty design, Manual lever, IT/IT, G 1](/web/image/product.template/171232/image_128/%5B103265%5D%20RIEGLER%20Ball%20valve%20heavy%20duty%20design%2C%20Manual%20lever%2C%20IT-IT%2C%20G%201?unique=a163583)
|
Type number: 3350.06 |
31.02 € | |
![[103267] RIEGLER Ball valve heavy duty design, Manual lever, IT/IT, G 1 1/2](/web/image/product.template/171234/image_128/%5B103267%5D%20RIEGLER%20Ball%20valve%20heavy%20duty%20design%2C%20Manual%20lever%2C%20IT-IT%2C%20G%201%201-2?unique=22bf617)
|
Type number: 3350.08 |
57.35 € | |

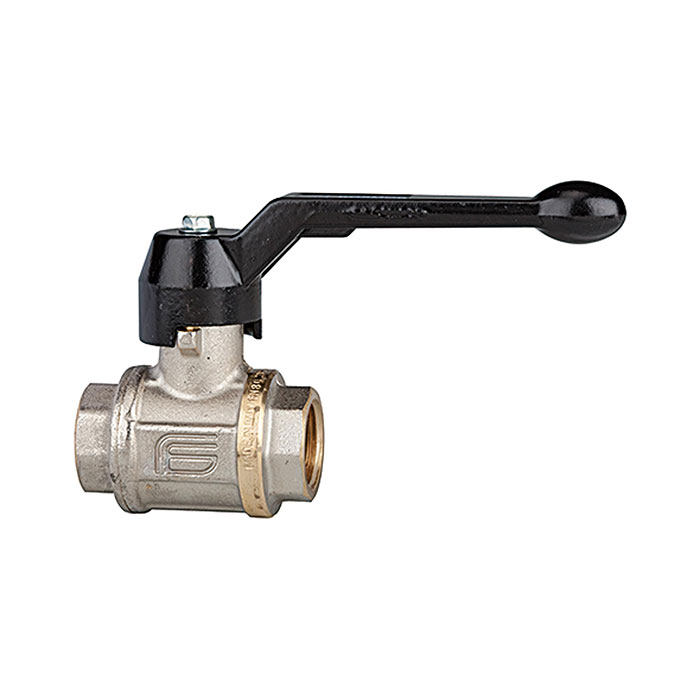

![[103263] RIEGLER Ball valve heavy duty design, Manual lever, IT/IT, G 1/2](/web/image/product.template/171230/image_128/%5B103263%5D%20RIEGLER%20Ball%20valve%20heavy%20duty%20design%2C%20Manual%20lever%2C%20IT-IT%2C%20G%201-2?unique=aa147b3)
|
