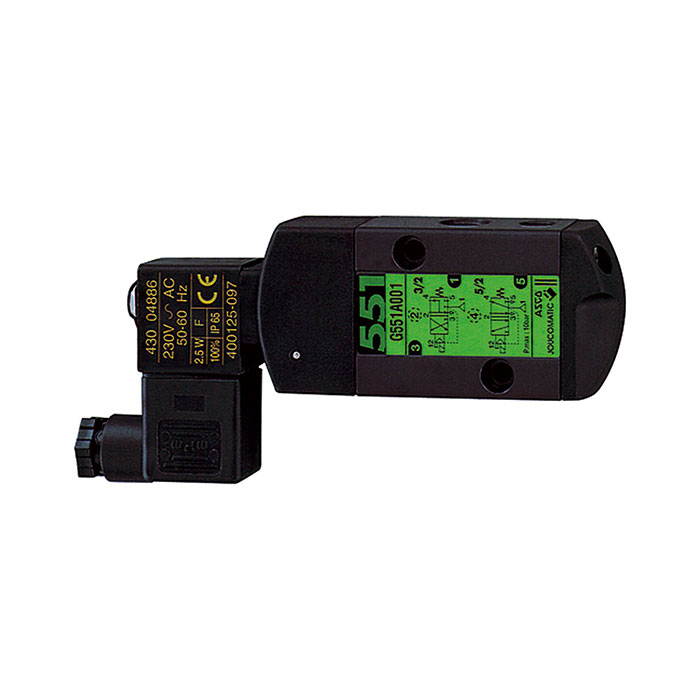

RIEGLER 3/2-5/2-way valve, NAMUR, G 1/4 (1), G 1/8 (3+5), 230 V, 50 Hz
Type number: 551.01
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2-5/2-way valve made of aluminium, black anodized, for pneumatic control - Type 551.01
The RIEGLER 3/2-5/2-way valve, NAMUR, G 1/4 (1), G 1/8 (3 + 5), 230 V, 50 Hz controls the direction of the compressed air flow for targeted movement sequences. The housing is made of black anodized aluminium with NBR and PUR seals. The operating temperature is between -25 °C and 60 °C. Connection thread G 1/4 (connection 1), G 1/8 (connection 3 and 5) - suitable for common industry standards. Suitable for air, neutral gases (filtered). The flow rate is 700 l/min. Operating voltage 230 V, 50 Hz. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Medium | Air, neutral gases (filtered) |
| Housing | Aluminium, black anodized |
| Sealing material | NBR and PUR |
| Electrical connection | Cable plug PG 9P, 3 x DIN 46244 / VDE 0580 |
| Operating temperature min. | -25 °C |
| Operating temperature max. | 60 °C |
| Differential pressure min. | 2 bar |
| max. differential pressure (bar) | 10 bar |
| Permissible static pressure max. | 10 bar |
| Manual override | resting |
| Flow rate | 700 l/min |
| DN | 6 |
| Tension | 230 V, 50 Hz |
| Connection | G 1/4 (connection 1), G 1/8 (connection 3 and 5) |
| Class name | MAX |
