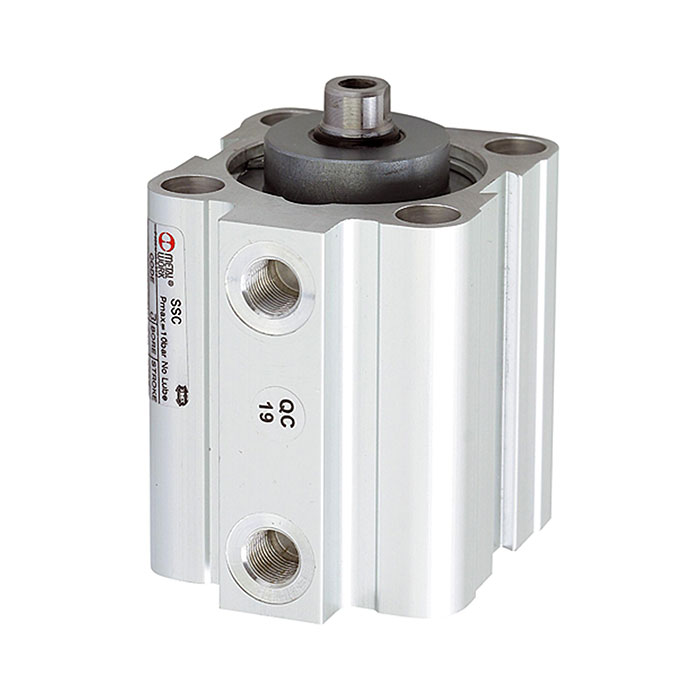

RIEGLER Short stroke cylinder, double-acting, Piston Ø 20, Stroke 5, M5

https://www.filcom-technik.de/web/image/product.template/173853/image_1920?unique=782cf67

Type number: 3.DM.20005

62.64 € 62.64 EUR 62.64 € VAT Included

73.12 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

105906

EAN :

4047322070362

Category :

Short-Stroke Cylinders

Weight :

0.10 kg

Short-stroke cylinder, double-acting, with solenoid, piston Ø 20, stroke 5, M5, max. working pressure 10 bar, temp. -10 °C to 80 °C

Temperature range min. -10 °C
Temperature range max. 80 °C
Working pressure max. 10 bar
Pipe Aluminium alloy, anodized
Piston rod seal NBR (PU and FKM at extra charge)
Piston seal NBR (PU and FKM at extra charge)
Piston Ø 20 mm
Function double-acting
Response pressure min. 0.6 bar
Stroke 5 mm
Piston rods IG M5
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
Connection M5
Piston rod C45 steel, hard chrome-plated
Head Lacquered brass
Piston Acetal synthetic resin
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification CW614N
Class name PLUS
Magnet with magnet
Damping without adjustable damping
Thread piston rod Internal thread on the piston rod

Accessoires and suitable extensions

Product Price
[105966] RIEGLER Magnetic sensor Reed, for short stroke cylinder, Piston Ø 12 - 80

Type number: 435.779-M

 35.80 €

Maintenance, wear and spare parts

Product Price

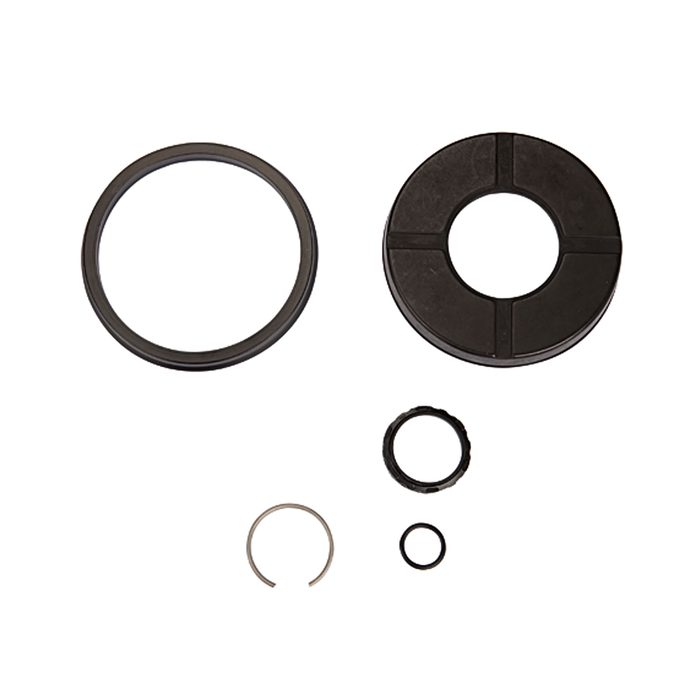

[129886] RIEGLER Seal kit, for short-stroke cylinders, piston Ø 20, NBR seal

Type number: 435.7020-NBR

 9.03 €
