RIEGLER Short stroke cylinder, double-acting, Piston Ø 20, Stroke 40, M5
Type number: 3.DM.20040
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Short-stroke cylinder, double-acting, with solenoid, piston Ø 20, stroke 40, M5, max. working pressure 10 bar, temp. -10 °C to 80 °C
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Working pressure max. | 10 bar |
| Pipe | Aluminium alloy, anodized |
| Piston rod seal | NBR (PU and FKM at extra charge) |
| Piston seal | NBR (PU and FKM at extra charge) |
| Piston Ø | 20 mm |
| Function | double-acting |
| Response pressure min. | 0.6 bar |
| Stroke | 40 mm |
| Piston rods IG | M5 |
| Connection | M5 |
| Piston rod | C45 steel, hard chrome-plated |
| Head | Lacquered brass |
| Piston | Acetal synthetic resin |
| Class name | PLUS |
| Magnet | with magnet |
| Damping | without adjustable damping |
| Thread piston rod | Internal thread on the piston rod |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

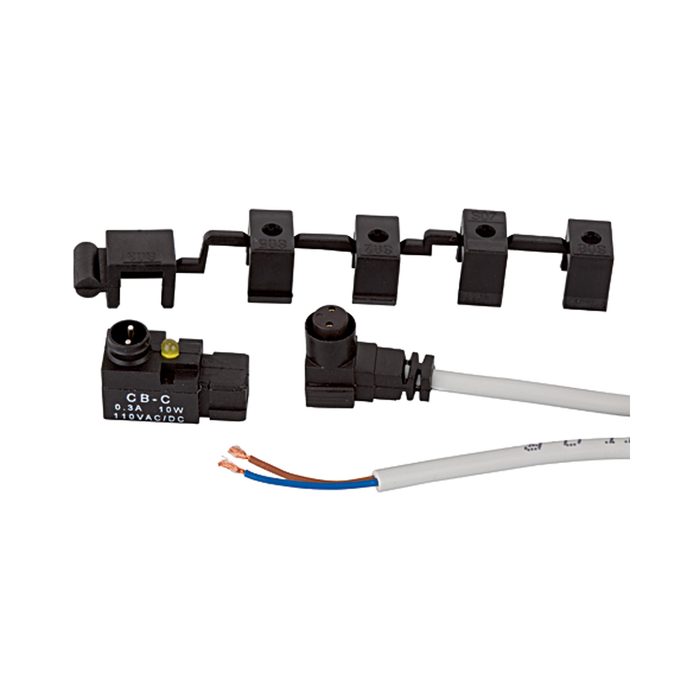

![[105966] RIEGLER Magnetic sensor Reed, for short stroke cylinder, Piston Ø 12 - 80](/web/image/product.template/173913/image_128/%5B105966%5D%20RIEGLER%20Magnetic%20sensor%20Reed%2C%20for%20short%20stroke%20cylinder%2C%20Piston%20%C3%98%2012%20-%2080?unique=c7be878)
|
Type number: 435.779-M |
35.80 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[129886] RIEGLER Seal kit, for short-stroke cylinders, piston Ø 20, NBR seal](/web/image/product.template/273098/image_128/%5B129886%5D%20RIEGLER%20Seal%20kit%2C%20for%20short-stroke%20cylinders%2C%20piston%20%C3%98%2020%2C%20NBR%20seal?unique=0bf6fad)
|
Type number: 435.7020-NBR |
9.03 € | |
