RIEGLER Short stroke cylinder double-acting, Piston Ø 25, Stroke 5, G 1/8
Type number: 3.DM.25005
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Short-stroke cylinder, double-acting, with solenoid, piston Ø 25, stroke 5, G 1/8, max. working pressure 10 bar, temp. -10 °C to 80 °C
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Working pressure max. | 10 bar |
| Pipe | Aluminium alloy, anodized |
| Piston rod seal | NBR (PU and FKM at extra charge) |
| Piston seal | NBR (PU and FKM at extra charge) |
| Piston Ø | 25 mm |
| Function | double-acting |
| Response pressure min. | 0.6 bar |
| Stroke | 5 mm |
| Piston rods IG | M5 |
| Connection | G 1/8 |
| Piston rod | C45 steel, hard chrome-plated |
| Head | Lacquered brass |
| Piston | Acetal synthetic resin |
| Class name | PLUS |
| Magnet | with magnet |
| Damping | without adjustable damping |
| Thread piston rod | Internal thread on the piston rod |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[105966] RIEGLER Magnetic sensor Reed, for short stroke cylinder, Piston Ø 12 - 80](/web/image/product.template/173913/image_128/%5B105966%5D%20RIEGLER%20Magnetic%20sensor%20Reed%2C%20for%20short%20stroke%20cylinder%2C%20Piston%20%C3%98%2012%20-%2080?unique=c7be878)
|
Type number: 435.779-M |
35.80 € | |

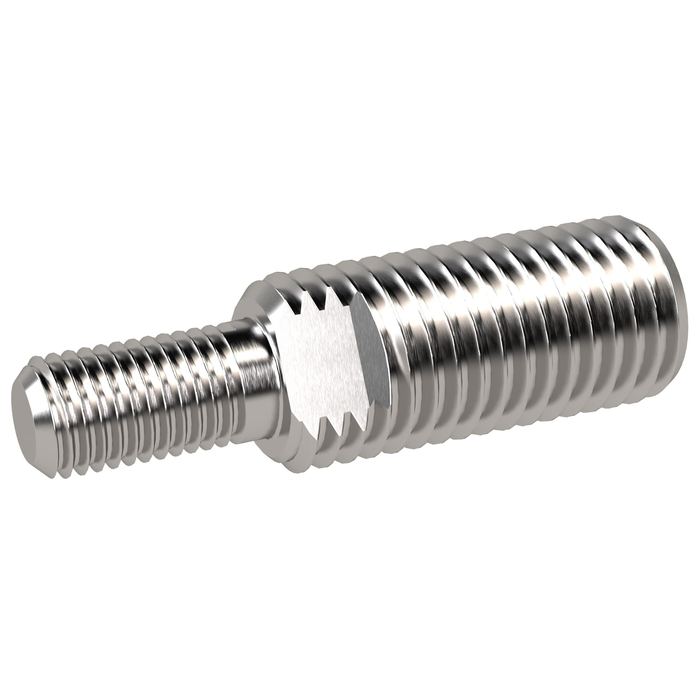

![[145361] RIEGLER Threaded nipple M10x1.25, for piston rod internal thread M5, piston Ø 25 mm](/web/image/product.template/279172/image_128/%5B145361%5D%20RIEGLER%20Threaded%20nipple%20M10x1.25%2C%20for%20piston%20rod%20internal%20thread%20M5%2C%20piston%20%C3%98%2025%20mm?unique=e6357f3)
|
Type number: 219002500 |
4.25 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[129887] RIEGLER Seal kit, for short-stroke cylinders, piston Ø 25, NBR seal](/web/image/product.template/273099/image_128/%5B129887%5D%20RIEGLER%20Seal%20kit%2C%20for%20short-stroke%20cylinders%2C%20piston%20%C3%98%2025%2C%20NBR%20seal?unique=d436855)
|
Type number: 435.7025-NBR |
10.81 € | |

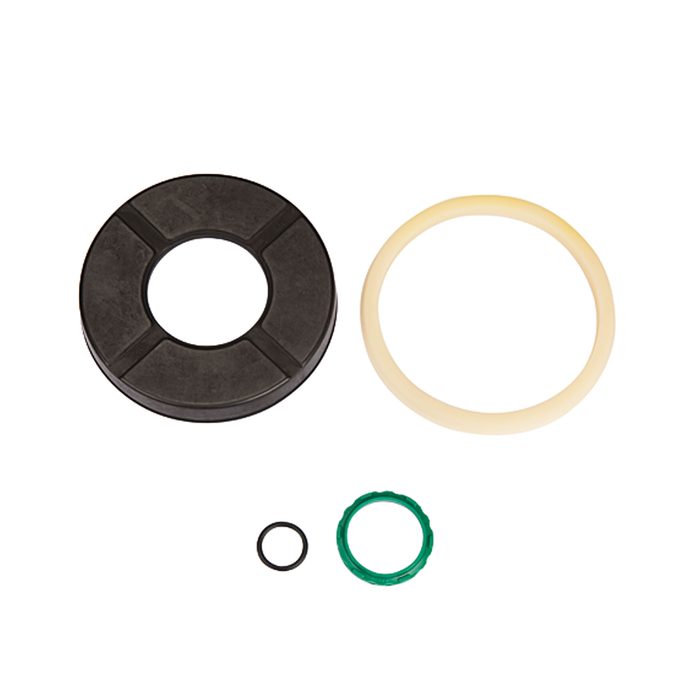

![[129896] RIEGLER Seal kit, for short-stroke cylinders, piston Ø 25, PU seal](/web/image/product.template/273108/image_128/%5B129896%5D%20RIEGLER%20Seal%20kit%2C%20for%20short-stroke%20cylinders%2C%20piston%20%C3%98%2025%2C%20PU%20seal?unique=cdefe6c)
|
Type number: 435.7025-PU |
16.62 € | |
