RIEGLER Short stroke cylinder double-acting, Piston Ø 25, Stroke 5, G 1/8

Price:

59.37 €

RIEGLER Short stroke cylinder double-acting, PistonØ 25, Stroke 50, G 1/8
RIEGLER Short stroke cylinder double-acting, PistonØ 25, Stroke 50, G 1/8
62.17 € 62.17 €
RIEGLER Short stroke cylinder double-acting, PistonØ 32, Stroke 10, G 1/8
RIEGLER Short stroke cylinder double-acting, PistonØ 32, Stroke 10, G 1/8
64.56 € 64.56 €

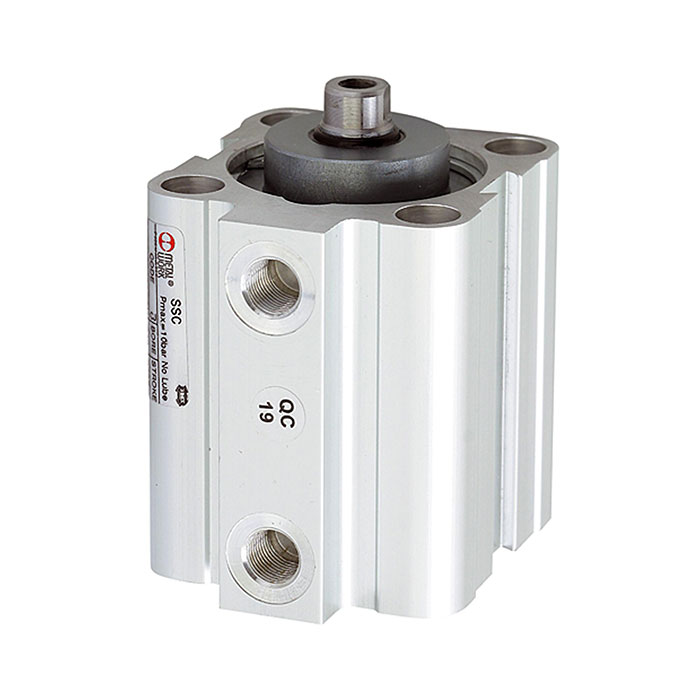

RIEGLER Short stroke cylinder double-acting, Piston Ø 25, Stroke 5, G 1/8

https://www.filcom-technik.de/web/image/product.template/173859/image_1920?unique=9218e0a

Type number: 3.DM.25005

EAN: 4047322070423

59.37 € 59.370000000000005 EUR 59.37 € VAT Included

76.75 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

105912

EAN :

4047322070423

Weight :

0.16 kg

Short-stroke cylinder, double-acting, with solenoid, piston Ø 25, stroke 5, G 1/8, max. working pressure 10 bar, temp. -10 °C to 80 °C

Temperature range min. -10 °C
Temperature range max. 80 °C
Working pressure max. 10 bar
Pipe Aluminium alloy, anodized
Piston rod seal NBR (PU and FKM at extra charge)
Piston seal NBR (PU and FKM at extra charge)
Piston Ø 25 mm
Function double-acting
Response pressure min. 0.6 bar
Stroke 5 mm
Piston rods IG M5
Connection G 1/8
Piston rod C45 steel, hard chrome-plated
Head Lacquered brass
Piston Acetal synthetic resin
Class name PLUS
Magnet with magnet
Damping without adjustable damping
Thread piston rod Internal thread on the piston rod
