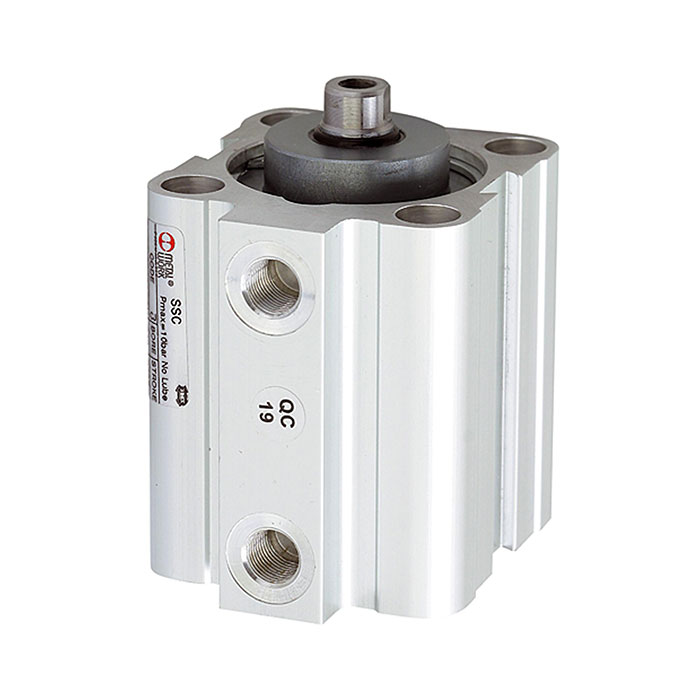

RIEGLER Short stroke cylinder double-acting, Piston Ø 32, Stroke 5, G 1/8
Type number: 3.DM.32005
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Short-stroke cylinder for automation technology, max. 10 bar, G 1/8 - Type 3.DM.32005
The RIEGLER short-stroke cylinder, double-acting, solenoid, piston Ø 32, stroke 5, G 1/8 offers compact pneumatic actuator solutions for confined installation spaces. Designed for a maximum operating pressure of 10 bar. The temperature range extends between -10 °C and 80 °C. Connection thread G 1/8 - suitable for common industry standards. With piston Ø 32 mm, stroke 5 mm, C45 steel piston rod, hard chrome-plated - for powerful linear actuator solutions. Space-saving design for confined installation spaces.
Field of application
Typical areas of application: Compact systems, special machine construction and handling systems.
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Working pressure max. | 10 bar |
| Pipe | Aluminium alloy, anodized |
| Piston rod seal | NBR (PU and FKM at extra charge) |
| Piston seal | NBR (PU and FKM at extra charge) |
| Piston Ø | 32 mm |
| Function | double-acting |
| Response pressure min. | 0.6 bar |
| Stroke | 5 mm |
| Piston rods IG | M6 |
| Connection | G 1/8 |
| Piston rod | C45 steel, hard chrome-plated |
| Head | Aluminum |
| Piston | Acetal synthetic resin |
| Class name | PLUS |
| Magnet | with magnet |
| Damping | without adjustable damping |
| Thread piston rod | Internal thread on the piston rod |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[105919] RIEGLER Short stroke cylinder double-acting, PistonØ 32, Stroke 10, G 1/8](/web/image/product.template/173866/image_128/%5B105919%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2032%2C%20Stroke%2010%2C%20G%201-8?unique=800ac0e)
|
Type number: 3.DM.32010 |
72.51 € | |
![[105920] RIEGLER Short stroke cylinder double-acting, PistonØ 32, Stroke 25, G 1/8](/web/image/product.template/173867/image_128/%5B105920%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2032%2C%20Stroke%2025%2C%20G%201-8?unique=93449ef)
|
Type number: 3.DM.32025 |
73.92 € | |
![[105921] RIEGLER Short stroke cylinder double-acting, PistonØ 32, Stroke 30, G 1/8](/web/image/product.template/173868/image_128/%5B105921%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2032%2C%20Stroke%2030%2C%20G%201-8?unique=63ba304)
|
Type number: 3.DM.32030 |
74.36 € | |
![[105922] RIEGLER Short stroke cylinder double-acting, PistonØ 32, Stroke 40, G 1/8](/web/image/product.template/173869/image_128/%5B105922%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2032%2C%20Stroke%2040%2C%20G%201-8?unique=32e141c)
|
Type number: 3.DM.32040 |
75.34 € | |
![[105923] RIEGLER Short stroke cylinder double-acting, PistonØ 32, Stroke 50, G 1/8](/web/image/product.template/173870/image_128/%5B105923%5D%20RIEGLER%20Short%20stroke%20cylinder%20double-acting%2C%20Piston%C3%98%2032%2C%20Stroke%2050%2C%20G%201-8?unique=63597cd)
|
Type number: 3.DM.32050 |
76.27 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[105966] RIEGLER Magnetic sensor Reed, for short stroke cylinder, Piston Ø 12 - 80](/web/image/product.template/173913/image_128/%5B105966%5D%20RIEGLER%20Magnetic%20sensor%20Reed%2C%20for%20short%20stroke%20cylinder%2C%20Piston%20%C3%98%2012%20-%2080?unique=82d7d3b)
|
Type number: 435.779-M |
36.28 € | |

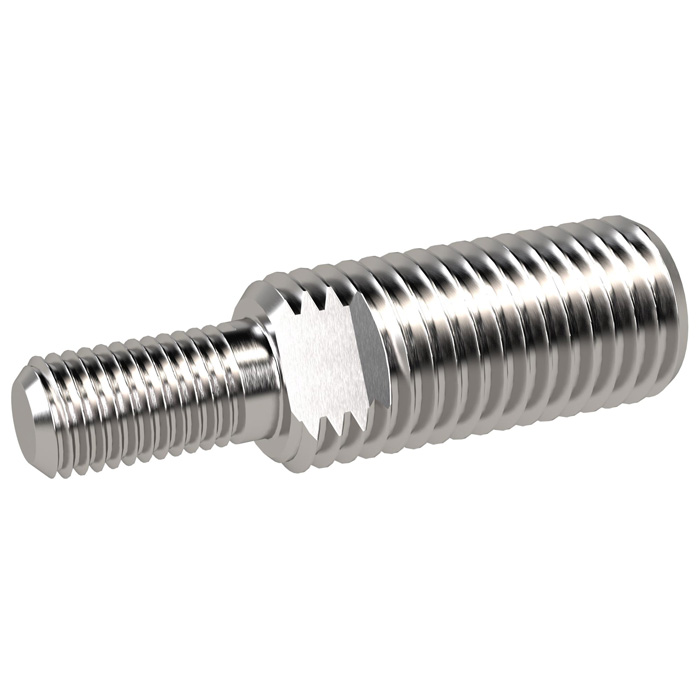

![[145362] RIEGLER Threaded nipple M10x1.25, for piston rod internal thread M6, piston Ø 32 mm](/web/image/product.template/279173/image_128/%5B145362%5D%20RIEGLER%20Threaded%20nipple%20M10x1.25%2C%20for%20piston%20rod%20internal%20thread%20M6%2C%20piston%20%C3%98%2032%20mm?unique=30b3844)
|
Type number: 219003200 |
4.31 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

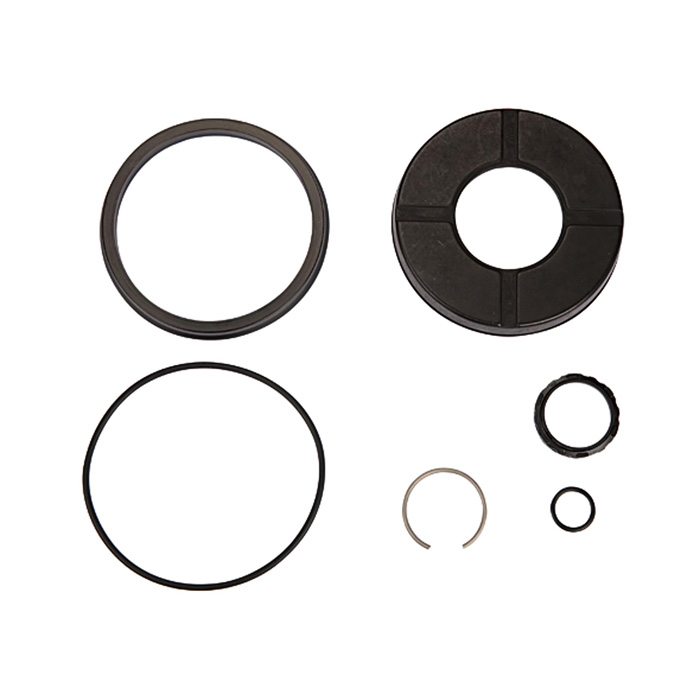

![[129888] RIEGLER Seal kit, for short-stroke cylinders, piston Ø 32, NBR seal](/web/image/product.template/273100/image_128/%5B129888%5D%20RIEGLER%20Seal%20kit%2C%20for%20short-stroke%20cylinders%2C%20piston%20%C3%98%2032%2C%20NBR%20seal?unique=7781c71)
|
Type number: 435.7032-NBR |
11.14 € | |
