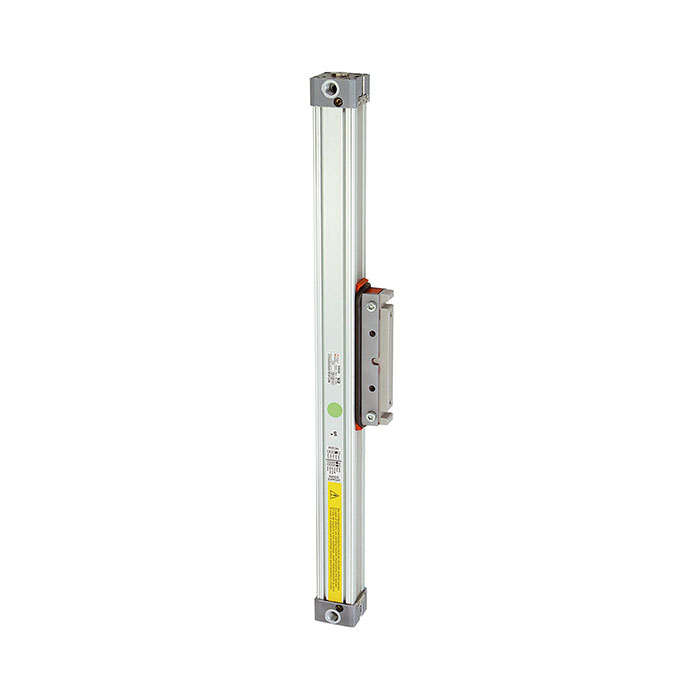

RIEGLER Piston rod-free cylinder, double-acting, Piston Ø 40, Stroke 600
Type number: 6.DD.400600
EAN: 4047322103718
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Rodless cylinder, double-acting, solenoid, piston Ø 40, stroke 600, G 1/4, working pressure 1 - 8 bar, temp. -10 °C to 80 °C
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Housing | Profile tube made of aluminium alloy, anodized |
| Sealing material | NBR (for speeds up to max. 1 m/s) |
| Working pressure min. | 1 bar |
| Working pressure max. | 8 bar |
| Carriage (piston guide) | Aluminium alloy, anodized |
| Sealing tapes | Stainless steel |
| Piston Ø | 40 mm |
| Function | double-acting |
| Stroke | 600 mm |
| Force at 6 bar | 640 N |
| Side load max. | 4 Nm |
| Connection | G 1/4 |
| Class name | PLUS |
| Magnet | with magnet |
| Damping | with adjustable damping |
