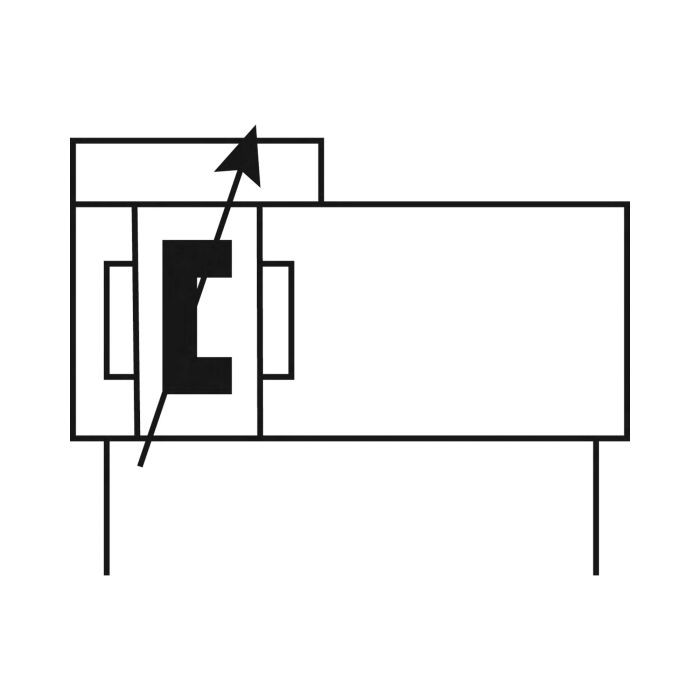

RIEGLER Piston rod-free cylinder, double-acting, Piston Ø 16, Stroke 900
Type number: 6.DD.160900
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Rodless cylinder made of aluminium alloy profile tube, anodized - Type 6.DD.160900
The RIEGLER rodless cylinder, double-acting, piston Ø 16, stroke 900 generates linear movement without extending piston rod - saves installation space. The housing is made of aluminium alloy profile tube, anodized with NBR seals (for speeds up to max. 1 m/s). The operating pressure range is 1 bar to 8 bar. The temperature range is between -10 °C and 80 °C. M5 connection thread - suitable for common industry standards. With piston Ø 16 mm, stroke 900 mm - for powerful linear actuator solutions. Compact design for space-saving automation.
Field of application
Typical areas of application: Packaging technology, handling and long strokes.
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Housing | Profile tube made of aluminium alloy, anodized |
| Sealing material | NBR (for speeds up to max. 1 m/s) |
| Working pressure min. | 1 bar |
| Working pressure max. | 8 bar |
| Carriage (piston guide) | Aluminium alloy, anodized |
| Sealing tapes | Stainless steel |
| Piston Ø | 16 mm |
| Function | double-acting |
| Stroke | 900 mm |
| Force at 6 bar | 110 N |
| Side load max. | 0.3 Nm |
| Connection | M5 |
| Class name | PLUS |
| Magnet | with magnet |
| Damping | with adjustable damping |
