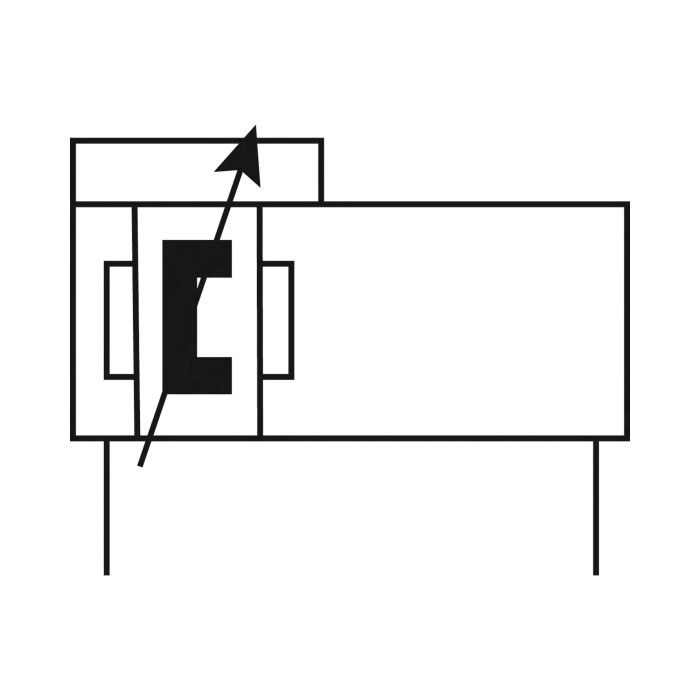

RIEGLER Piston rod-free cylinder, double-acting, Piston Ø 16, Stroke 700
Type number: 6.DD.160700
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Rodless cylinder, double-acting, solenoid, piston Ø 16, stroke 700, M5, working pressure 1 - 8 bar, temp. -10 °C to 80 °C
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Housing | Profile tube made of aluminium alloy, anodized |
| Sealing material | NBR (for speeds up to max. 1 m/s) |
| Working pressure min. | 1 bar |
| Working pressure max. | 8 bar |
| Carriage (piston guide) | Aluminium alloy, anodized |
| Sealing tapes | Stainless steel |
| Piston Ø | 16 mm |
| Function | double-acting |
| Stroke | 700 mm |
| Force at 6 bar | 110 N |
| Side load max. | 0.3 Nm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | M5 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
| Magnet | with magnet |
| Damping | with adjustable damping |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[106364] RIEGLER Foot fastening, for piston rod-free cylinder, Piston Ø 16](/web/image/product.template/175421/image_128/%5B106364%5D%20RIEGLER%20Foot%20fastening%2C%20for%20piston%20rod-free%20cylinder%2C%20Piston%20%C3%98%2016?unique=9d477aa)
|
Type number: 455.11-M |
7.91 € | |
![[106369] RIEGLER Intermediate supports, for piston rod-free cylinder, Piston Ø 16](/web/image/product.template/175426/image_128/%5B106369%5D%20RIEGLER%20Intermediate%20supports%2C%20for%20piston%20rod-free%20cylinder%2C%20Piston%20%C3%98%2016?unique=273820a)
|
Type number: 455.51-M |
19.42 € | |
![[106374] RIEGLER Pivoting load fixture, for piston rod-free cylinder, Piston Ø 16](/web/image/product.template/175431/image_128/%5B106374%5D%20RIEGLER%20Pivoting%20load%20fixture%2C%20for%20piston%20rod-free%20cylinder%2C%20Piston%20%C3%98%2016?unique=dd4770d)
|
Type number: 455.21-M |
83.92 € | |
![[106378] RIEGLER Adjustable end position for piston rod-free cylinder, Piston Ø 16](/web/image/product.template/175435/image_128/%5B106378%5D%20RIEGLER%20Adjustable%20end%20position%20for%20piston%20rod-free%20cylinder%2C%20Piston%20%C3%98%2016?unique=6dbf907)
|
Type number: 455.31-M |
291.69 € | |
![[106383] RIEGLER Sensor holder for piston rod-free cylinder, Piston Ø 16-25](/web/image/product.template/175440/image_128/%5B106383%5D%20RIEGLER%20Sensor%20holder%20for%20piston%20rod-free%20cylinder%2C%20Piston%20%C3%98%2016-25?unique=fa7c861)
|
Type number: 455.05-M |
12.98 € | |
![[106384] RIEGLER Cover belts for the T-slot, Piston Ø 32-125/32-63](/web/image/product.template/175441/image_128/%5B106384%5D%20RIEGLER%20Cover%20belts%20for%20the%20T-slot%2C%20Piston%20%C3%98%2032-125-32-63?unique=e776fe4)
|
Type number: 455.06-M |
4.19 € | |
![[194356] RIEGLER REED sensor for T-slots and rectangular slots,2-wire, 2.5 m cable](/web/image/product.template/216648/image_128/%5B194356%5D%20RIEGLER%20REED%20sensor%20for%20T-slots%20and%20rectangular%20slots%2C2-wire%2C%202.5%20m%20cable?unique=f3605f2)
|
Typennummer: 235.03-M-1 |
19.93 € | |
![[194357] RIEGLER REED sensor for T-slots and rectangular slots, 2-wire, M8, 300mm](/web/image/product.template/216649/image_128/%5B194357%5D%20RIEGLER%20REED%20sensor%20for%20T-slots%20and%20rectangular%20slots%2C%202-wire%2C%20M8%2C%20300mm?unique=e7fd1c1)
|
Typennummer: 235.04-M-1 |
28.67 € | |
![[194358] RIEGLER HALL sensor for T-slots and rectangular slots,3-wire, 2.5 m cable](/web/image/product.template/216650/image_128/%5B194358%5D%20RIEGLER%20HALL%20sensor%20for%20T-slots%20and%20rectangular%20slots%2C3-wire%2C%202.5%20m%20cable?unique=77d9ec2)
|
Typennummer: 235.06-M-1 |
27.41 € | |
![[194359] RIEGLER HALL sensor for T-slots and rectangular slots, 3-wire, M8, 300mm](/web/image/product.template/216651/image_128/%5B194359%5D%20RIEGLER%20HALL%20sensor%20for%20T-slots%20and%20rectangular%20slots%2C%203-wire%2C%20M8%2C%20300mm?unique=d3edd7d)
|
Typennummer: 235.07-M-1 |
36.16 € | |
