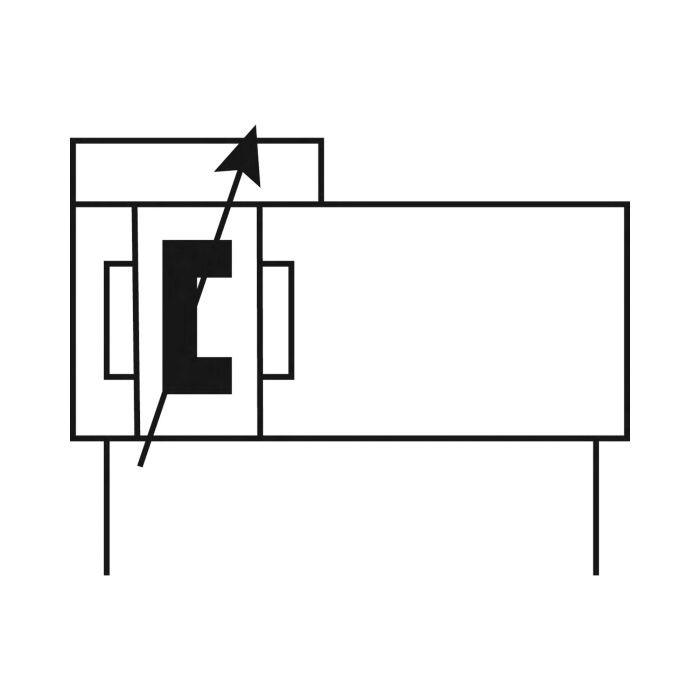

RIEGLER Piston rod-free cylinder, double-acting, Piston Ø 16, Stroke 400
Type number: 6.DD.160400
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Rodless cylinder, double-acting, solenoid, piston Ø 16, stroke 400, M5, working pressure 1 - 8 bar, temp. -10 °C to 80 °C
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Housing | Profile tube made of aluminium alloy, anodized |
| Sealing material | NBR (for speeds up to max. 1 m/s) |
| Working pressure min. | 1 bar |
| Working pressure max. | 8 bar |
| Carriage (piston guide) | Aluminium alloy, anodized |
| Sealing tapes | Stainless steel |
| Piston Ø | 16 mm |
| Function | double-acting |
| Stroke | 400 mm |
| Force at 6 bar | 110 N |
| Side load max. | 0.3 Nm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | M5 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
| Magnet | with magnet |
| Damping | with adjustable damping |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[106364] RIEGLER Foot fastening, for piston rod-free cylinder, Piston Ø 16](/web/image/product.template/175421/image_128/%5B106364%5D%20RIEGLER%20Foot%20fastening%2C%20for%20piston%20rod-free%20cylinder%2C%20Piston%20%C3%98%2016?unique=9d477aa)
|
Type number: 455.11-M |
7.91 € | |
![[106369] RIEGLER Intermediate supports, for piston rod-free cylinder, Piston Ø 16](/web/image/product.template/175426/image_128/%5B106369%5D%20RIEGLER%20Intermediate%20supports%2C%20for%20piston%20rod-free%20cylinder%2C%20Piston%20%C3%98%2016?unique=273820a)
|
Type number: 455.51-M |
19.42 € | |

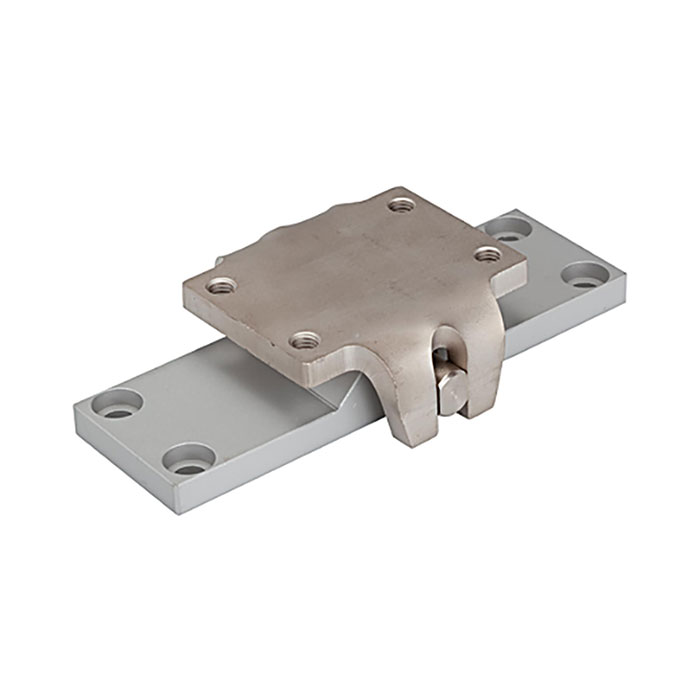

![[106374] RIEGLER Pivoting load fixture, for piston rod-free cylinder, Piston Ø 16](/web/image/product.template/175431/image_128/%5B106374%5D%20RIEGLER%20Pivoting%20load%20fixture%2C%20for%20piston%20rod-free%20cylinder%2C%20Piston%20%C3%98%2016?unique=dd4770d)
|
Type number: 455.21-M |
83.92 € | |

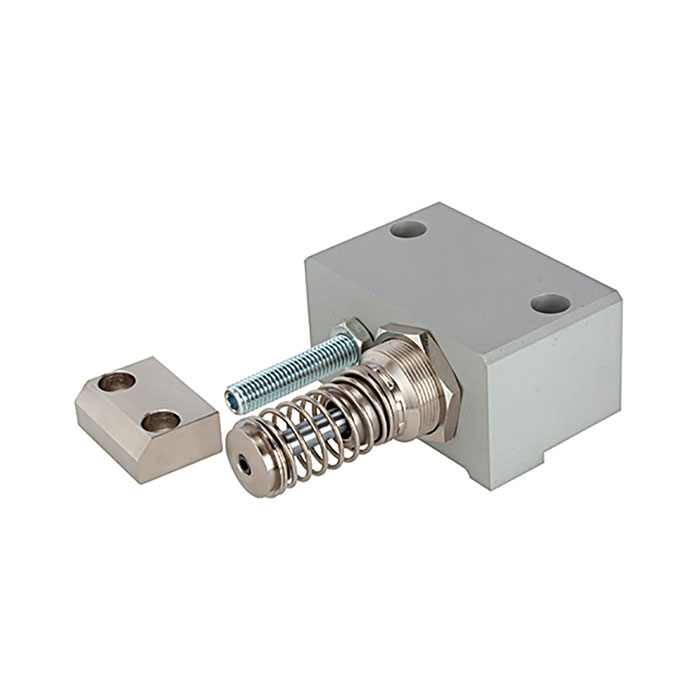

![[106378] RIEGLER Adjustable end position for piston rod-free cylinder, Piston Ø 16](/web/image/product.template/175435/image_128/%5B106378%5D%20RIEGLER%20Adjustable%20end%20position%20for%20piston%20rod-free%20cylinder%2C%20Piston%20%C3%98%2016?unique=6dbf907)
|
