RIEGLER 3/2-way valve, pneumatically »lineonline«, NC, hose-hose, hose Ø8
Type number: 490-8
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106791EAN :
4047322389969Weight :
0.05 kg3/2-way valve, pneumatic "lineonline", NC, hose - hose, for hose Ø 8 mm, operating pressure max. 10 bar
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Pilot air connection | 4 mm |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Function | NC |
| for hose Ø | 8 mm |
| A | 57.3 mm |
| B | 49.7 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Flow rate at 6.3 bar and Î "p 1.0 bar | 790 Nl/min |
| I | 18.7 mm |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

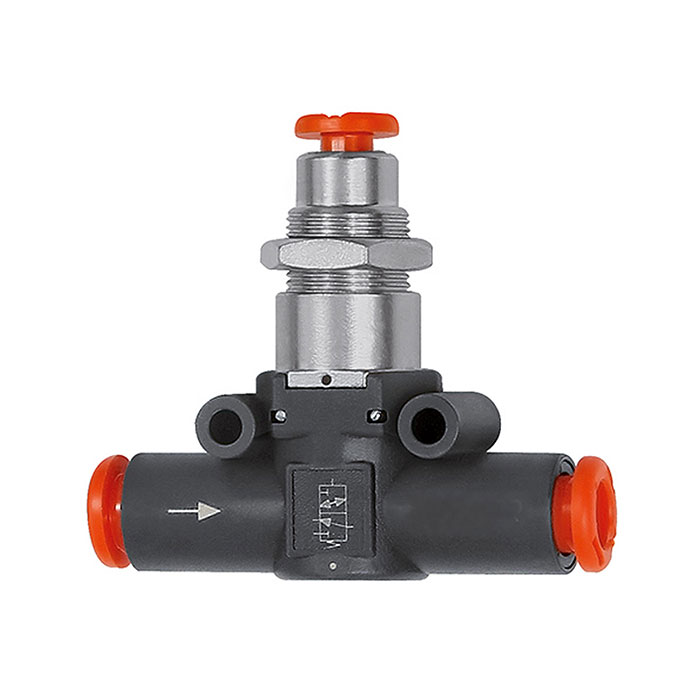

![[106790] RIEGLER 3/2-way valve, pneumatically »lineonline«, NC, hose-hose, hose Ø6](/web/image/product.template/175847/image_128/%5B106790%5D%20RIEGLER%203-2-way%20valve%2C%20pneumatically%20%C2%BBlineonline%C2%AB%2C%20NC%2C%20hose-hose%2C%20hose%20%C3%986?unique=0ca63c1)
|
