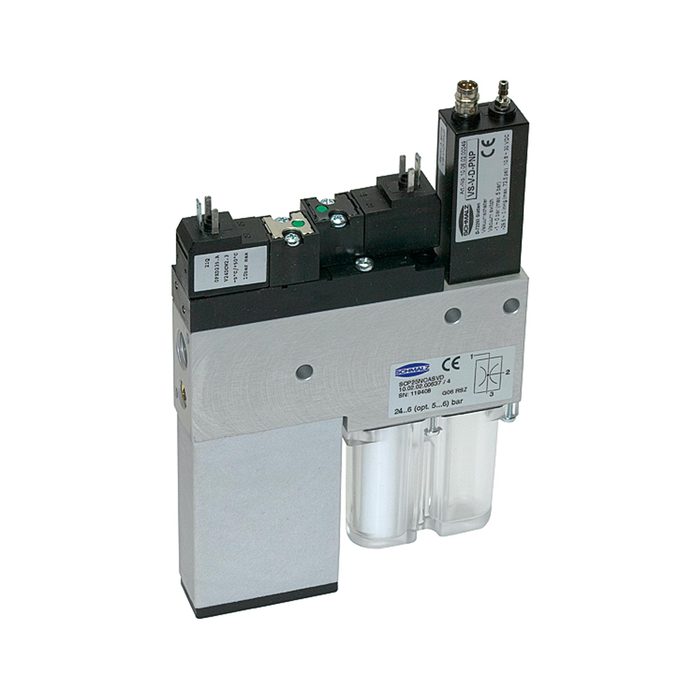

RIEGLER Compact ejector »CP«, Digital vacuum switch, Nozzle size 1.5 mm
Type number: CP 153
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Compact ejector "CP", digital vacuum switch, nozzle size 1.5 mm, NC, compressed air/vacuum connection G 1/8 IG, PN 5 bar
| Max. operating pressure | 5 bar |
| Base body | Anodized aluminum |
| Integrated | NC blow-off valve, filter, silencer, non-return valve |
| Height | 164 mm |
| Width | 20 mm |
| Length | 72 mm |
| Nozzle size | 1.5 mm |
| Compressed air connection | G 1/8 FEMALE THREAD |
| Vacuum connection | G 1/8 FEMALE THREAD |
| Rest position suction valve | NC |
| Suction capacity max. | 65 l/min |
| Air consumption suction | 117 l/min |
| Weight | 275 g |
| Class name | MAX |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

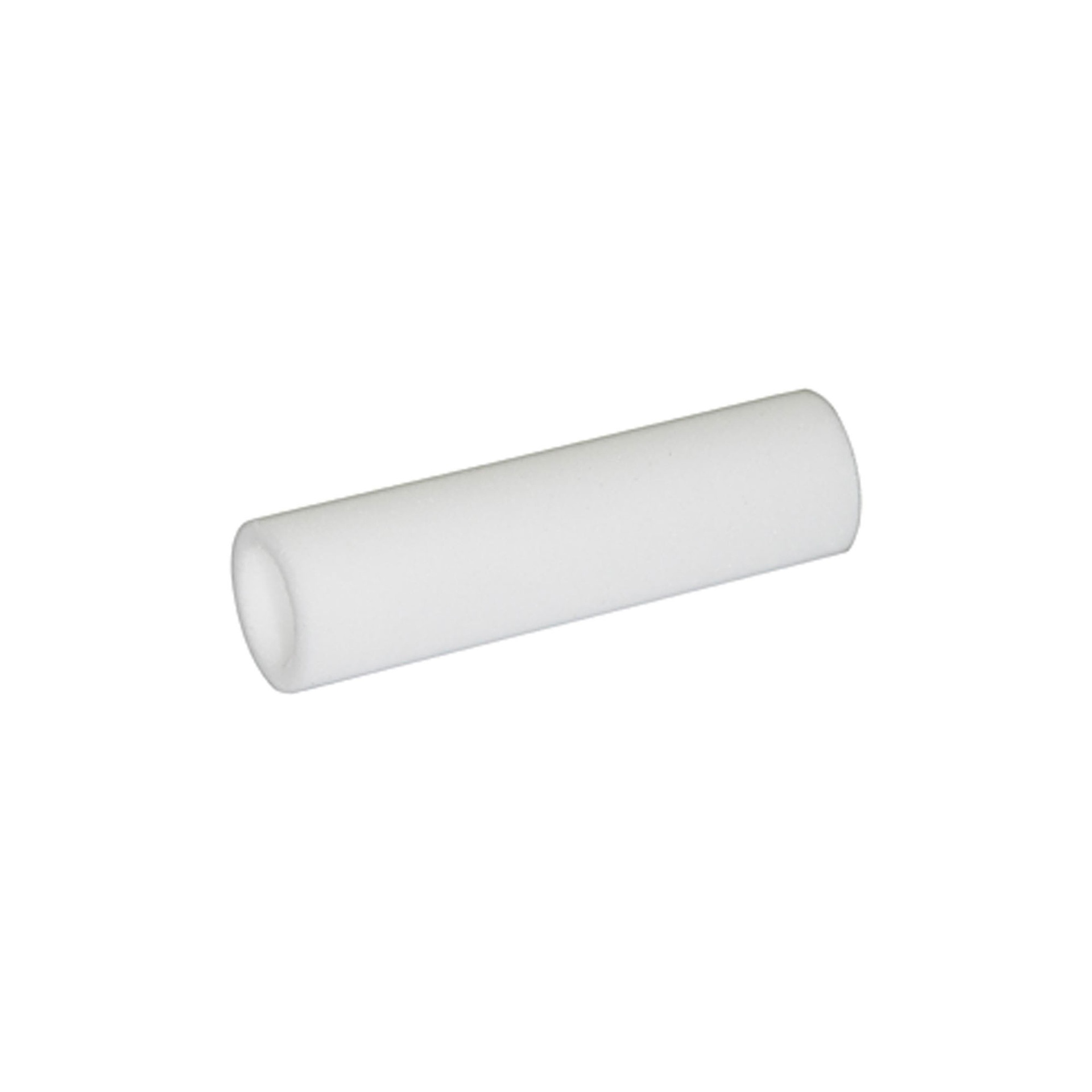

![[108419] RIEGLER Replacement filter element for compact ejector »Compact pump«](/web/image/product.template/192316/image_128/%5B108419%5D%20RIEGLER%20Replacement%20filter%20element%20for%20compact%20ejector%20%C2%BBCompact%20pump%C2%AB?unique=527eee4)
|
Type number: ASK 655 |
8.38 € | |
![[108416] RIEGLER Replacement silencer for compact ejector type »Compact pump«](/web/image/product.template/192313/image_128/%5B108416%5D%20RIEGLER%20Replacement%20silencer%20for%20compact%20ejector%20type%20%C2%BBCompact%20pump%C2%AB?unique=444539a)
|
Type number: ASK 653 |
19.69 € | |
