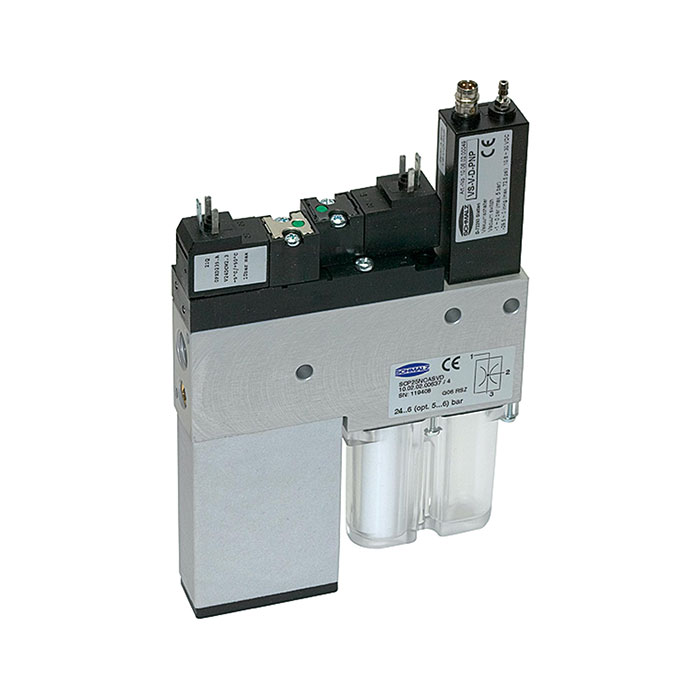

RIEGLER Compact ejector »CP«, Digital vacuum switch, Nozzle size 1.5 mm
Type number: CP 154
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Compact ejector "CP" for vacuum technology, max. 5 bar - Type CP 154
The RIEGLER compact ejector "CP", digit. Vacuum switch, nozzle size 1.5 mm, NO generates or uses vacuum for handling and automation tasks. Designed for a maximum operating pressure of 5 bar. Reliable vacuum technology.
Field of application
Typical areas of application: Robotics and packaging technology.
| Max. operating pressure | 5 bar |
| Base body | Anodized aluminum |
| Integrated | NC blow-off valve, filter, silencer, non-return valve |
| Height | 164 mm |
| Width | 20 mm |
| Length | 72 mm |
| Nozzle size | 1.5 mm |
| Compressed air connection | G 1/8 FEMALE THREAD |
| Vacuum connection | G 1/8 FEMALE THREAD |
| Rest position suction valve | NO |
| Suction capacity max. | 65 l/min |
| Air consumption suction | 117 l/min |
| Weight | 275 g |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108414] RIEGLER Compact ejector »CP«, Digital vacuum switch, Nozzle size 2.5 mm](/web/image/product.template/192311/image_128/%5B108414%5D%20RIEGLER%20Compact%20ejector%20%C2%BBCP%C2%AB%2C%20Digital%20vacuum%20switch%2C%20Nozzle%20size%202.5%20mm?unique=812b612)
|
Type number: CP 254 |
1,029.06 € | |
![[108412] RIEGLER Compact ejector »CP«, Digital vacuum switch, Nozzle size 2 mm, NO](/web/image/product.template/192309/image_128/%5B108412%5D%20RIEGLER%20Compact%20ejector%20%C2%BBCP%C2%AB%2C%20Digital%20vacuum%20switch%2C%20Nozzle%20size%202%20mm%2C%20NO?unique=19d6a55)
|
Type number: CP 204 |
980.56 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[108399] RIEGLER Connection plug for solenoid valve for »Mini pump«,»Compact Pump«](/web/image/product.template/192296/image_128/%5B108399%5D%20RIEGLER%20Connection%20plug%20for%20solenoid%20valve%20for%20%C2%BBMini%20pump%C2%AB%2C%C2%BBCompact%20Pump%C2%AB?unique=b0f91c5)
|
Type number: ASK 3001 |
41.52 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

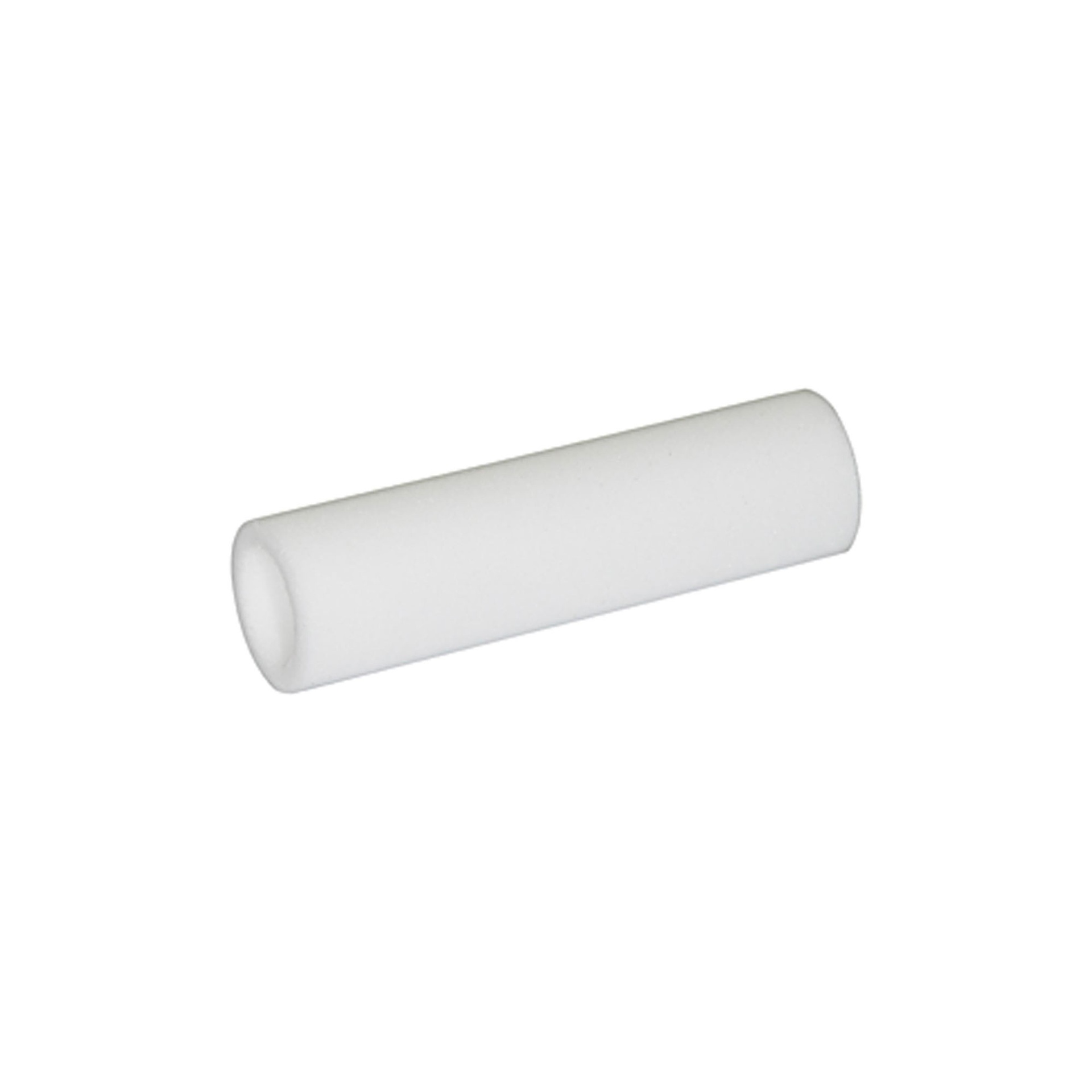

![[108419] RIEGLER Replacement filter element for compact ejector »Compact pump«](/web/image/product.template/192316/image_128/%5B108419%5D%20RIEGLER%20Replacement%20filter%20element%20for%20compact%20ejector%20%C2%BBCompact%20pump%C2%AB?unique=c2bea60)
|
