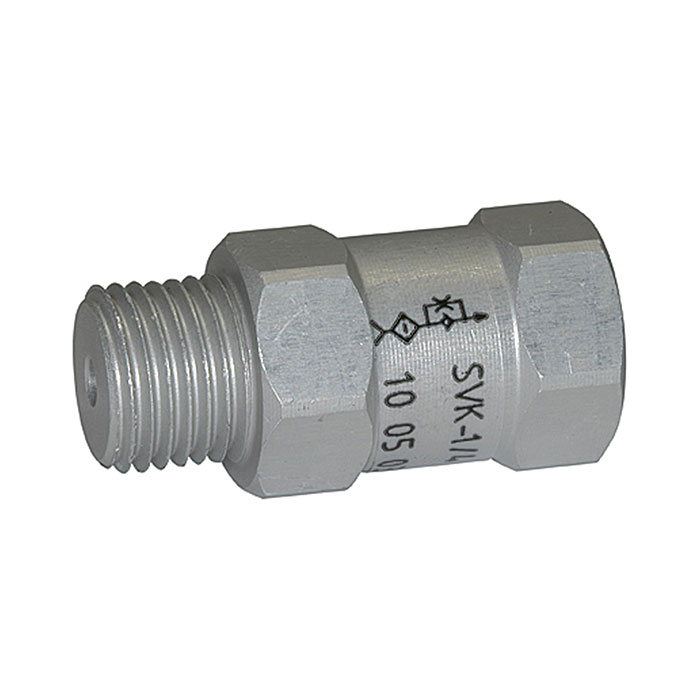

RIEGLER Flow valve, ET top, Aluminium, Ball seat valve
Type number: SVK 515
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Flow valve made of aluminum, for vacuum technology - type SVK 515
The RIEGLER flow valve, male o., aluminum, ball seat valve. pu = -0.3bar l/min 1.2 generates or uses vacuum for handling and automation tasks. The housing is made of aluminum. Reliable vacuum technology.
Field of application
Typical areas of application: Robotics and packaging technology.
| Housing | Aluminum |
| Length | 15.5 mm |
| Type of construction | Ball seat valve (brass ball seat) |
| Thread 1 | M5 AG |
| Thread 2 | M5 IG |
| Required suction power pu = -0.3 | 1.2 l/min |
| Required suction power pu = -0.6 | 1.3 l/min |
| Max. flow rate with blow-off | 80 l/min |
| Weight | 2.2 g |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

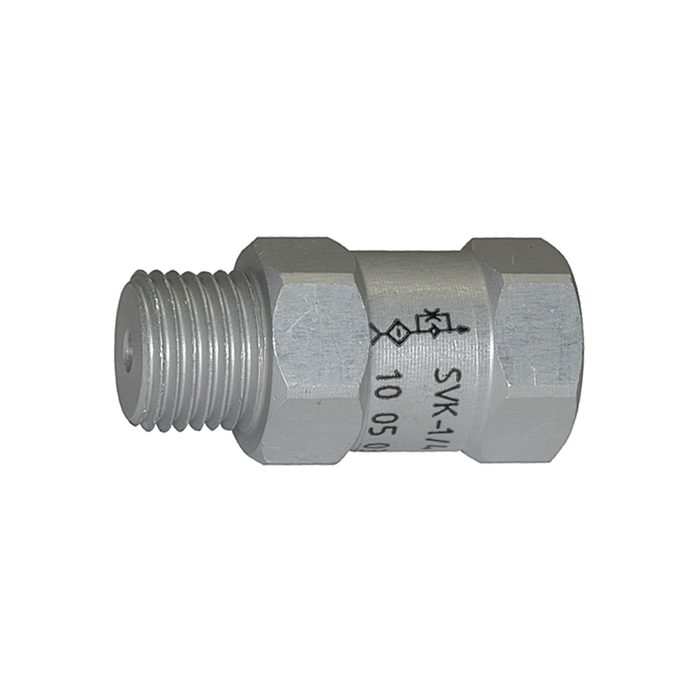

![[108425] RIEGLER Flow valve, ET top, Aluminium, Ball seat valve](/web/image/product.template/192322/image_128/%5B108425%5D%20RIEGLER%20Flow%20valve%2C%20ET%20top%2C%20Aluminium%2C%20Ball%20seat%20valve?unique=333e9d9)
|
Type number: SVK 1826 |
28.85 € | |
![[108426] RIEGLER Flow valve, ET top, Aluminium, Ball seat valve](/web/image/product.template/192323/image_128/%5B108426%5D%20RIEGLER%20Flow%20valve%2C%20ET%20top%2C%20Aluminium%2C%20Ball%20seat%20valve?unique=60a4812)
|
Type number: SVK 1426 |
32.51 € | |
![[108427] RIEGLER Flow valve, ET top, Aluminium, Ball seat valve](/web/image/product.template/192324/image_128/%5B108427%5D%20RIEGLER%20Flow%20valve%2C%20ET%20top%2C%20Aluminium%2C%20Ball%20seat%20valve?unique=e19b97d)
|
Type number: SVK 1229 |
51.12 € | |
