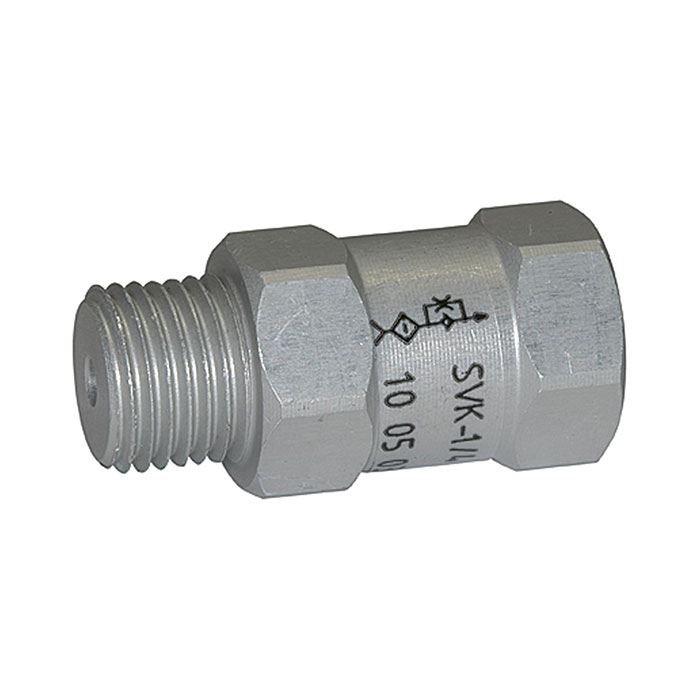

RIEGLER Flow valve, ET top, Aluminium, Ball seat valve
Type number: SVK 1826
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Flow valve made of aluminum, for vacuum technology - type SVK 1826
The RIEGLER flow valve, male o., aluminum, ball seat valve. pu = -0.3bar l/min 2.3 generates or uses vacuum for handling and automation tasks. The housing is made of aluminum. Reliable vacuum technology.
Field of application
Typical areas of application: Robotics and packaging technology.
| Housing | Aluminum |
| Length | 26 mm |
| Type of construction | Ball seat valve (brass ball seat) |
| Thread 1 | G 1/8 AG |
| Thread 2 | G 1/8 FEMALE THREAD |
| Required suction power pu = -0.3 | 2.3 l/min |
| Required suction power pu = -0.6 | 2.5 l/min |
| Max. flow rate with blow-off | 310 l/min |
| Weight | 11.2 g |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108424] RIEGLER Flow valve, ET top, Aluminium, Ball seat valve](/web/image/product.template/192321/image_128/%5B108424%5D%20RIEGLER%20Flow%20valve%2C%20ET%20top%2C%20Aluminium%2C%20Ball%20seat%20valve?unique=9abf587)
|
Type number: SVK 515 |
20.12 € | |

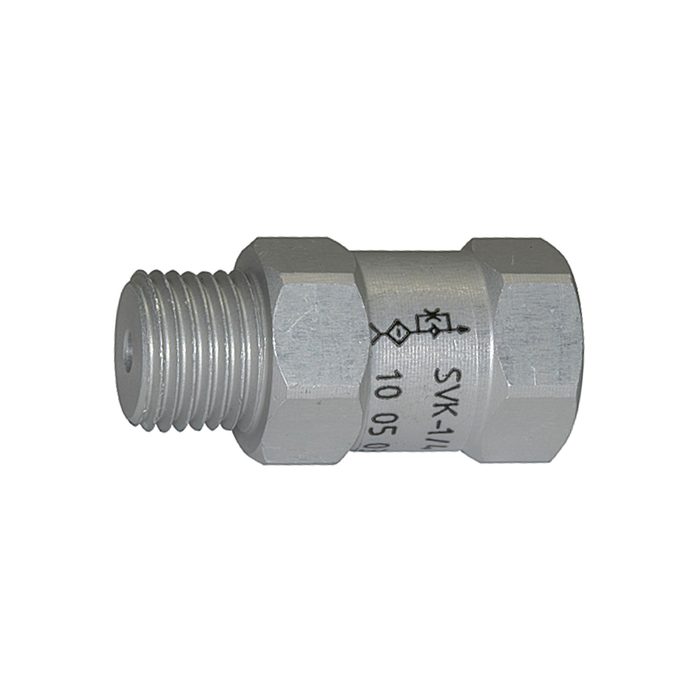

![[108426] RIEGLER Flow valve, ET top, Aluminium, Ball seat valve](/web/image/product.template/192323/image_128/%5B108426%5D%20RIEGLER%20Flow%20valve%2C%20ET%20top%2C%20Aluminium%2C%20Ball%20seat%20valve?unique=60a4812)
|
