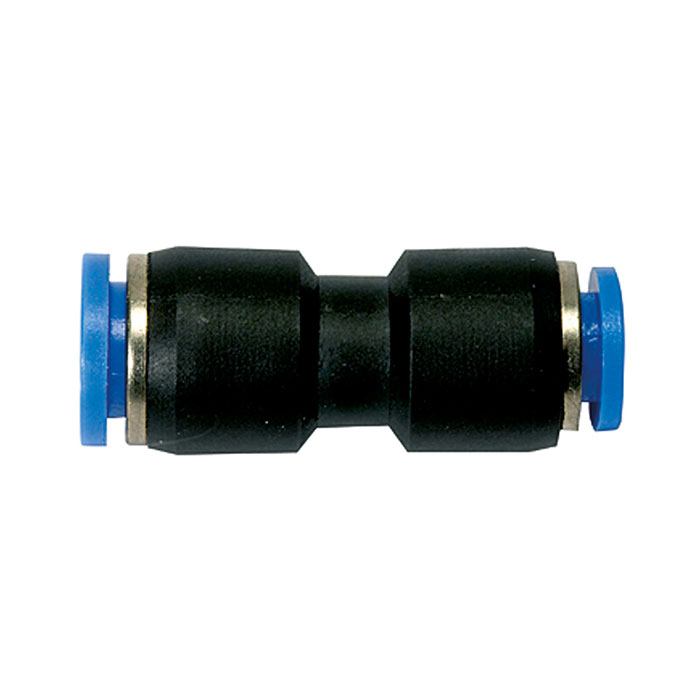

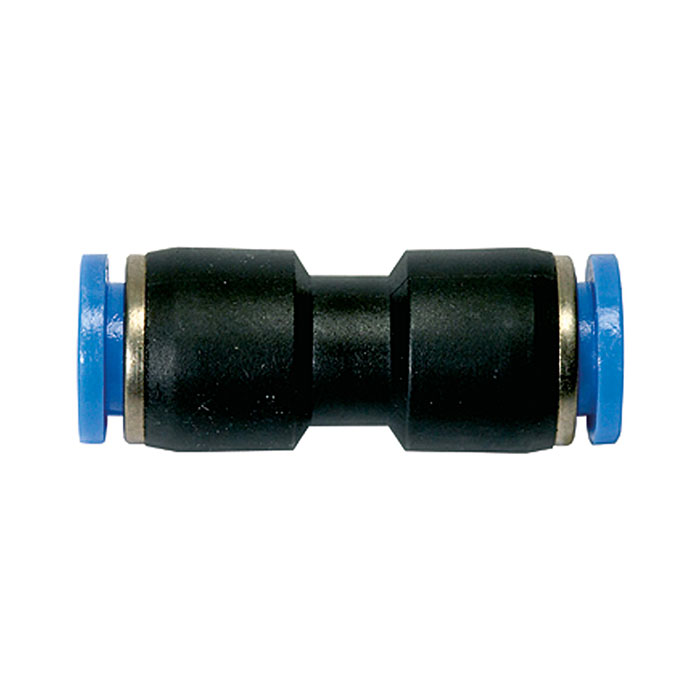

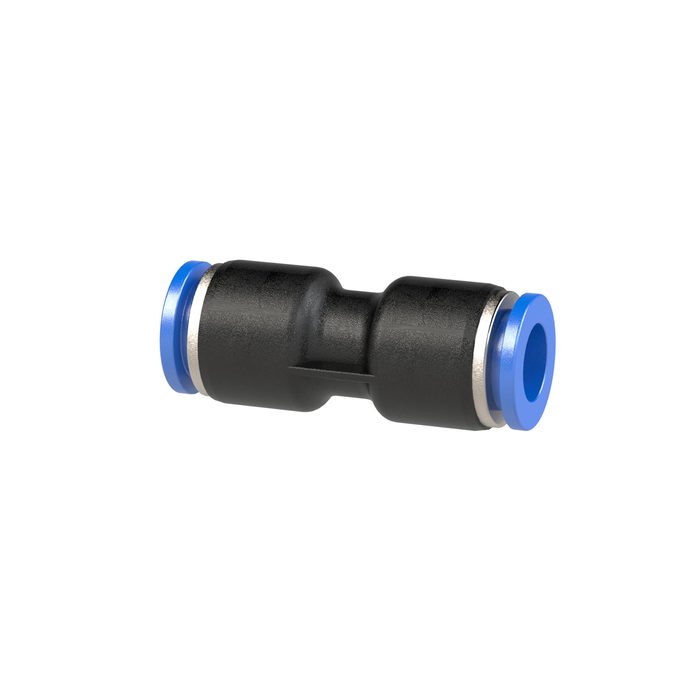

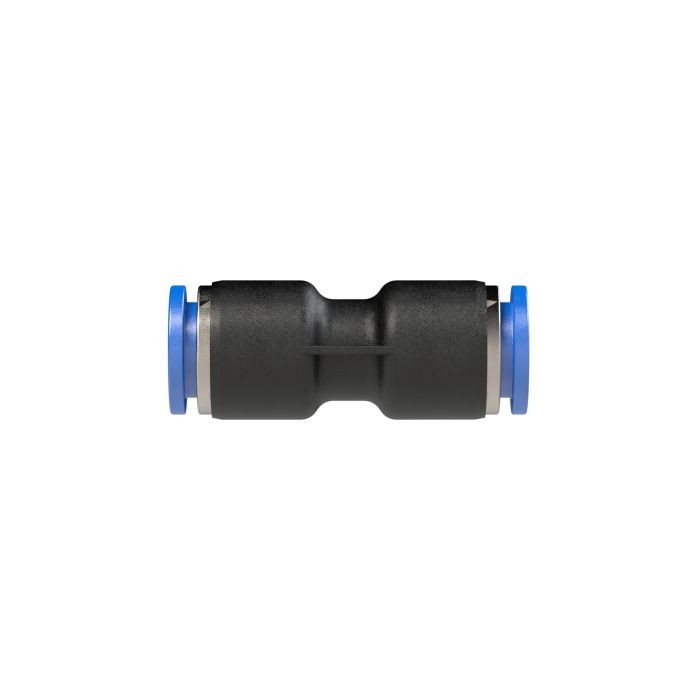

RIEGLER Straight push-in connector »Blue Series«, for hose exterior Ø 10
Type number: 135.010
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight connector "Blue series" made of plastic or nickel-plated brass - type 135.010
The RIEGLER "Blue Series" straight push-in connector for hose outer Ø 10 enables compressed air lines to be connected quickly and without tools - securely sealed and immediately loadable. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is -0.95 bar to 10 bar. The temperature range is between -20 °C and 80 °C. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| for hose outer Ø | 10 mm |
| L1 | 47 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[109793] RIEGLER Straight push-in connector »Blue Series«, for hose exterior Ø 4](/web/image/product.template/178719/image_128/%5B109793%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20for%20hose%20exterior%20%C3%98%204?unique=5646847)
|
Type number: 135.004 |
1.25 € | |
![[109794] RIEGLER Straight push-in connector »Blue Series«, for hose exterior Ø 6](/web/image/product.template/178720/image_128/%5B109794%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20for%20hose%20exterior%20%C3%98%206?unique=1fbc5fc)
|
Type number: 135.006 |
1.34 € | |
![[109795] RIEGLER Straight push-in connector »Blue Series«, for hose exterior Ø 8](/web/image/product.template/178721/image_128/%5B109795%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20for%20hose%20exterior%20%C3%98%208?unique=3804b8e)
|
Type number: 135.008 |
1.44 € | |
![[109797] RIEGLER Straight push-in connector »Blue Series«, for hose exterior Ø 12](/web/image/product.template/178723/image_128/%5B109797%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20for%20hose%20exterior%20%C3%98%2012?unique=9efb535)
|
Type number: 135.012 |
2.20 € | |
![[109798] RIEGLER Straight push-in connector »Blue Series«, for hose exterior Ø 14](/web/image/product.template/178724/image_128/%5B109798%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20for%20hose%20exterior%20%C3%98%2014?unique=9efb535)
|
Type number: 135.014 |
2.32 € | |

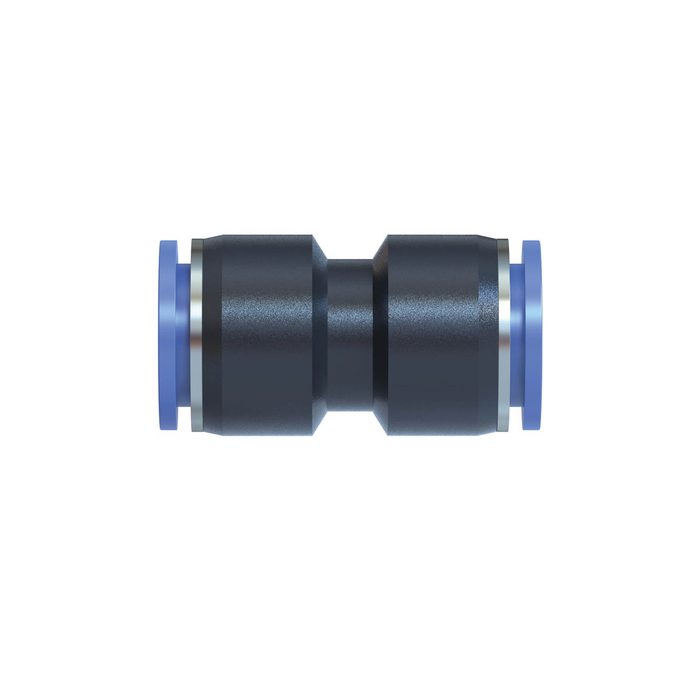

![[152122] RIEGLER Straight push-in connector »Blue Series«, for hose exterior Ø 16](/web/image/product.template/210693/image_128/%5B152122%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20for%20hose%20exterior%20%C3%98%2016?unique=9efb535)
|
