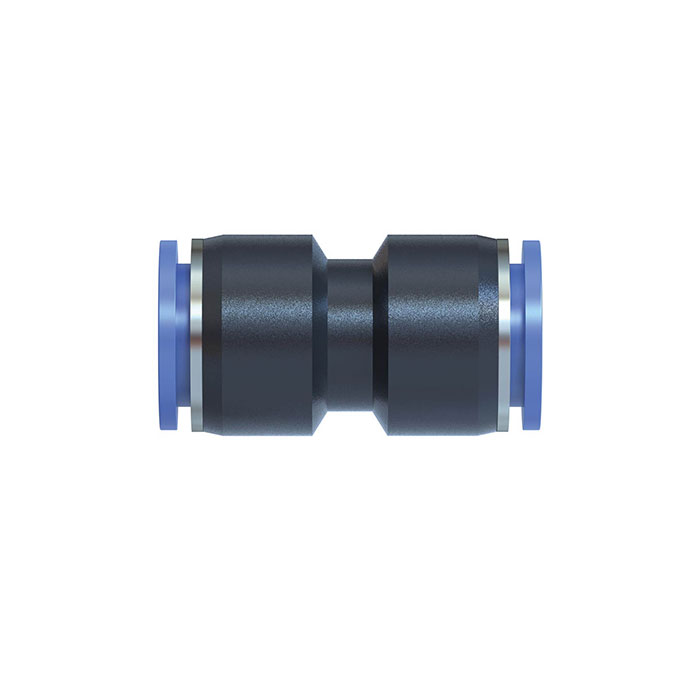

RIEGLER Straight push-in connector »Blue Series«, for hose exterior Ø 16
Typennummer: 135.016-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Gerade Steckverbindung »Blaue Serie« aus Kunststoff bzw. Messing vernickelt – Typ 135.016-1
Das RIEGLER Gerade Steckverbindung »Blaue Serie«, für Schlauch-Außen-Ø 16 ermöglicht die schnelle, werkzeugfreie Verbindung von Druckluftleitungen – sicher abdichtend und sofort belastbar. Das Gehäuse besteht aus Kunststoff bzw. Messing vernickelt mit Dichtungen aus NBR. Der Betriebsdruckbereich liegt bei -0.95 bar bis 10 bar. Der Temperaturbereich erstreckt sich zwischen -20 °C und 80 °C. Geeignet für Druckluft. Schnelle Montage ohne Werkzeug – spart Zeit bei Installation und Umrüstung.
Einsatzbereich
Typische Anwendungsgebiete: Pneumatische Installationen, Maschinenverrohrung und Automatisierungstechnik.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| for hose outer Ø | 16 mm |
| L1 | 49 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[109796] RIEGLER Straight push-in connector »Blue Series«, for hose exterior Ø 10](/web/image/product.template/178722/image_128/%5B109796%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20for%20hose%20exterior%20%C3%98%2010?unique=f216978)
|
Type number: 135.010 |
1.87 € | |
![[109793] RIEGLER Straight push-in connector »Blue Series«, for hose exterior Ø 4](/web/image/product.template/178719/image_128/%5B109793%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20for%20hose%20exterior%20%C3%98%204?unique=5646847)
|
Type number: 135.004 |
1.25 € | |
![[109794] RIEGLER Straight push-in connector »Blue Series«, for hose exterior Ø 6](/web/image/product.template/178720/image_128/%5B109794%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20for%20hose%20exterior%20%C3%98%206?unique=1fbc5fc)
|
Type number: 135.006 |
1.34 € | |
![[109795] RIEGLER Straight push-in connector »Blue Series«, for hose exterior Ø 8](/web/image/product.template/178721/image_128/%5B109795%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20for%20hose%20exterior%20%C3%98%208?unique=3804b8e)
|
Type number: 135.008 |
1.44 € | |
![[109797] RIEGLER Straight push-in connector »Blue Series«, for hose exterior Ø 12](/web/image/product.template/178723/image_128/%5B109797%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20for%20hose%20exterior%20%C3%98%2012?unique=9efb535)
|
Type number: 135.012 |
2.20 € | |

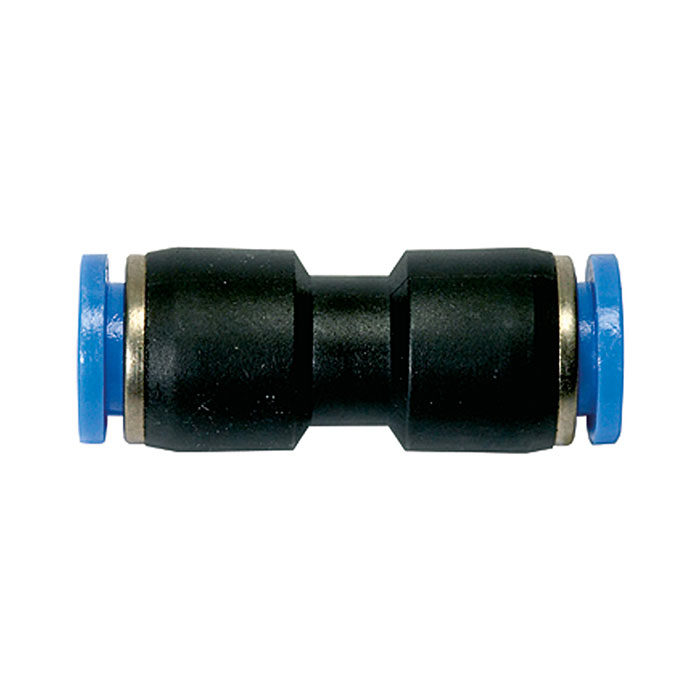

![[109798] RIEGLER Straight push-in connector »Blue Series«, for hose exterior Ø 14](/web/image/product.template/178724/image_128/%5B109798%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20for%20hose%20exterior%20%C3%98%2014?unique=9efb535)
|
