RIEGLER Angle connector, for hose 8/6 mm, AF1 14, AF2 10
Type number: 13.800-8 ESH
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Angle connector made of stainless steel 1.4404, for pneumatic installation, max. 25 bar - Type 13.800-8 ESH
The RIEGLER elbow connector, for hose 8/6 mm, stainless steel 1.4404 connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of stainless steel 1.4404 with seals made of pure metal. Designed for a maximum operating pressure of 25 bar. The temperature range is between -40 °C and 200 °C. Simple assembly and disassembly for flexible pipe routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Temperature range min. | -40 °C |
| Temperature range max. | 200 °C |
| Sealing material | purely metallic sealing |
| Working pressure max. | 25 bar |
| Material | Stainless steel 1.4404 |
| Recommended hose | PTFE hose |
| SW 1 | 14 mm |
| SW 2 | 10 mm |
| SW | 23 mm |
| for hose | 8/6 mm |
| L1 | 23 mm |
| L2 | 23 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

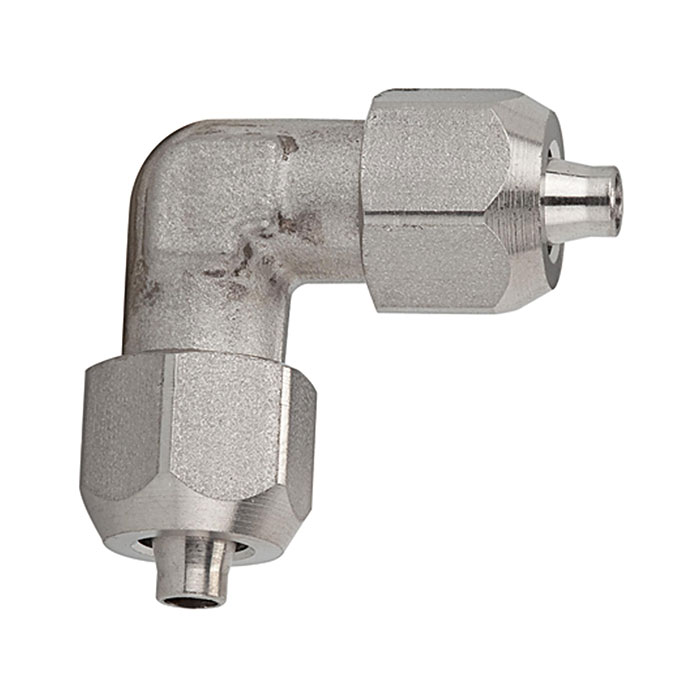

![[110714] RIEGLER Angle connector, for hose 10/8 mm, AF1 16, AF2 10](/web/image/product.template/181644/image_128/%5B110714%5D%20RIEGLER%20Angle%20connector%2C%20for%20hose%2010-8%20mm%2C%20AF1%2016%2C%20AF2%2010?unique=edace02)
|
Type number: 13.800-10 ESH |
31.90 € | |

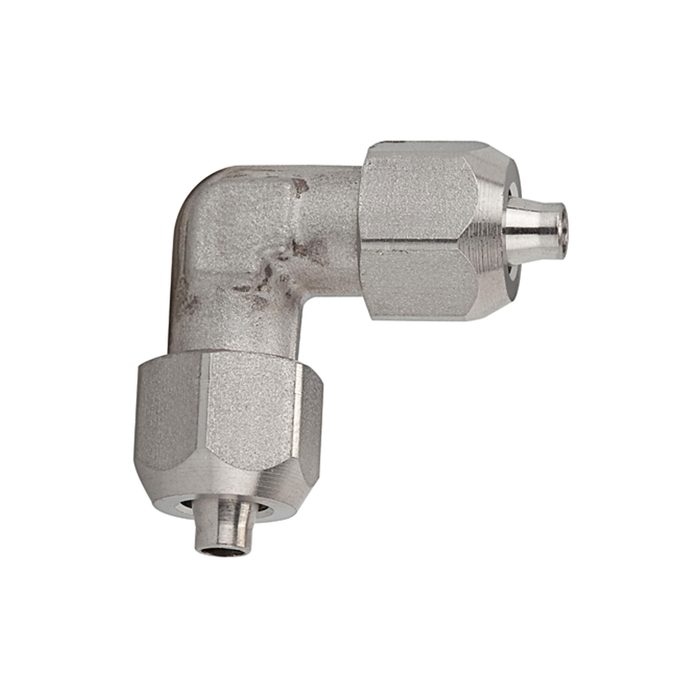

![[110712] RIEGLER Angle connector, for hose 6/4 mm, AF1 12, AF2 10](/web/image/product.template/181642/image_128/%5B110712%5D%20RIEGLER%20Angle%20connector%2C%20for%20hose%206-4%20mm%2C%20AF1%2012%2C%20AF2%2010?unique=a6063c3)
|
