RIEGLER Angle connector, for hose 10/8 mm, AF1 16, AF2 10
Type number: 13.800-10 ESH
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Winkelverbinder, für Schlauch 10/8 mm, SW1 16, SW2 10, Druckbereich max. 25 bar, Temperatur -40 °C bis 200 °C, Edelstahl 1.4404
| Temperature range min. | -40 °C |
| Temperature range max. | 200 °C |
| Sealing material | purely metallic sealing |
| Working pressure max. | 25 bar |
| Material | Stainless steel 1.4404 |
| Recommended hose | PTFE hose |
| SW 1 | 16 mm |
| SW 2 | 10 mm |
| SW | 26 mm |
| for hose | 10/8 mm |
| L1 | 26 mm |
| L2 | 26 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

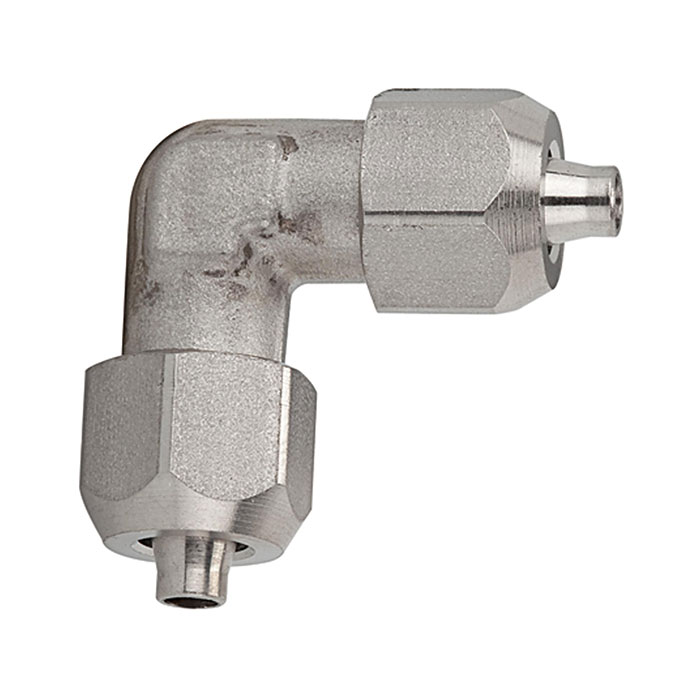

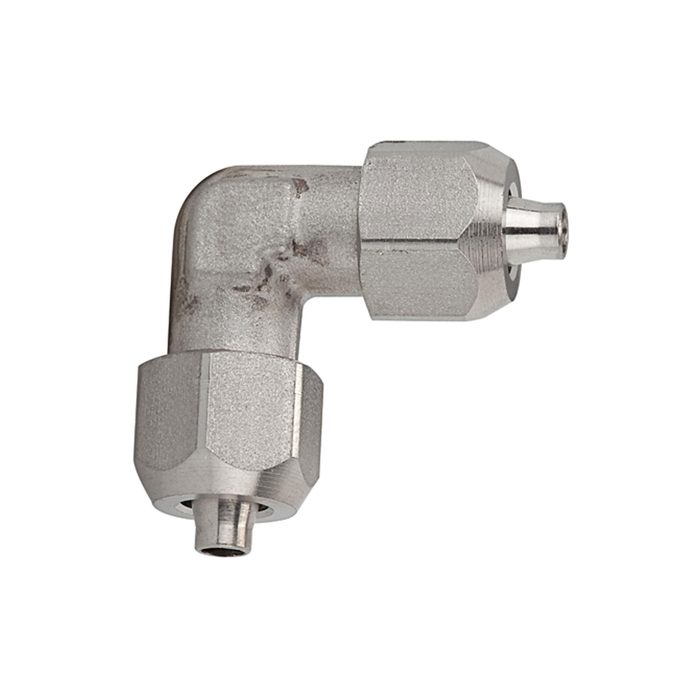

![[110712] RIEGLER Angle connector, for hose 6/4 mm, AF1 12, AF2 10](/web/image/product.template/181642/image_128/%5B110712%5D%20RIEGLER%20Angle%20connector%2C%20for%20hose%206-4%20mm%2C%20AF1%2012%2C%20AF2%2010?unique=1388fc1)
|
Type number: 13.800-6 ESH |
24.19 € | |
![[110713] RIEGLER Angle connector, for hose 8/6 mm, AF1 14, AF2 10](/web/image/product.template/181643/image_128/%5B110713%5D%20RIEGLER%20Angle%20connector%2C%20for%20hose%208-6%20mm%2C%20AF1%2014%2C%20AF2%2010?unique=846c5d2)
|
Type number: 13.800-8 ESH |
25.61 € | |
