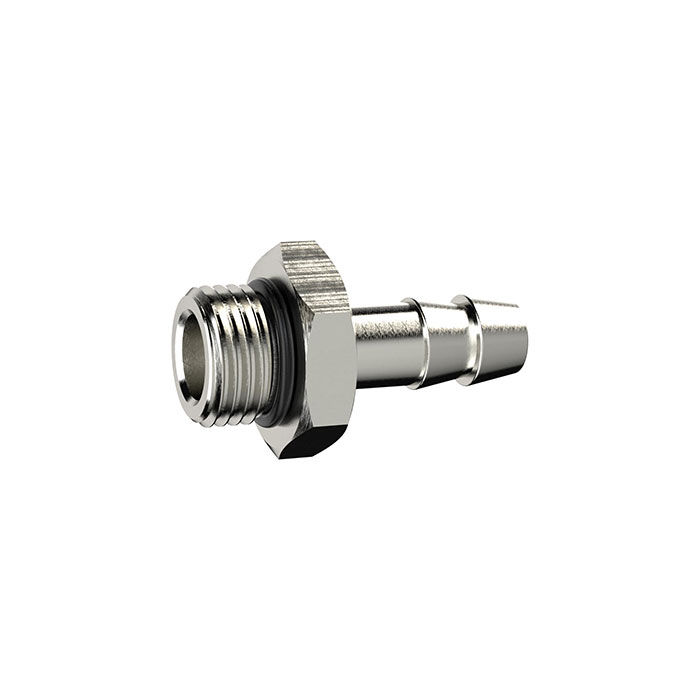

RIEGLER Screw-in hose connector, O-ring, G 1/4, for hose I.D. 9, AF 17
Type number: N239.508-N
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Screw-in hose nozzle, O-ring, G 1/4, for hose LW 9 mm, SW 17, MS nickel-plated, max. working pressure 25 bar, max. operating temp. 80 °C
| Working pressure max. | 25 bar |
| Material | Nickel-plated brass CW614N (electroplated nickel-plated) |
| Operating temperature max. | 80 °C |
| Thread | G 1/4 |
| SW | 17 mm |
| for hose | LW 9 mm |
| L1 | 33 mm |
| L2 | 8 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
